Create an SAP UI5 Task for a Business Process

Let’s start our journey by creating a dedicated Dev Space for our project.

1. Open your SAP Business Application Studio

   • choose the Create Dev Space button



2. Customize your Dev Space

   • enter a name for the Dev Space
   • select SAP Fiori application type and Workflow Module as additional SAP Extension
   • choose the Create Dev Space button



3. Start the Dev Space and wait for it to be on RUNNING status



4. Once the link of the Dev Space is available, click on it to open the SAP Business Application Studio



[OPTION BEGIN[New Project]]

1. Choose the project template

   • open the File Explorer
   • choose the Create Project button
   • select Basic Multitarget Application tile
   • choose the Start button



2. Choose the project template

   • provide a Name
   • choose the Finish button



3. Create an MTA Module: Approuter Configuration

   • in the File Explorer, locate the mta.yaml file and right-click on it
   • select Create MTA Module from Template



4. Choose the Module template

   • select the Approuter Configuration tile
   • choose the Start button



   • provide a Name for the business solution of the project
   • choose the Next button



5. Create a second MTA Module: Workflow UI

   • in the File Explorer, locate the mta.yaml file and right-click on it
   • select Create MTA Module from Template



6. Select the Module Template

   • select the Workflow UI tile
   • choose the Start button



7. Choose the Next button to set the default basic properties



8. Select the UI Type

   • select the Task UI tile
   • choose the Next button



9. Module Customization

   • provide the required module information
   • choose the Finish button

   The application namespace is needed to customize the code.



[OPTION END]

[OPTION BEGIN[Import Project]]

1. Download project ordersmanagement.tar

2. Click on the Menu button and navigate to File > Import Project.



3. Choose the downloaded project ordersmanagement.tar. After importing successfully, it can be viewed in the file explorer in the workspace.



4. Please navigate to Step 4: Build and deploy your application.

[OPTION END]

1. Upgrade the package.json version

   • in the File Explorer, locate and open the package.json file under ../workflow-ui-module/
   • change the version of the "@ui5/cli" value under devDependencies to ^3.0.0



2. Customize your manifest.json file

   • in the File Explorer, locate and open the manifest.json
   • customize it by adding the code bellow (including the comma in the beginning) after the sap.cloud node in the json file. (line 125 to 198)



   JSON Copy

       ,
       "sap.bpa.task": {
           "_version": "1.0.0",
           "outcomes": [
               {
                   "id": "approve",
                   "label": "Approve"
               },
               {
                   "id": "reject",
                   "label": "Reject"
               }
           ],
           "inputs": {
               "$schema": "http://json-schema.org/draft-07/schema",
               "title": "input",
               "type": "object",
               "required": [
                   "customerName",
                   "orderNumber",
                   "orderAmount",
                   "orderDate",
                   "expectedDeliveryDate",
                   "shippingCountry"
               ],
               "properties": {
                   "customerName": {
                       "type": "string",
                       "title": "Customer Name",
                       "description": "Customer Name"
                   },
                   "orderNumber": {
                       "type": "string",
                       "title": "Order Number",
                       "description": "Order Number"
                   },
                   "orderAmount": {
                       "type": "number",
                       "title": "Order Amount",
                       "description": "Order Amount"
                   },
                   "orderDate": {
                       "type": "string",
                       "title": "Order Date",
                       "description": "Order Date"
                   },
                   "expectedDeliveryDate": {
                       "type": "string",
                       "title": "Expected Delivery Date",
                       "description": "End Date of the Vacation"
                   },
                   "shippingCountry": {
                       "type": "string",
                       "title": "Shipping Country",
                       "description": "Shipping Country"
                   }
               }
           },
           "outputs": {
               "$schema": "http://json-schema.org/draft-07/schema",
               "title": "output",
               "type": "object",
               "required": [
                   "comment"
               ],
               "properties": {
                   "comment": {
                       "type": "string",
                       "title": "Comment",
                       "description": "Comment to buyer"
                   }
               }
           },
           "category": "approval"
       }

   Show all 75 lines Show less

   For the sales order approval use case, you need the following sales order details as inputs and a comment from the approver as output of the task.

3. Customize your xs-app.json file

   - in the File Explorer, locate and open the *xs-app.json* in your workflow-ui-module folder
   - it must be the *first entry of routes entry*


   JSON Copy


     {
     "source": "^/api/(.*)$",
     "target": "$1",
     "service": "com.sap.spa.processautomation",
     "endpoint": "api",
     "csrfProtection": true,
     "authenticationType": "xsuaa"
    },



4. Customize your App.view.xml file

   • in the File Explorer, under ../webapp/view/ folder, locate and open the App.view.xml file
   • customize it with your needed page layout



   In the sales order approval use case, you need the following sales order details in the App.view.xml. Please, replace the occurrences of <APPLICATION NAMESPACE> with your application namespace.

   XML Copy

   <mvc:View controllerName="<APPLICATION NAMESPACE>.workflowuimodule.controller.App"
   xmlns:html="http://www.w3.org/1999/xhtml"
   xmlns:mvc="sap.ui.core.mvc" displayBlock="true"
   xmlns:l="sap.ui.layout"
   xmlns:f="sap.ui.layout.form"
   xmlns:core="sap.ui.core"
   xmlns:form="sap.ui.layout.form"
   xmlns:smartForm="sap.ui.comp.smartform"
   xmlns:smartField="sap.ui.comp.smartfield"
   xmlns="sap.m">
   <App id="app">
       <Page id = "scroll">
           <content>
           <form:SimpleForm id="request-information-form" editable="false" layout="ResponsiveGridLayout" singleContainerFullSize="false">
               <form:content>
                   <core:Title id="vacation-timerange-heading" text="A new order has been received. Please review and confirm whether the requirements can be met or not."/>
                   <Label id="customer-name-label" text="Customer Name" labelFor="customer-name-field"/>
                   <Input id="customer-name-field" value="{context>/customerName}" editable="false"/>
                   <Label id="order-number-label" text="Order Number" labelFor="order-number-field"/>
                   <Input id="order-number-field" value="{context>/orderNumber}" editable="false"/>
                   <Label id="order-amount-label" text="Order Amount" labelFor="order-amount-field"/>
                   <Input id="order-amount-field" value="{context>/orderAmount}" editable="false"/>
                   <Label id="order-date-label" text="Order Date" labelFor="order-date-field"/>
                   <Input id="order-date-field" value="{context>/orderDate}" editable="false"/>
                   <Label id="shipping-country-label" text="Shipping Country" labelFor="shipping-country-field"/>
                   <Input id="shipping-country-field" value="{context>/shippingCountry}" editable="false"/>
                   <Label id="expected-delivery-date-label" text="Expected Delivery Date" labelFor="expected-delivery-date-field"/>
                   <Input id="expected-delivery-date-field" value="{context>/expectedDeliveryDate}" editable="false"/>
               </form:content>
           </form:SimpleForm>

           <html:hr></html:hr>
           <FlexBox id="comment-wrapper" direction="Column" class="sapUiSmallMargin" width="auto">
               <CheckBox id="Ack" text="I acknowledge that we have received your order and will process it based on the availability" />
               <Label id="comment-label" text="Comment" />
               <TextArea id="comment-field" showExceededText="true" maxLength="1000" width="100%" height="120px" value="{context>/comment}"/>
           </FlexBox>
           </content>
       </Page>
   </App>

   Show all 40 lines Show less

</mvc:View> ```

5. Customize your Component.js file

   • in the File Explorer, under ../webapp/ folder, create or modify the Component.js file with the following code



   Please, replace the occurrences of <APPLICATION NAMESPACE> with your application namespace.

   JavaScript Copy

   sap.ui.define(
       [
           "sap/ui/core/UIComponent",
           "sap/ui/Device",
           "<APPLICATION NAMESPACE>/workflowuimodule/model/models",
       ],
       function (UIComponent, Device, models) {
           "use strict";

           return UIComponent.extend(
           "<APPLICATION NAMESPACE>.workflowuimodule.Component",
           {
               metadata: {
               manifest: "json",
               },

               /**
               * The component is initialized by UI5 automatically during the startup of the app and calls the init method once.
               * @public
               * @override
               */
               init: function () {
               // call the base component's init function
               UIComponent.prototype.init.apply(this, arguments);

               // enable routing
               this.getRouter().initialize();

               // set the device model
               this.setModel(models.createDeviceModel(), "device");

               this.setTaskModels();

               const rejectOutcomeId = "reject";
               this.getInboxAPI().addAction(
                   {
                   action: rejectOutcomeId,
                   label: "Reject",
                   type: "reject",
                   },
                   function () {
                   this.completeTask(false, rejectOutcomeId);
                   },
                   this
               );
               const approveOutcomeId = "approve";
               this.getInboxAPI().addAction(
                   {
                   action: approveOutcomeId,
                   label: "Approve",
                   type: "accept",
                   },
                   function () {
                   this.completeTask(true, approveOutcomeId);
                   },
                   this
               );
               },

               setTaskModels: function () {
               // set the task model
               var startupParameters = this.getComponentData().startupParameters;
               this.setModel(startupParameters.taskModel, "task");

               // set the task context model
               var taskContextModel = new sap.ui.model.json.JSONModel(
                   this._getTaskInstancesBaseURL() + "/context"
               );
               this.setModel(taskContextModel, "context");
               },

               _getTaskInstancesBaseURL: function () {
               return (
                   this._getWorkflowRuntimeBaseURL() +
                   "/task-instances/" +
                   this.getTaskInstanceID()
               );
               },

               _getWorkflowRuntimeBaseURL: function () {
                 var ui5CloudService = this.getManifestEntry("/sap.cloud/service").replaceAll(".", "");
                 var ui5ApplicationName = this.getManifestEntry("/sap.app/id").replaceAll(".", "");
                 var appPath = `${ui5CloudService}.${ui5ApplicationName}`;
                 return `/${appPath}/api/public/workflow/rest/v1`

               },

               getTaskInstanceID: function () {
               return this.getModel("task").getData().InstanceID;
               },

               getInboxAPI: function () {
               var startupParameters = this.getComponentData().startupParameters;
               return startupParameters.inboxAPI;
               },

               completeTask: function (approvalStatus, outcomeId) {
               this.getModel("context").setProperty("/approved", approvalStatus);
               this._patchTaskInstance(outcomeId);
               },

               _patchTaskInstance: function (outcomeId) {
               const context = this.getModel("context").getData();
               var data = {
                   status: "COMPLETED",
                   context: {...context, comment: context.comment || ''},
                   decision: outcomeId
               };

               jQuery.ajax({
                   url: `${this._getTaskInstancesBaseURL()}`,
                   method: "PATCH",
                   contentType: "application/json",
                   async: true,
                   data: JSON.stringify(data),
                   headers: {
                   "X-CSRF-Token": this._fetchToken(),
                   },
               }).done(() => {
                   this._refreshTaskList();
               })
               },

               _fetchToken: function () {
               var fetchedToken;

               jQuery.ajax({
                   url: this._getWorkflowRuntimeBaseURL() + "/xsrf-token",
                   method: "GET",
                   async: false,
                   headers: {
                   "X-CSRF-Token": "Fetch",
                   },
                   success(result, xhr, data) {
                   fetchedToken = data.getResponseHeader("X-CSRF-Token");
                   },
               });
               return fetchedToken;
               },

               _refreshTaskList: function () {
               this.getInboxAPI().updateTask("NA", this.getTaskInstanceID());
               },
           }
           );
       }
   );

   Show all 147 lines Show less

6. Last check in the mta.yaml file

   In the File Explorer, under your project main folder, check mta.yaml file with the following code and make sure that the node under modules:parameters:content is named subaccount instead of instance



   The node under resources:parameters:config:init_data is named subaccount instead of instance

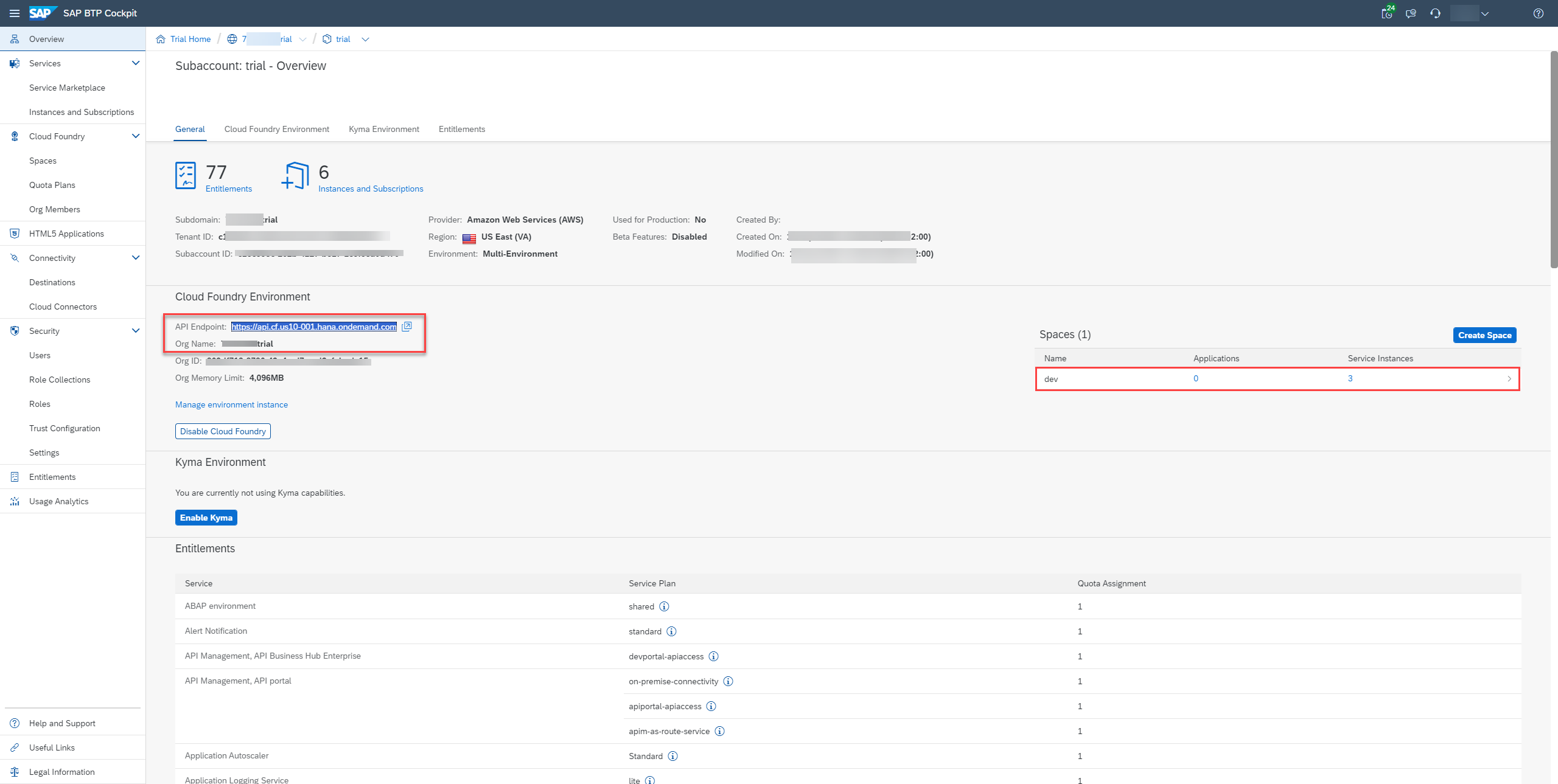

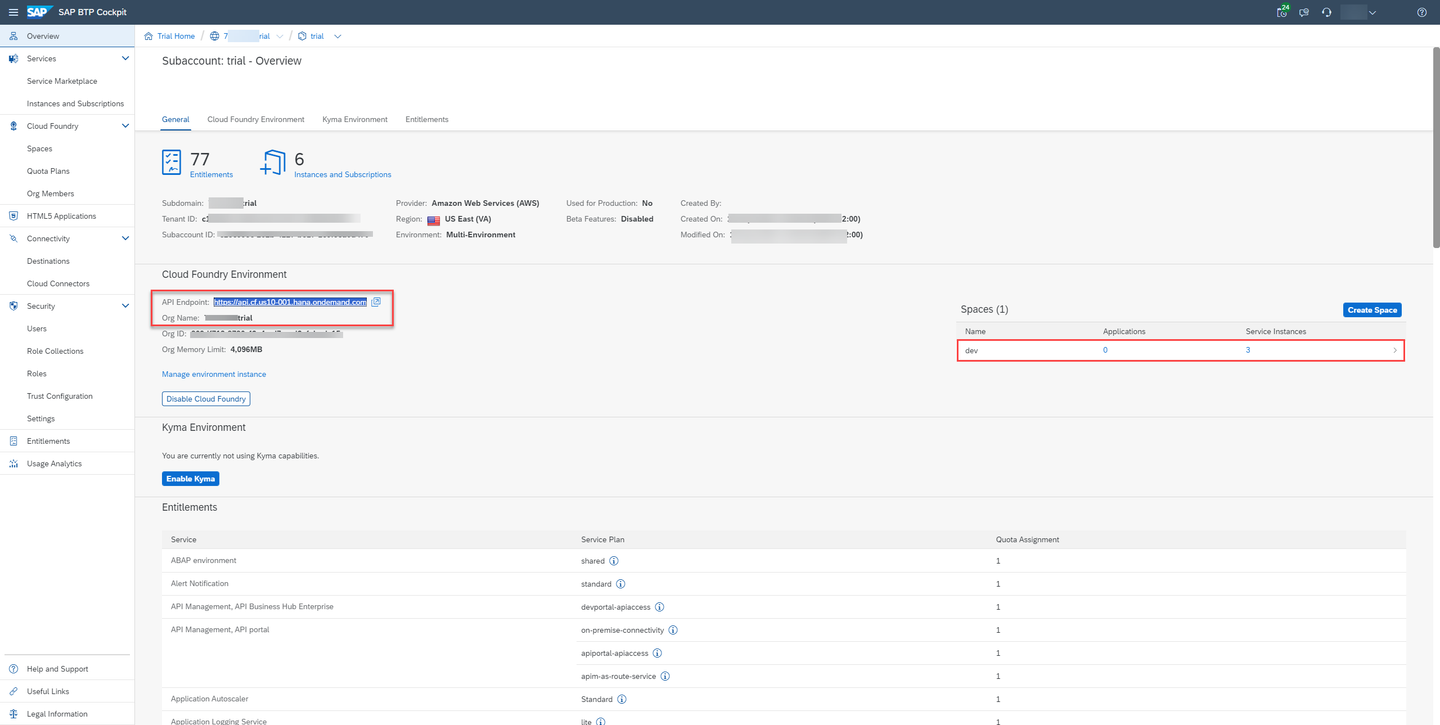

1. Open your Subaccount Overview in SAP BTP Cockpit

> You will need some information about **API Endpoint**, **Org** and **Space** that are visible in the **BTP Cockpit**, under **Subaccount overview**.

![Process](https://raw.githubusercontent.com/sap-tutorials/sap-build-process-automation/main/tutorials/spa-create-sapui5-task-orderapproval/013a.png)

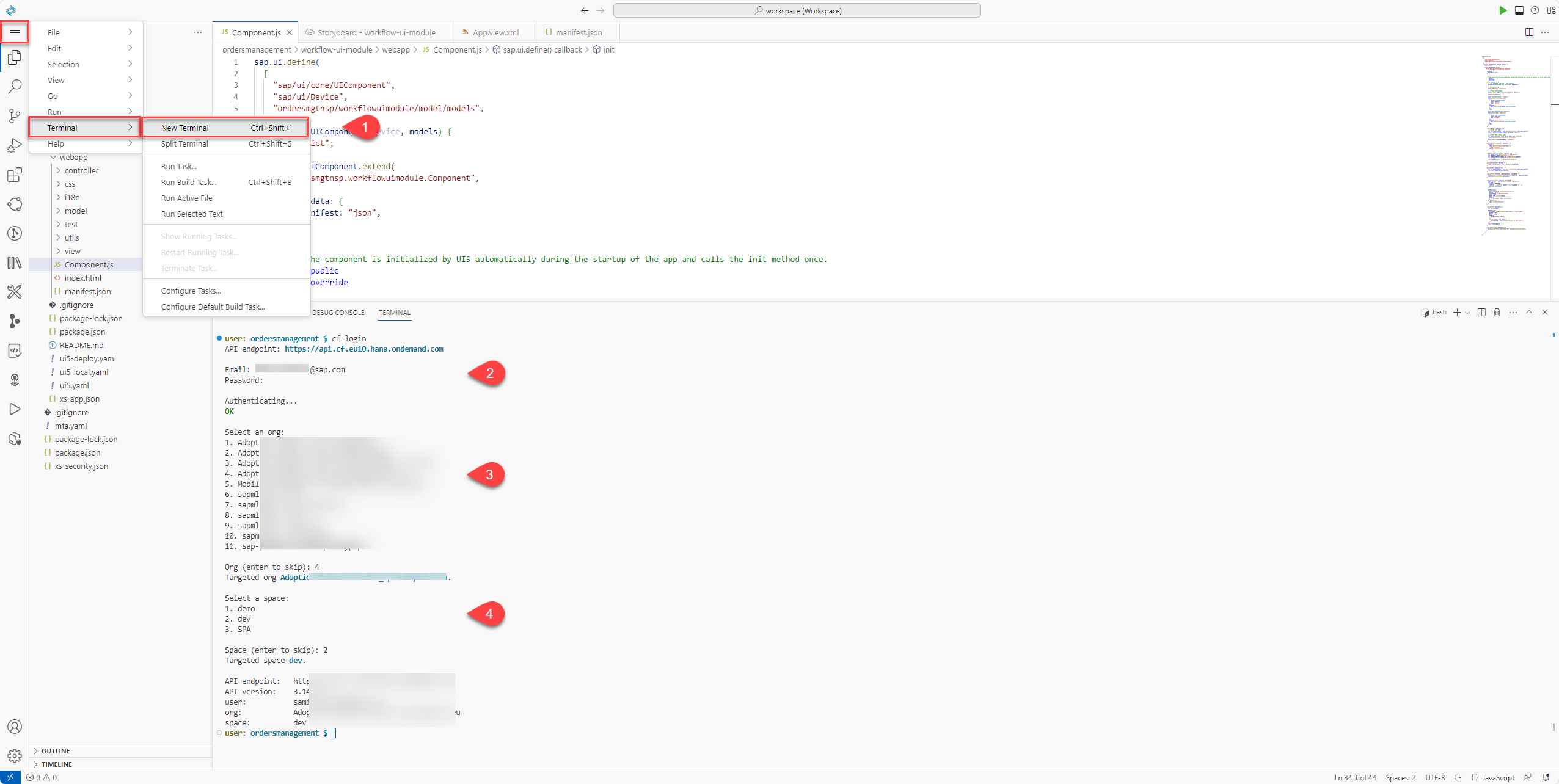

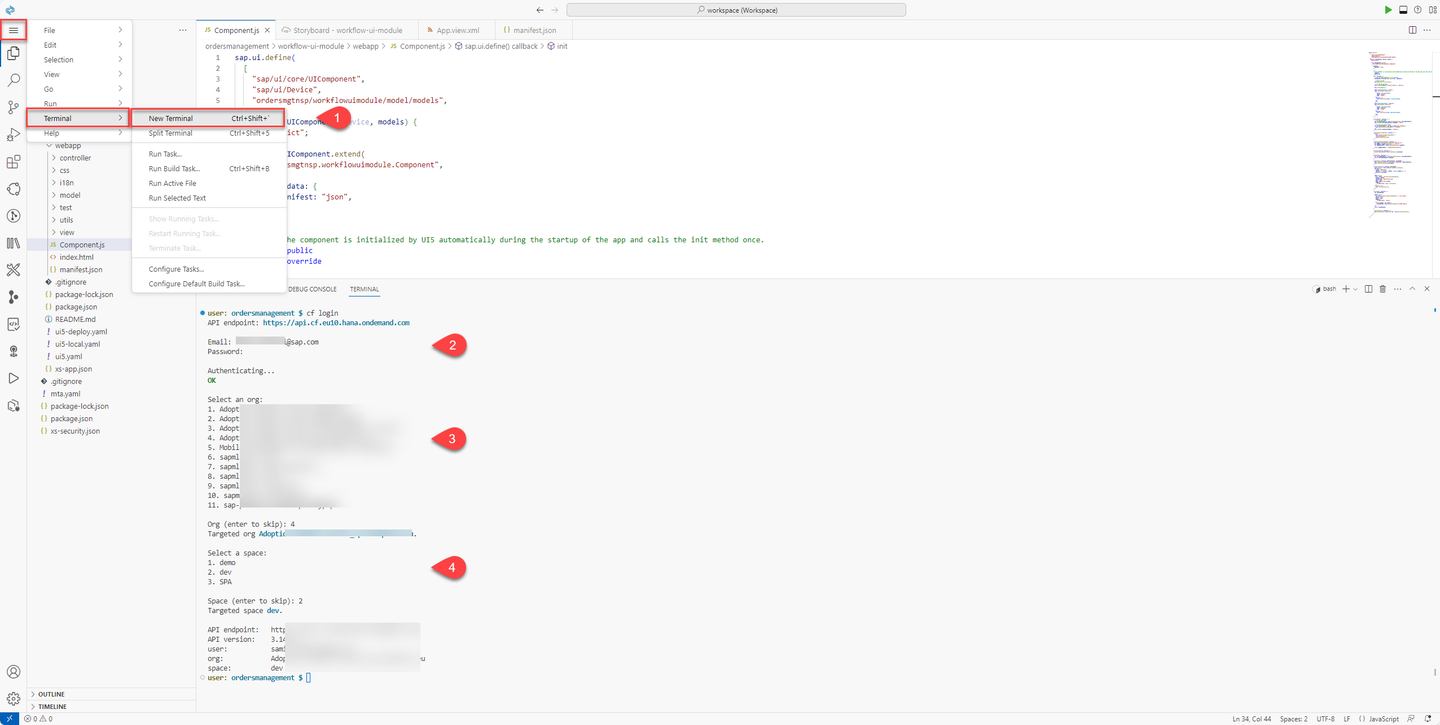

2. Start a new Terminal and login to cloud foundry

- from the menu, select **Terminal --> New Terminal**
- connect to your account using **cf login** command. (In case of 2FA, you may need to append the One-time password code to your password)
- select the **Org** if asked
- select the **Space** if asked

![Process](https://raw.githubusercontent.com/sap-tutorials/sap-build-process-automation/main/tutorials/spa-create-sapui5-task-orderapproval/013.png)

3. Build MTA Project

   • in the File Explorer, locate the mta.yaml file and right-click on it
   • select Build MTA Project



4. Build the application

   IMPORTANT: Skip this step if you have imported the project. Your project will run into an error as the application is already included in the mtar file.

   Use the npm run build command to build your application.



5. Deploy the application

   Use the npm run deploy command to deploy your application.

   You may use the command cf deploy mta_archives/ordersmanagement_0.0.1.mtar replacing the mtar file name with your generated one.



6. Once deployed, your application should be visible in the BTP Cockpit under HTML5 Applications if you’re subscribed to SAP Build Work Zone.



   You have successfully completed the tutorial, creating and deploying an SAP UI5 application for order approval business processes.
