Determine Recipients by Message Categories

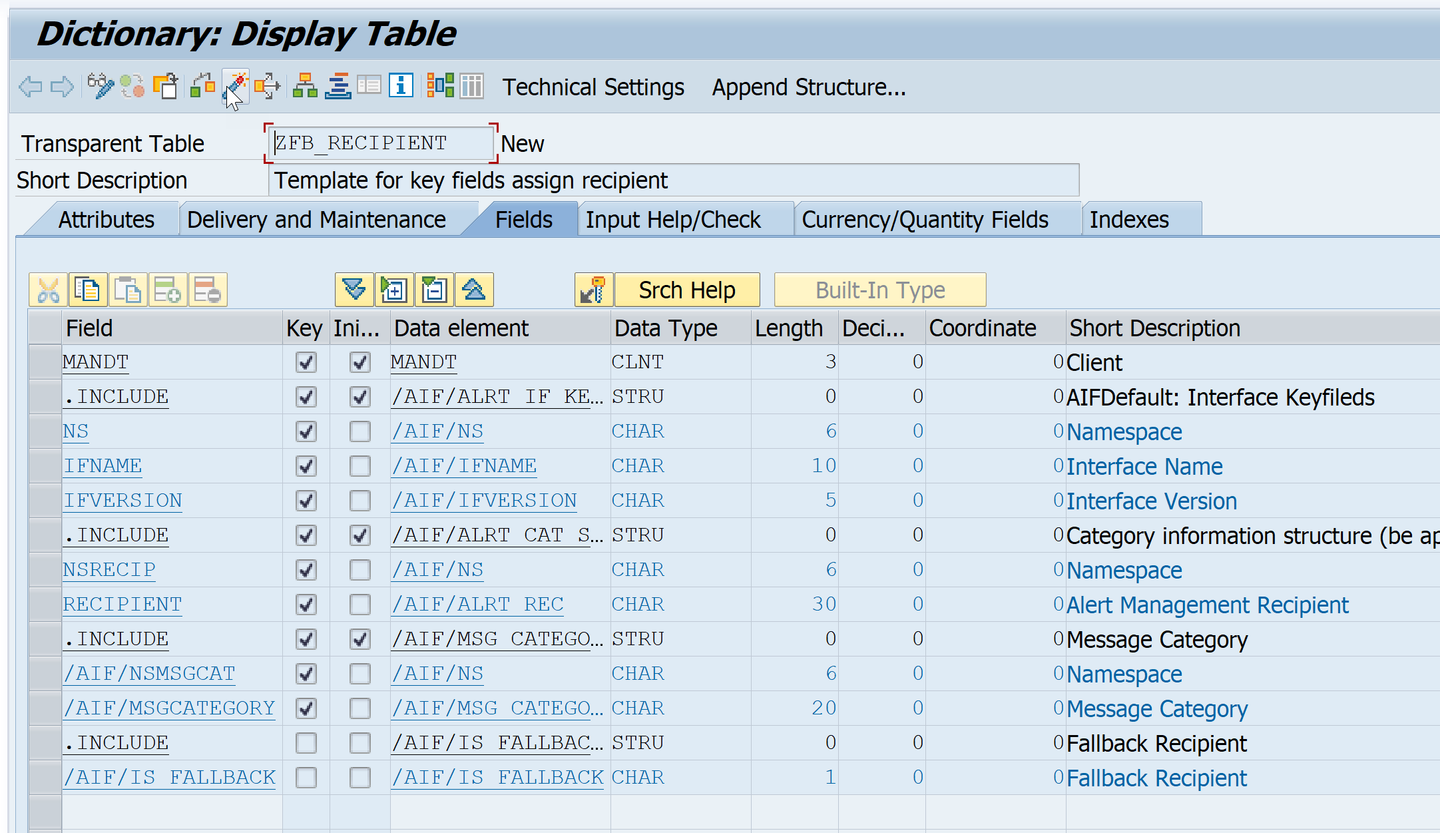

You need to create a recipient assignment table by copying the template table /AIF/RECA_TMPL.

1. Run transaction code SE11, enter /AIF/RECA_TMPL in the field Database table, right-click it and select Copy….

2. Enter the name ZFB_RECIPIENT for the new table and select Continue. When prompted, enter the package name you created in the previous tutorial.

3. Once created, choose Dsiplay.

4. Activate your table.



You need to create different recipients for different error categories.

1. Go to Customizing (transaction code /AIF/CUST) and navigate to SAP Application Interface Framework > Error Handling > Define Namespace-Specific Features. Enter or select your namespace DEMO_1 and select Continue.

2. In the menu on the left, navigate to Define Recipients by double-clicking it. Select New Entries, and enter the following recipients:

   Recipient for Alert	Alert Recipient Description
   ZFB_RECIPIENT_AGENCY	Recipient for Agency related errors
   ZFB_RECIPIENT_FLIGHT	Recipient for Flight related errors
   ZFB_RECIPIENT_PASS	Recipient for Passenger related errors
   ZFB_RECIPIENT_DEFAULT	Default recipient

3. Save your changes.



You need to assign the beforehand created recipient assignment table as well as the default recipient to your interface.

You maintain a default recipient to make sure that no message slips through without anybody being notified. If the system cannot find any other recipient that receives a notification, a notification is always sent to the default recipient regardless of the alert settings.

1. While in Customizing (transaction code /AIF/CUST), navigate to SAP Application Interface Framework > Error Handling > Define Namespace-Specific Features. Enter your namespace DEMO_1 and select Continue.

2. Double-click the node Configure Alerts, and select New Entries to create a new entry. Enter your interface name FLBOOK and version 1, and maintain the parameters as follows:

   Field	Value
   Rec Assgn Table	ZFB_RECIPIENT
   Namespace	DEMO_1
   Default Recipient	ZFB_RECIPIENT_DEFAULT

3. Save your changes.



You need to create message categories corresponding to your recipients.

1. Run transaction code /AIF/MSG_CAT_DEF, enter your namespace DEMO_1 and select Apply.

2. Select New Entries, and enter the following message categories:

   Message Category	Msg. Cat. Desc
   ERRORS_AGENCY	Agency related errors
   ERRORS_FLIGHT	Flight related errors
   ERRORS_PASS	Passenger related errors

3. Save your changes.



You need to group log messages in the beforehand created message categories.

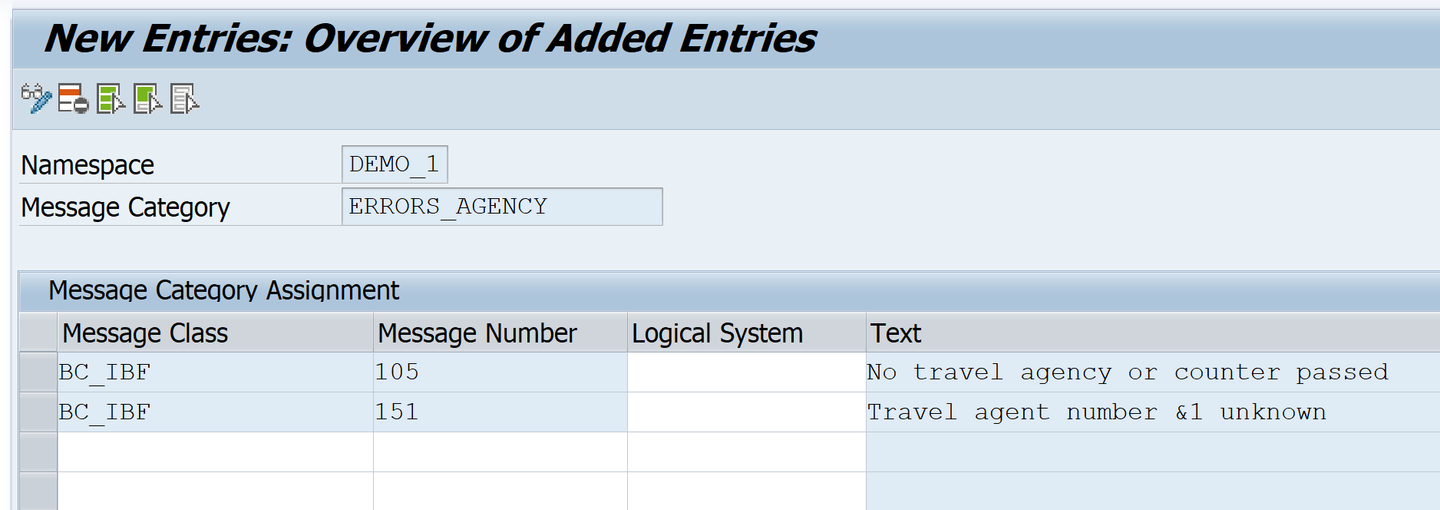

1. Run transaction code /AIF/MSG_CAT_ASGN, enter your namespace DEMO_1 and the first beforehand created message category ERRORS_AGENCY, then select Apply.

2. Select New Entries, and enter the following message categories:

   Message Class	Message Number
   BC_IBF	105
   BC_IBF	151

3. Save your changes.



4. Rerun transaction code /AIF/MSG_CAT_ASGN, enter your namespace DEMO_1 and the next message category ERRORS_FLIGHT, then select Apply.

5. Select New Entries, and enter the following message categories:

   Message Class	Message Number
   BC_IBF	055
   BC_IBF	057
   BC_IBF	107

6. Save your changes.



7. Rerun transaction code /AIF/MSG_CAT_ASGN, enter your namespace DEMO_1 and the next message category ERRORS_PASS, then select Apply.

8. Select New Entries, and enter the following message categories:

   Message Class	Message Number
   BC_IBF	106
   BC_IBF	150

9. Save your changes.



Next, you need to maintain the recipient assignment table to map the message categories to your recipients.

As a prerequisite to add entries to the recipient assignment table, the Data Browser/Table View Editing table setting should be set to Display/Maintenance Allowed. Since we copied the recipient assignment table from a template table, this should automatically apply. Otherwise, ensure to change the setting accordingly.

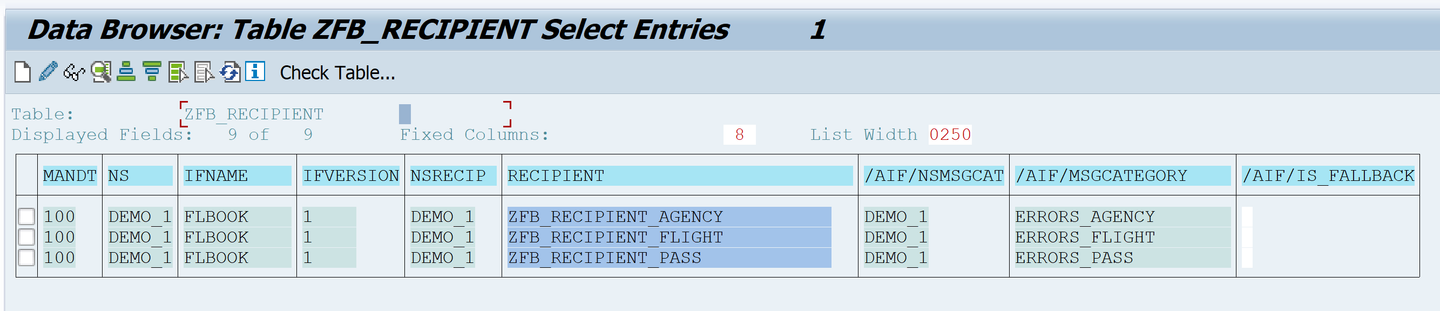

1. Run transaction code SE16, enter ZFB_RECIPIENT in the field Table Name, and select Create Entries.

2. Add the following entries to the table:

   NS	IFNAME	IFVERSION	NSRECIP	RECIPIENT	/AIF/NSMSGCAT	/AIF/MSGCATEGORY	/AIF/IS_FALLBACK
   DEMO_1	FLBOOK	1	DEMO_1	ZFB_RECIPIENT_AGENCY	DEMO_1	ERRORS_AGENCY
   DEMO_1	FLBOOK	1	DEMO_1	ZFB_RECIPIENT_FLIGHT	DEMO_1	ERRORS_FLIGHT
   DEMO_1	FLBOOK	1	DEMO_1	ZFB_RECIPIENT_PASS	DEMO_1	ERRORS_PASS

Optionally, you can add an entry for a fallback recipient by setting the fallback flag (not covered in this tutorial). The fallback recipient would get all messages for error types other than maintained above.

3. Save your changes.



Now the users in charge of monitoring the IDoc must be assigned to the recipients. We assume that you have already created three different users, one for each message category.

1. Go to Customizing (transaction /AIF/CUST) and navigate to SAP Application Interface Framework > System Configuration > Recipients > Assign Recipients. Enter or select your namespace DEMO_1 and the beforehand created recipient ZFB_RECIPIENT_AGENCY, then select Apply.

2. Select New Entries to create a new entry in Assign Users. Enter your user responsible for agency related errors and check the boxes for Include on Overview and Tech. User.

3. Save the new entry.



4. Navigate back, and run through the same steps for the recipients ZFB_RECIPIENT_FLIGHT and ZFB_RECIPIENT_PASS.

Let’s create a couple of sample messages to showcase the customizing changes.

As a prerequisite, you need to generate sample test data. If you haven’t done so far, run through step 17 of the Customize an IDoc Interface with Runtime and Monitoring tutorial. Step 18 of the tutorial describes how to send test data.

Open the Test Tool for IDoc Processing (transaction code WE19). Send in new test messages forcing different kind of processing errors:

• Select an existing flight however maintain an agency that does not exist like agency number 00109345.
• Select an existing flight however maintain no agency nor a counter.
• Select an existing flight however maintain 00000000 as customer number.
• Select an existing flight however maintain a wrong flight class such as X.
• Select an existing flight where the flight date is in the past.
• Select a flight that does not exist.

Now, let’s check the results of your tests in the Monitoring and Error Handling.

1. Log on with one of the users, e.g., the one responsible for agency related errors.

2. Open the Interface Monitor (transaction code /AIF/IFMON). You should see at least one new message.

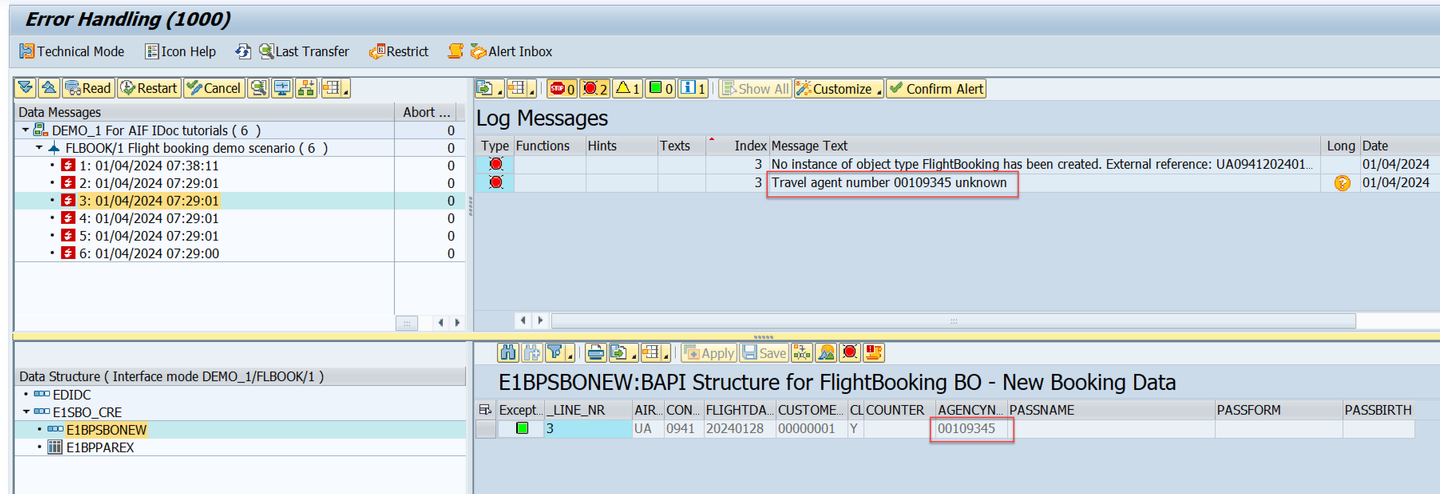

3. When you select the summary line for your interface, you’re forwarded to Monitoring and Error Handling where you can see your selected test messages. You should see agency related errors only, like an unknown agency:

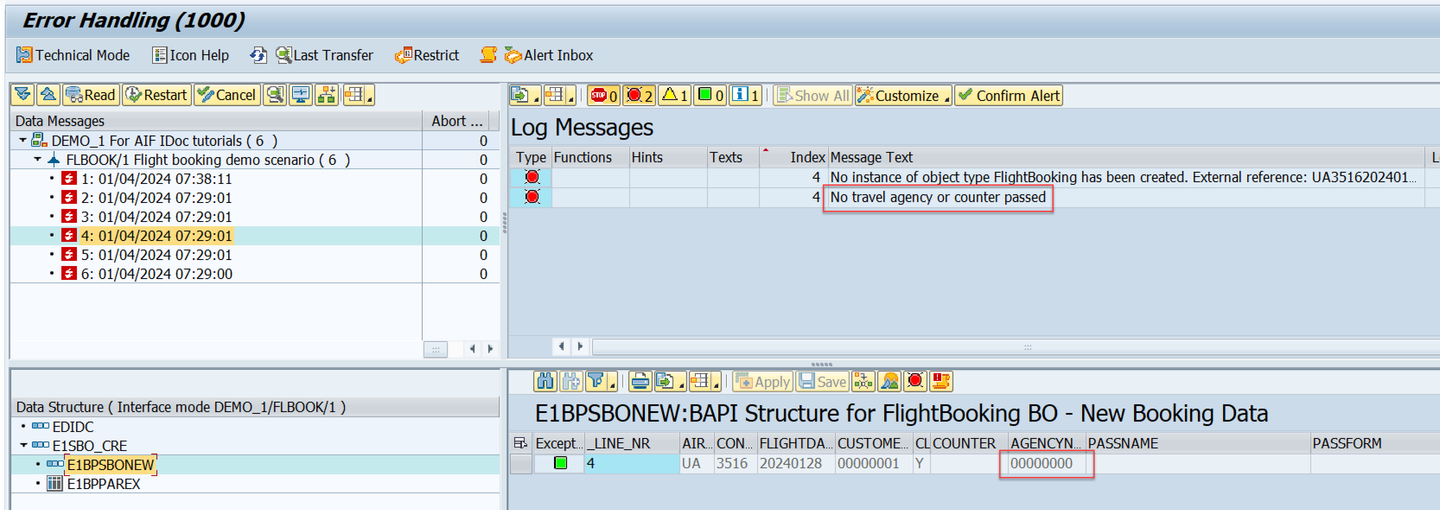

4. If you select another message you may find a message with no agency maintained:



5. Alternatively, if you’ve set up Message Monitoring for Administrators in the SAP Fiori launchpad, you can check the test results there. Here, you see all messages grouped by recipient. See Message Monitoring for Administrators.



Congratulations! You’ve successfully defined message category based recipients.
