Authorize SAP Build Process Automation with Google Authorization SDK Using Google Oauth Client ID

After successful completion of setting the OAuth client ID as mentioned in the pre-requisites, you would have downloaded the OAuth credential file in JSON format and saved it on your local machine.

In this first option, you will learn how to use OAuth Client ID authorization mechanism on Desktop Agent 3.0. Desktop Agent 3.0 has an optimized way to use the OAuth mechanism as summarized.

• The Authentication details can be configured and operated centrally on SAP Build Process Automation Tenants. Hence the bot developer is less concerned about configuration.
• The Authorization can be done directly through the Desktop Agent, so that the tokens can be fetched before running the bot, which makes the bot unattended after the first run.

To configure External Authentication in SAP Build Process Automation, please follow the below steps:

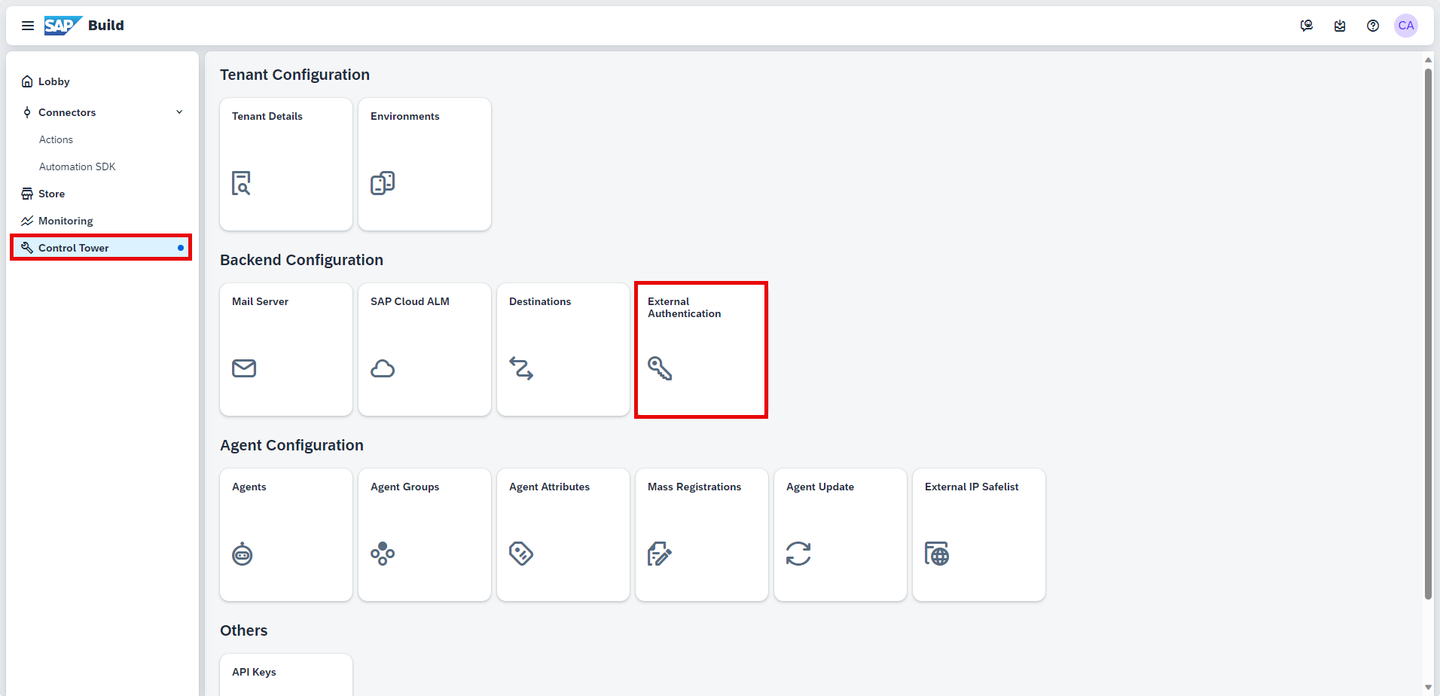

1. From SAP Build Lobby, select Control Tower > External Authentication.



2. Choose Create New Authentication.

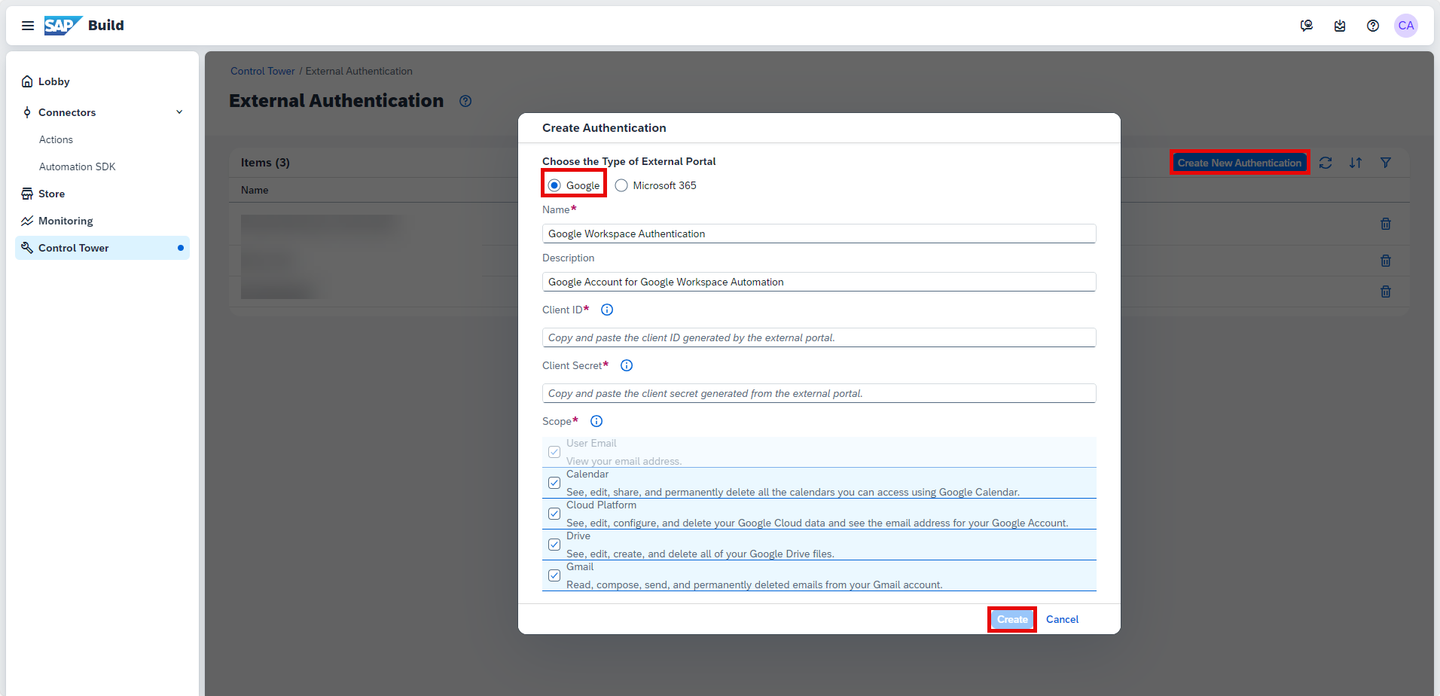

3. In the Create Authentication window, provide the following:

   • Name: Google Workspace Authentication,
   • Description: Google Account for Google Workspace Automation,
   • Client Id: provide the client ID found in the client credential file that you saved in your local machine as mentioned in step 1,
   • Client Secret: provide the client secret found in the client credential file that you saved in your local machine as mentioned in step 1,
   • Scopes: select the scopes needed for your automation. For the current scenario, only Gmail needs to be added as a scope.

   The Scope selection is based on the type of google application being automated.

   If you need to add other scopes, you need to delete the existing scope and create a new one. Hence, let’s add all the scopes which can be used to automate any of your Google Applications.

4. Choose Create.



   This configuration can be identified using the name. As shown in the above diagram, the configuration is stored on the cloud and identified as Google Workspace Authentication.

   Once you have configured the Tenant-Specific configuration, it will be shared to all the connected agent machines. These details will be available on External Authentication section of Desktop Agent 3.0 settings. Here you will have to register by providing the email id and can mark it as default Authentication. You can also undo the registered authentication.

5. To register your External Authentication to the Desktop Agent 3.0. follow these steps:

   • On your Desktop Agent, select Settings > External Authentication,
   • Choose your Google Workspace Authentication,
   • Enter the email address with which you want to connect and click on the save icon,
   • Choose Register.



   While registering, the consent screen will be launched on the browser window automatically, where you will be prompted to enter your password and provide consent for the scopes configured on the SAP Build Process Automation Tenant.



   CAUTION: If you are a free trial user, you will receive the following messages from Google:



   The registration was successful.



Before you can authorize Google applications, you will need to create an automation.

1. From the Lobby, choose Create.

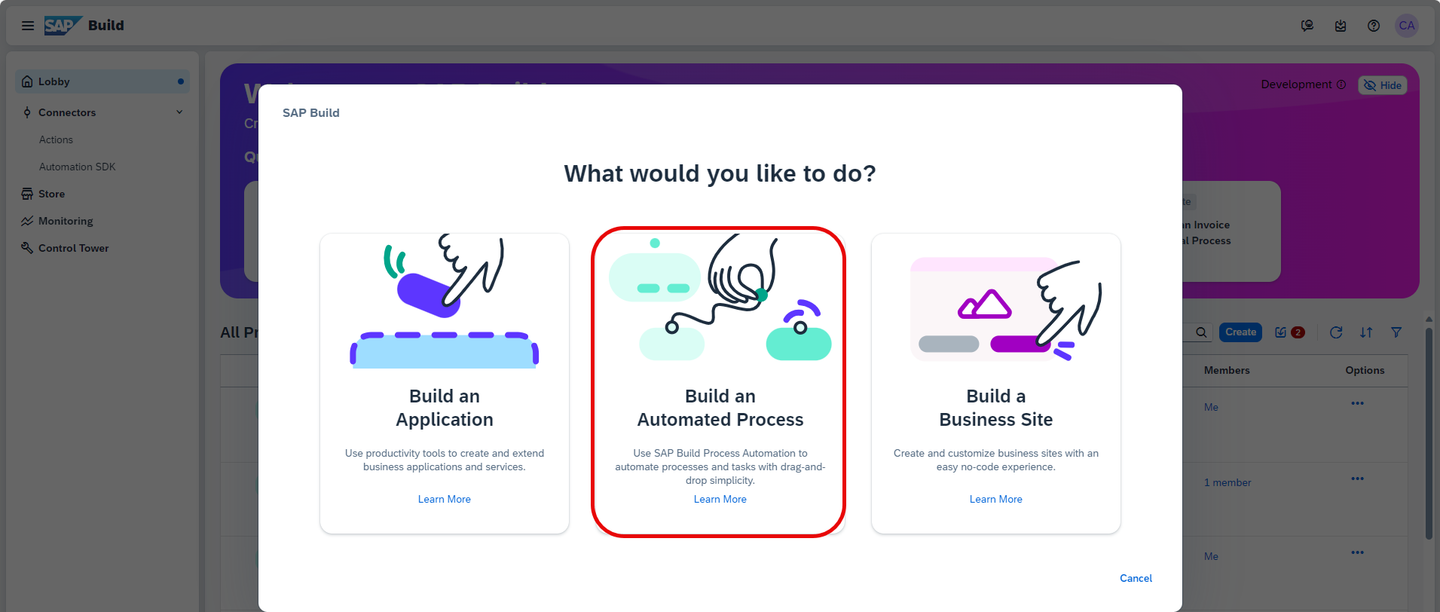

2. In the pop-up, select Build an Automated Process.

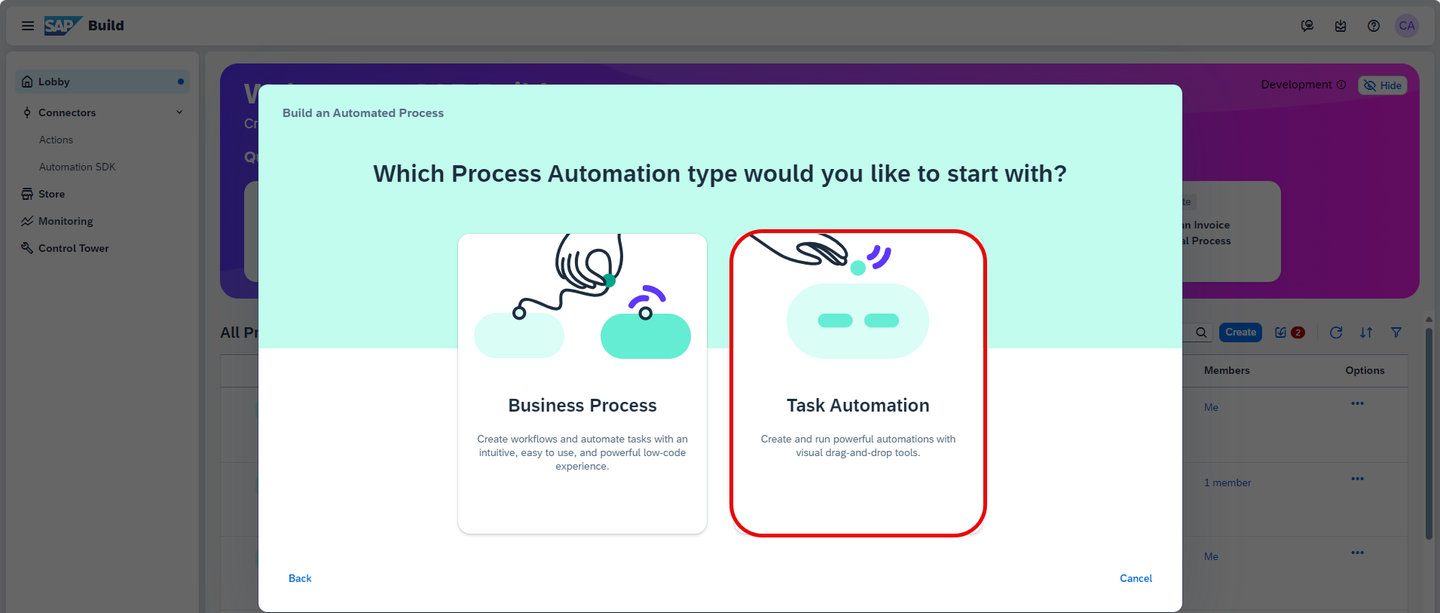

3. Select Task Automation.

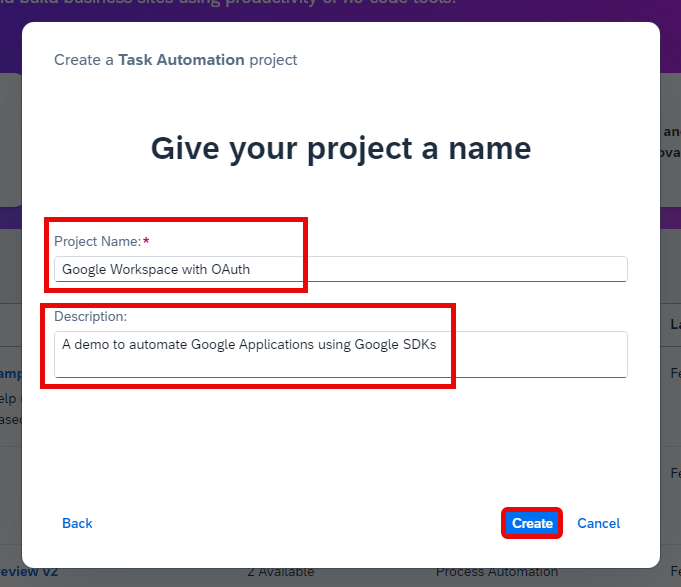

4. In the Create a Task Automation project window, enter the name: Google Workspace with OAuth and as a description: A demo to automate Google Applications using Google SDK.

5. Choose Create.

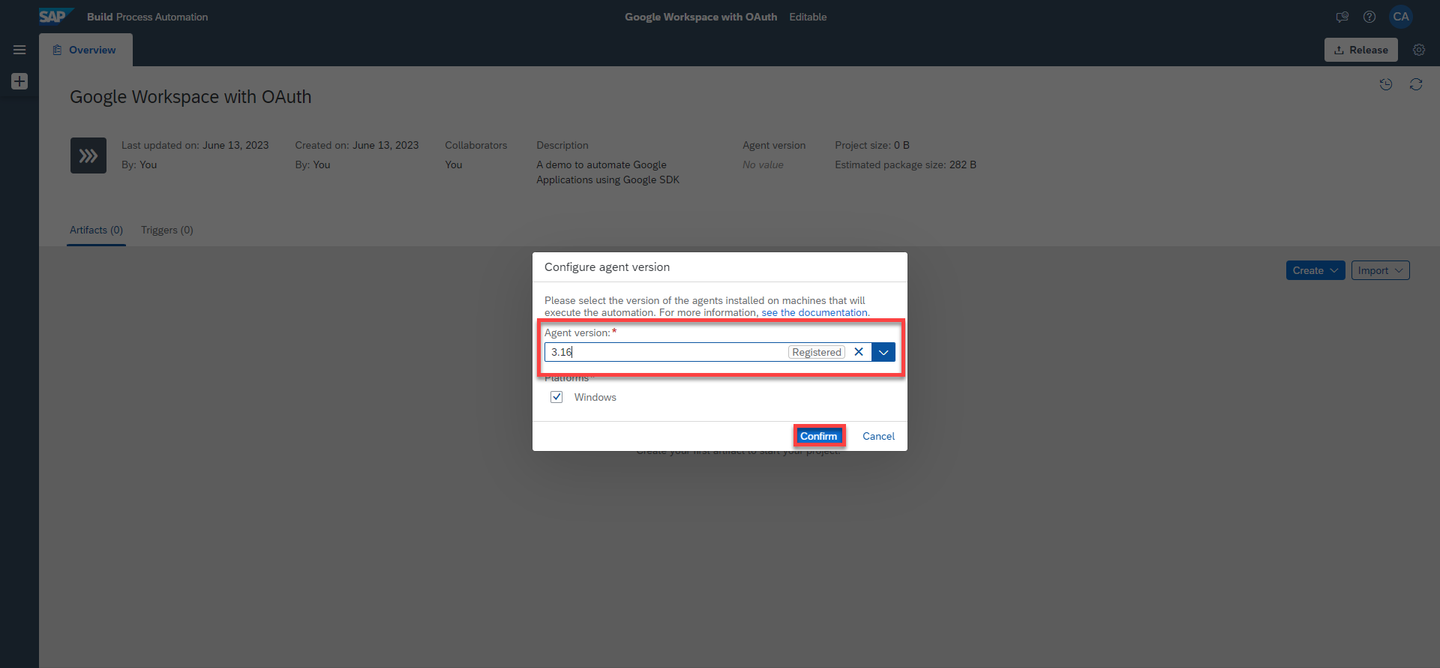

   You will be asked to configure your Desktop Agent version.

6. Select the Desktop Agent version that is registered on your system.

   Please note that Agent version 3.16 or more is required for Google External Authorization.

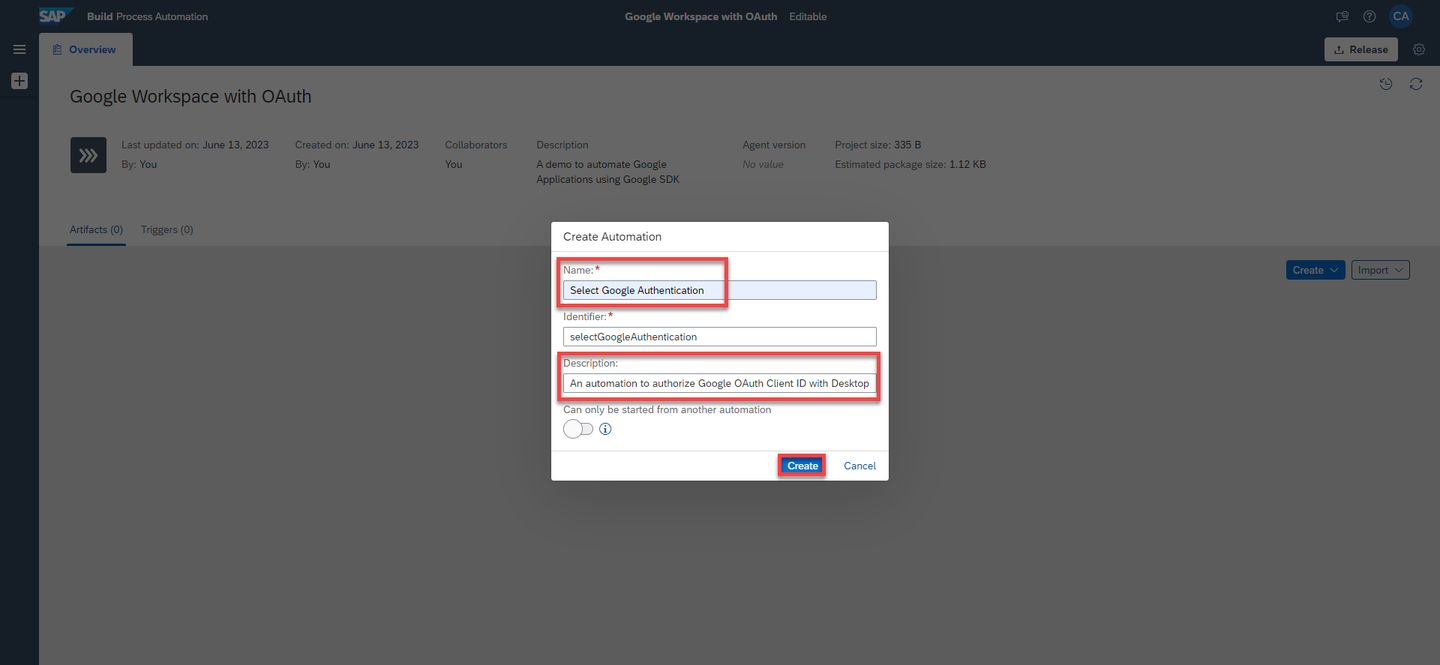

   A pop-up window will prompt you to create an automation.

7. In the name field enter Select Google Authentication.

8. In the description field enter An automation to authorize Google OAuth Client ID with Desktop Agent 3.0.

9. Choose Create.



   A new automation named Select Google Authentication will be successfully created. You will be navigated to the automation editor where you can start building your automation.



The Google Authorization SDK is a collection of activities allowing you to acquire authorization with Google to perform activities in the Google Workspace and the Google Document AI SDK. It is mandatory for authorizing SAP Build Process Automation to Google Applications. It contains activities to support authorization mechanisms such as Service Account and OAuth.

1. Select Settings.

2. In the Project Properties window, select Dependencies.

   In the Manage Dependencies section, you can see that the Core and Excel SDK were added automatically when the automation was created.

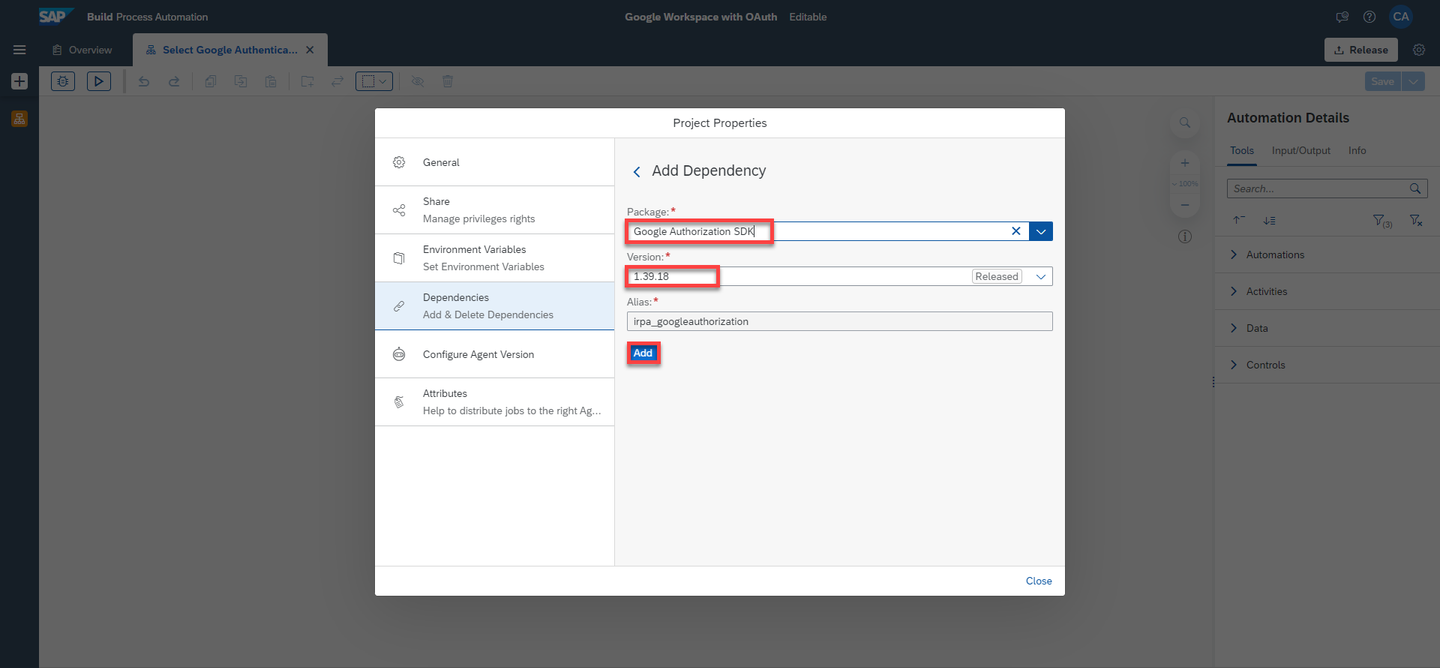

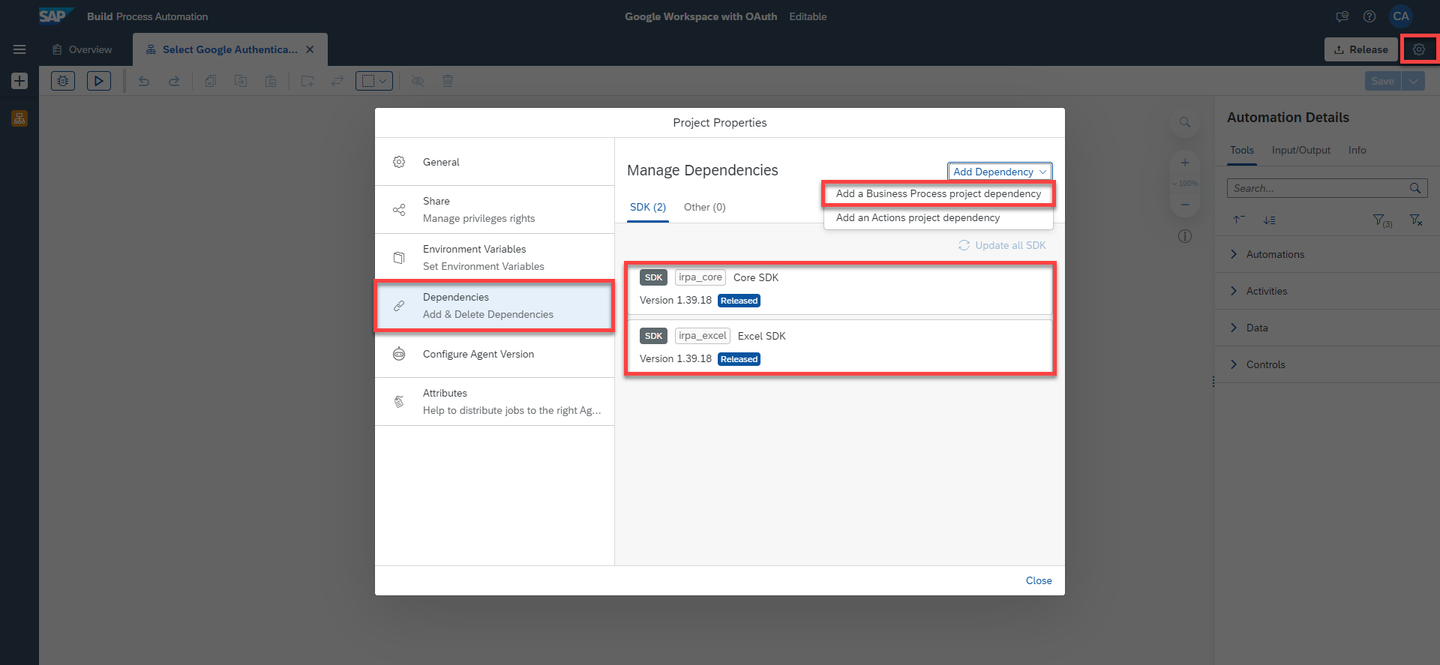

3. Choose Add Dependency and select Add a Business Process project dependency.



4. Under Package, select Google Authorization SDK and choose version 1.38 or higher.

5. Choose Add.

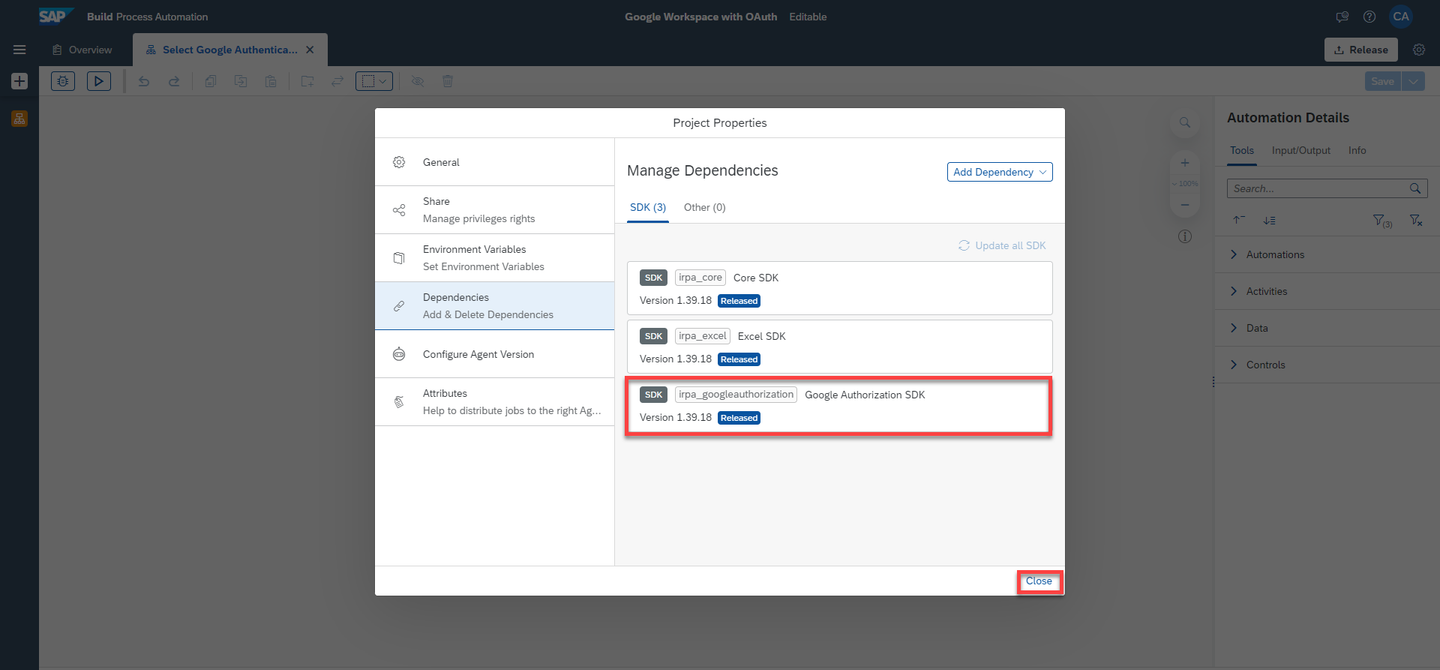

   The Google Authorization SDK has been added successfully.

6. You may close the Project Properties window.



7. In the Automation Details side panel, under Tools, search for Google.

   The Google Authorization activities will be displayed.



   Now you may use the Select Google Authentication activity for authorization.

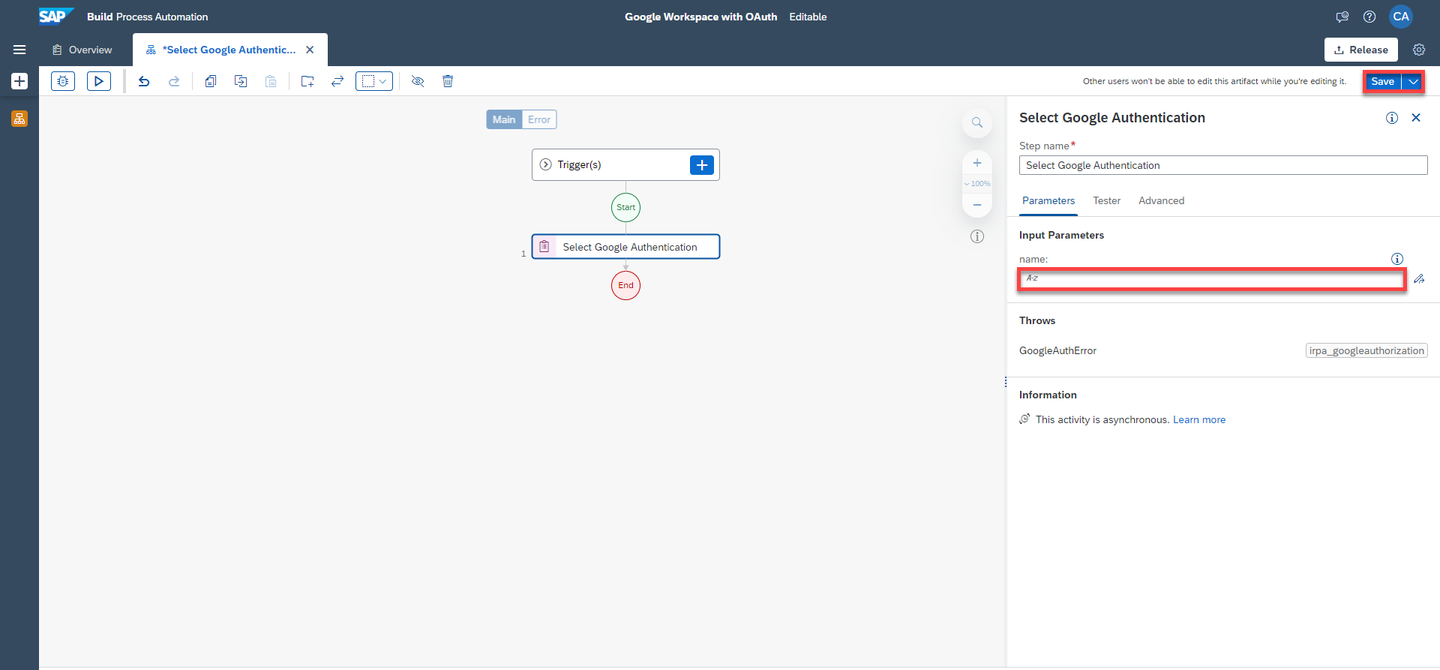

1. Search for the Select Google Authentication activity and drag and drop it into the workflow.



   Here the only parameter required is name, in our case it is Google Workspace Authentication as configured on the SAP Build Process Automation Tenant.



   If the parameter is not provided, the default authentication will be used. Once the execution of the activity is successful, the bot is authorized to execute any subsequent google activities.

2. Save your work.

   CAUTION: This activity works only for users who have installed Desktop Agent 3.

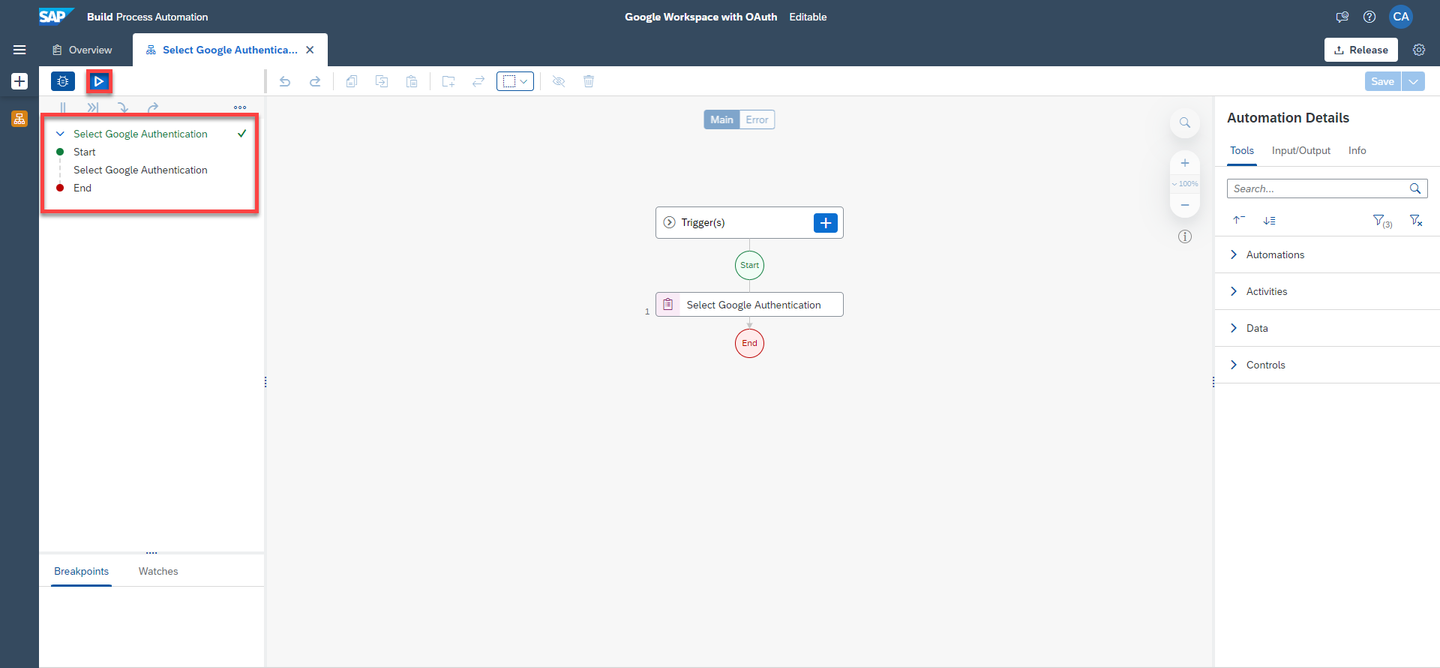

3. You may test if the Google Authentication has been set up correctly.



You have added the Google Authorization SDK to authorize SAP Build Process Automation to automate Google Applications, now you will need to add Google Workspace SDK to use and automate Google services.

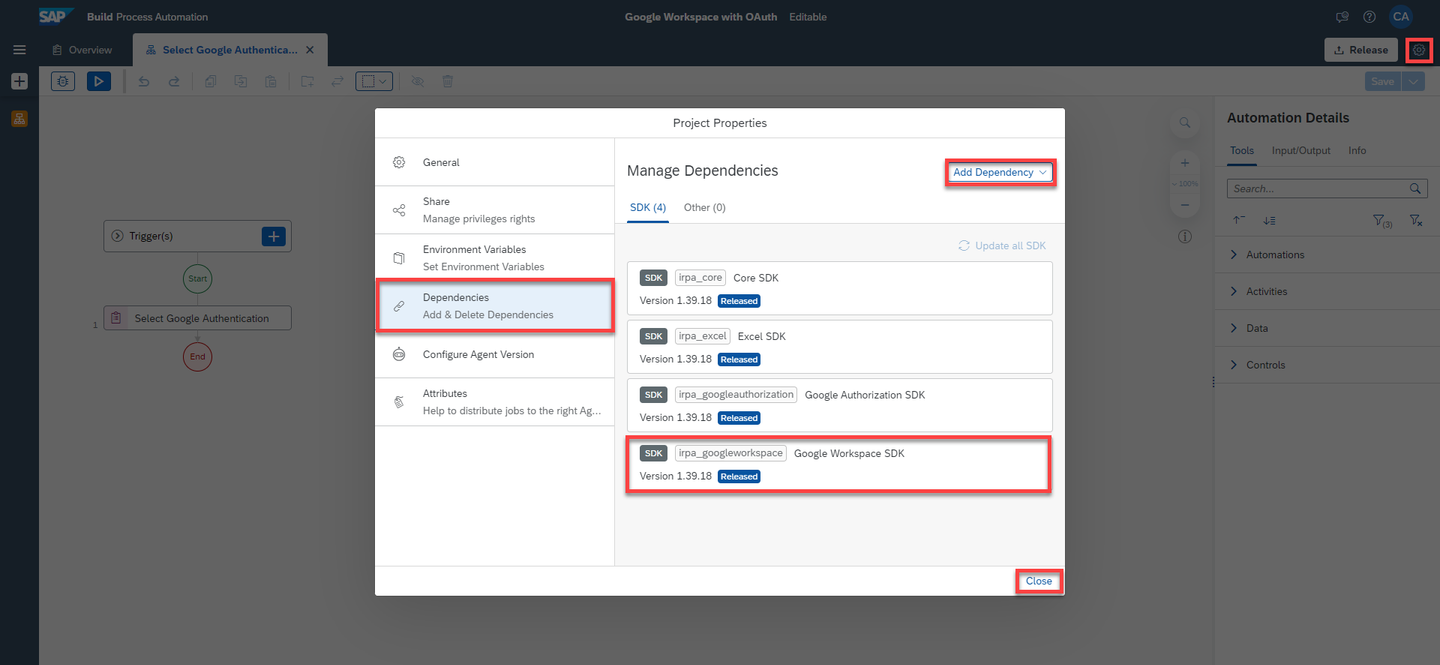

1. From the automation editor, navigate to Settings.

2. Select Dependencies and choose Add Dependency and Add a Business Process project dependency.

3. From the Package drop down, select Google Workspace SDK, choose a version of 1.38 and higher and Add.

4. The dependency is successfully added. You may close the Project Properties window.



5. You may search for google in the search bar and notice all activities available for Gmail, Google Docs, Google Sheets, Google Slides, Google Drive, Google Calendar.



Environment Variables allow you to reuse certain information for a given environment. You use environment variables to pass parameters to automations. In this case, you will need to maintain an environment variable that will contain the email address of the recipient of the email.

1. Select Settings.

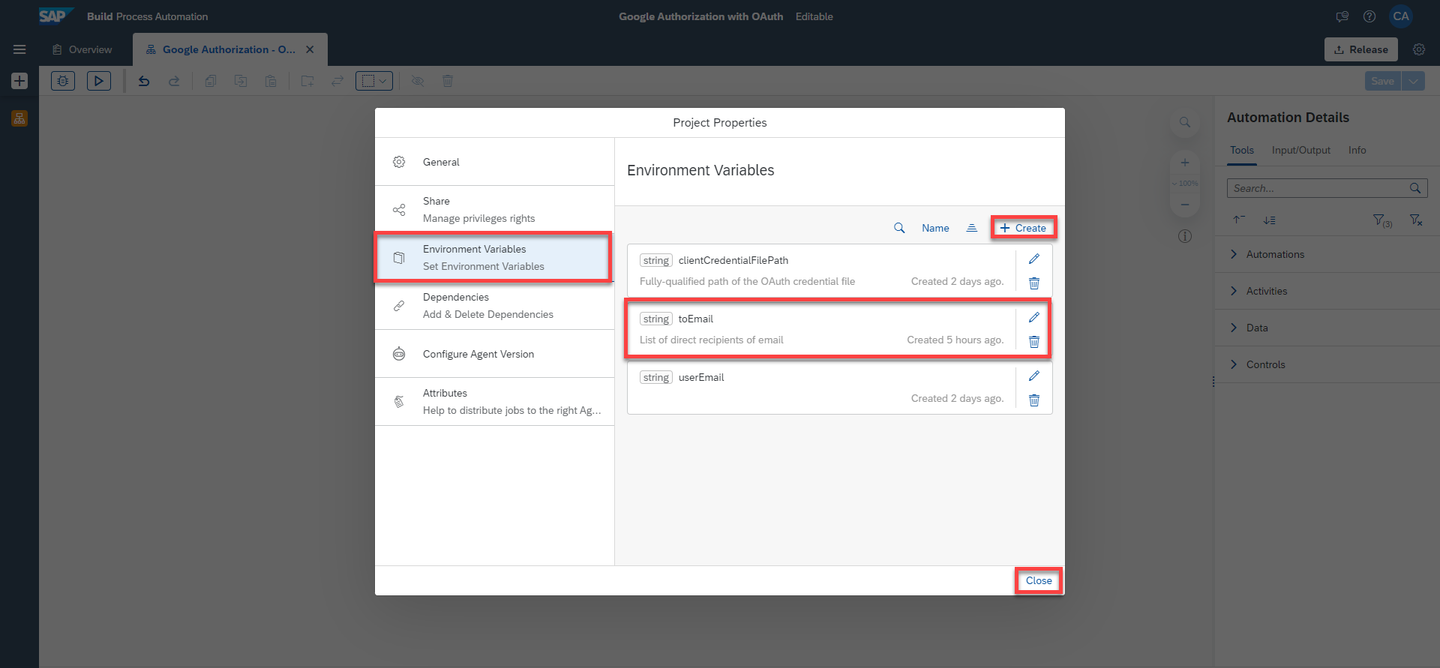

2. In the Project Properties window, select Environment Variables, then + Create.



3. In the create an environment variable screen:

   • Under Identifier enter: toEmail,
   • Under description: List of direct recipients of email,
   • Under Type select String,
   • Choose the Create button.

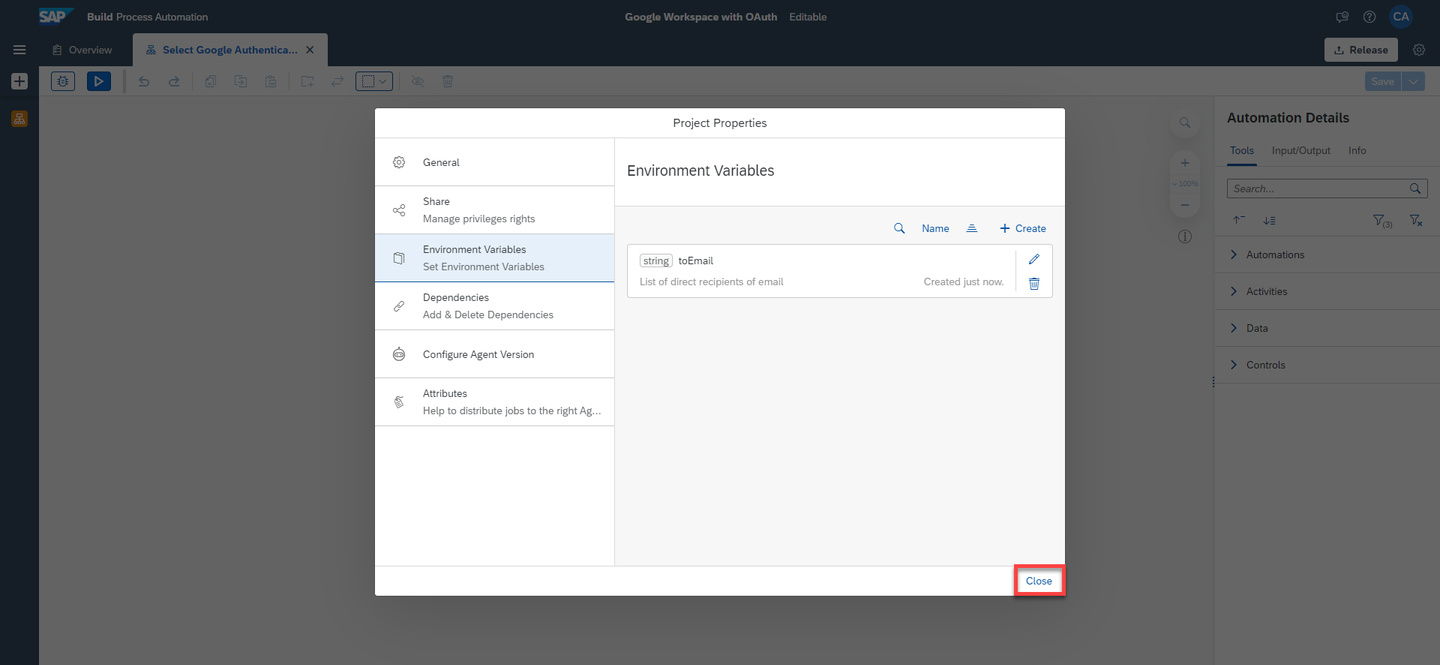

4. After the Environment Variable is created successfully, close the project properties window.



1. Search for the Send Email (Gmail) activity and drag and drop it into the workflow.



2. Select the activity and under Gmail parameters, select Create Custom Data.

3. For the Gmail input parameter to, select the environment variable created above:toEmail.

4. Fill in the input parameters subject and body.

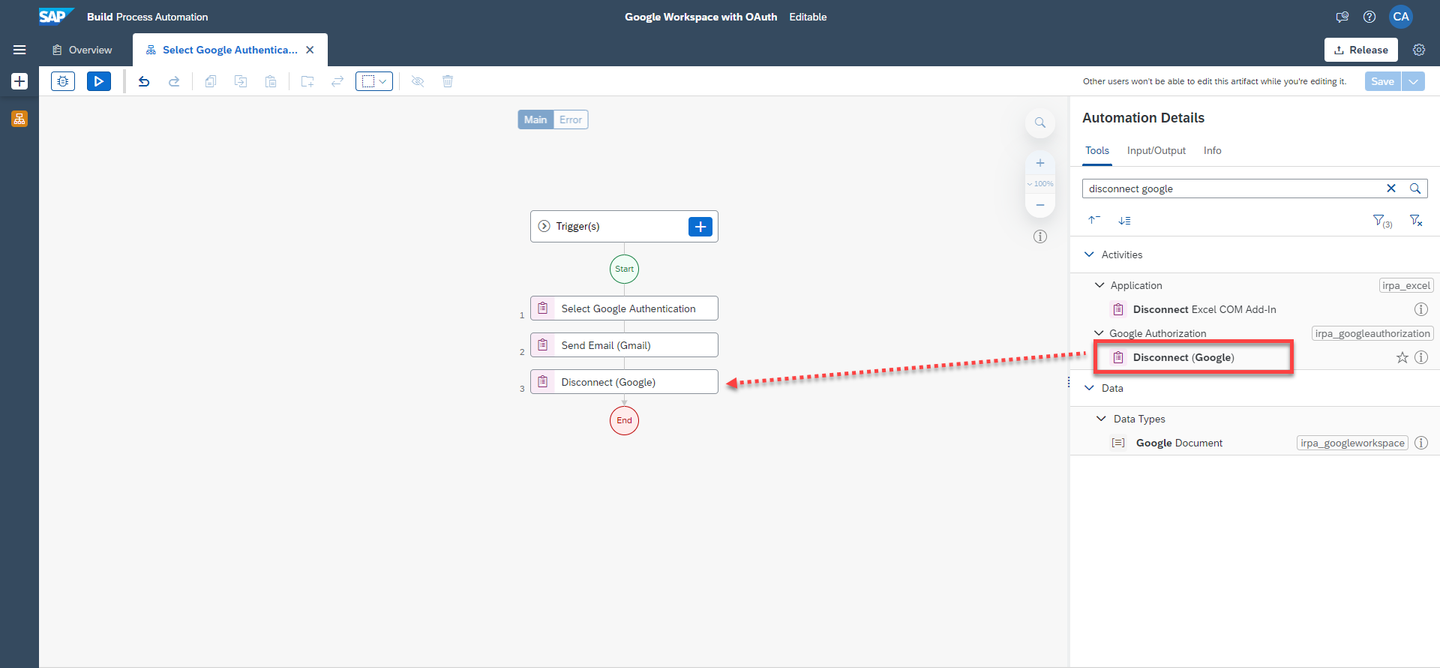

5. Search for the Disconnect (Google) activity and drag and drop it into the workflow.

6. Choose Save.

   This activity is mandatory at the end of the automation.



1. Choose Test.

2. Fill in the Environment Variable toEmail: the email of the recipient receiving the email.

3. Choose Test.



   The testing was successful.

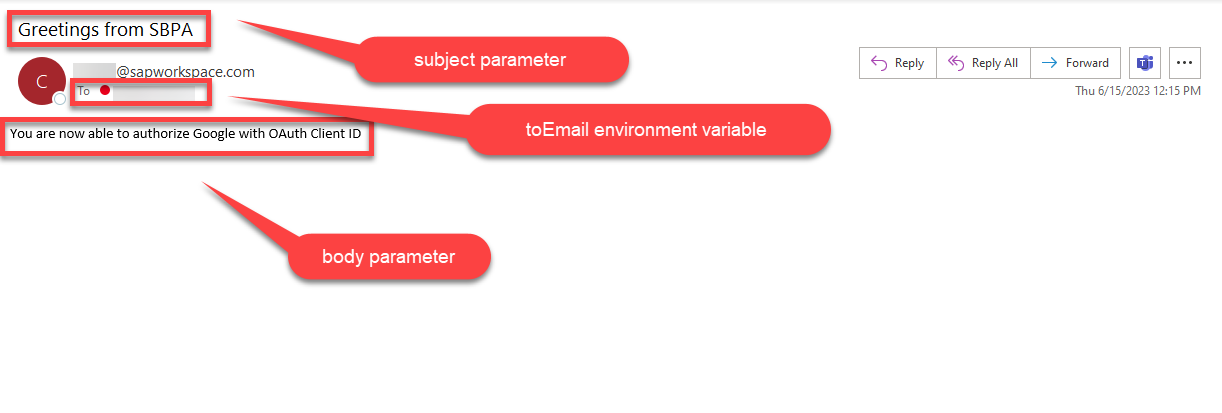

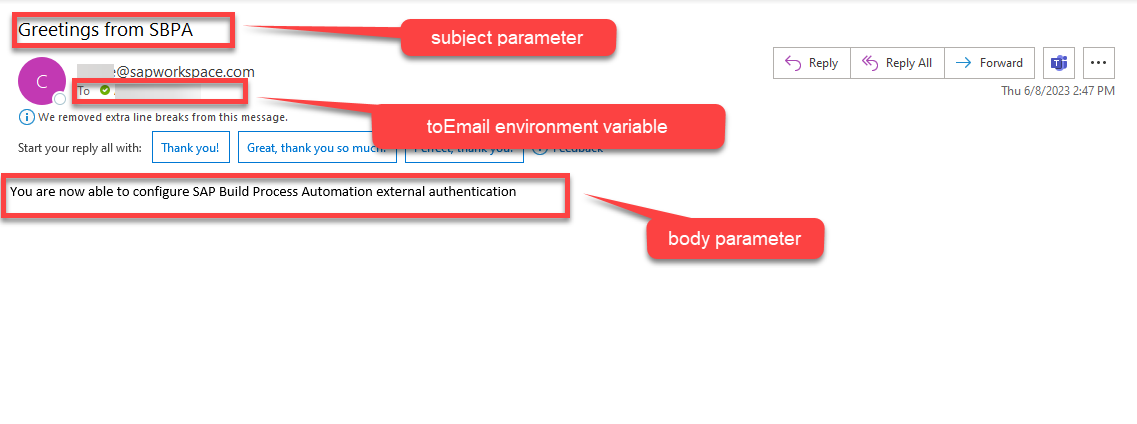

4. Go to the inbox where the email was sent. You should have received the email from Gmail that you configured previously.



   You successfully configured your external authentication through the Desktop Agent 3.0. and authorized SBPA to automatically send an email from your Gmail account.

In this section, you will learn how to get authorization for a Google account using OAuth.

OAuth approach is preferred over service account, when accessing user resources and retrieving user data is the use case.

Example: Accessing the Drive files of the user, Scheduling a Calendar Event, Replying to an Email etc.

The Authorize Google (OAuth Client ID) activity is used to authorize using OAuth Client and the same activity can be used for both Desktop Agent 2.0 and Desktop Agent 3.0. Once the activity executes successfully, the bot is authorized to execute any subsequent google activities.

1. Navigate back to the Lobby.

2. Click on Create > Build an Automated Process > Task Automation.

3. In the Create a Task Automation project pop-up, enter a project name: Google Authorization with OAuth and a description: A demo to get authorization for a Google account using OAuth Client ID.

4. Choose Create.



   You will be asked to configure your Desktop Agent version.

5. Select the Desktop Agent version that is registered on your system.

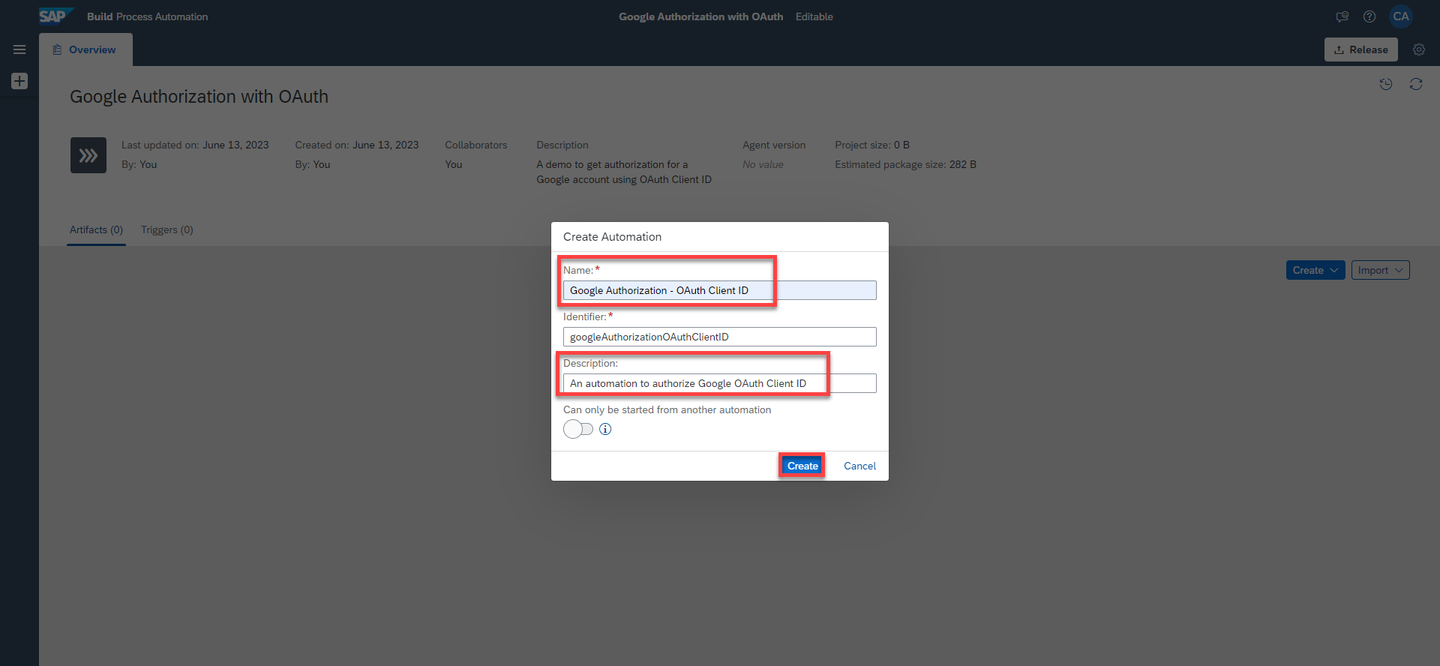

   A pop-up window will prompt you to create an automation.

6. In the name field enter Google Authorization - OAuth Client ID.

7. In the description field enter An automation to authorize Google OAuth Client ID.

8. Choose Create.

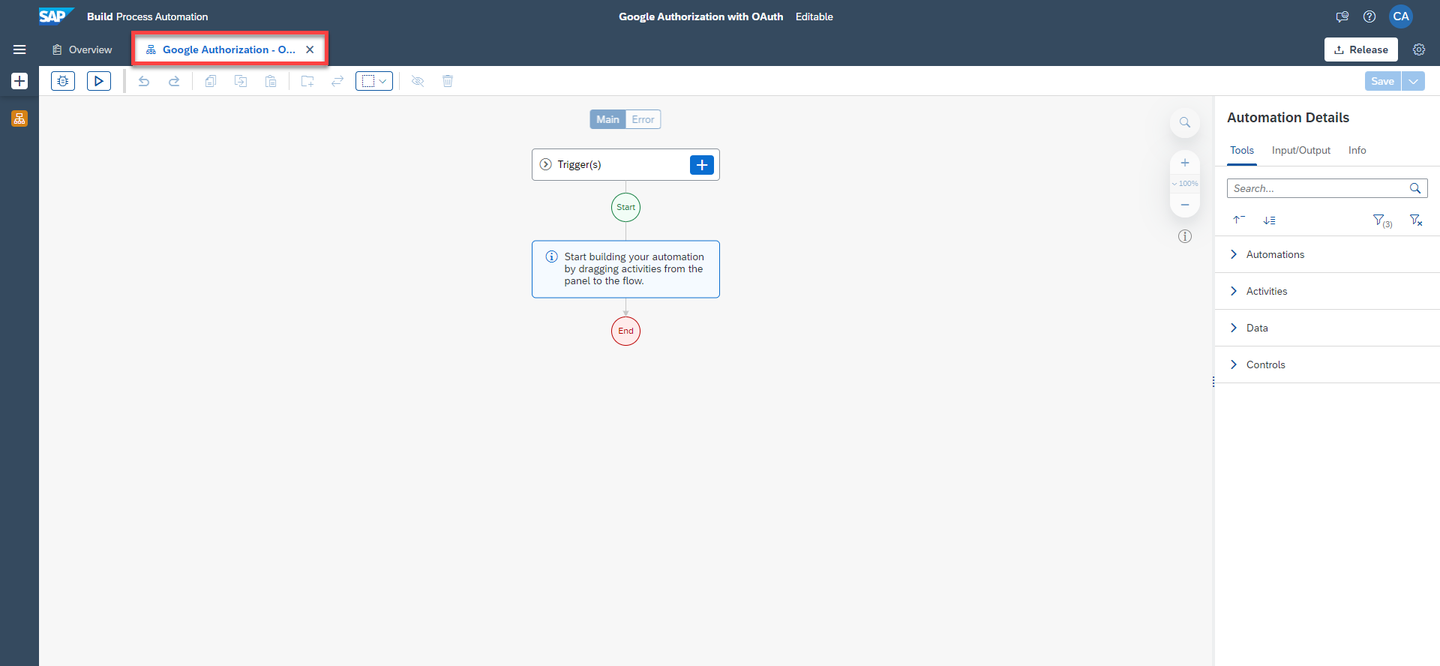

   A new automation named Google Authorization - OAuth Client ID will be successfully created. You will be navigated to the automation editor where you can start building your automation.



You will need to maintain two environment variables that will contain the fully qualified path of the OAuth credential file as well as the user email used in the automation.

1. Select Settings.

2. In the Project Properties window, select Environment Variables, then + Create.



3. In the create an environment variable screen:

   • Under Identifier enter: clientCredentialFilePath,
   • Under description: Fully-qualified path of the OAuth credential file,
   • Under Type select String,
   • Choose the Create button.



4. In the same way, you will create a second variable named userEmail, also of type String. Choose + Create.

   The user’s email address is mandatory because the OAuth Approach is used to perform actions on their resources.

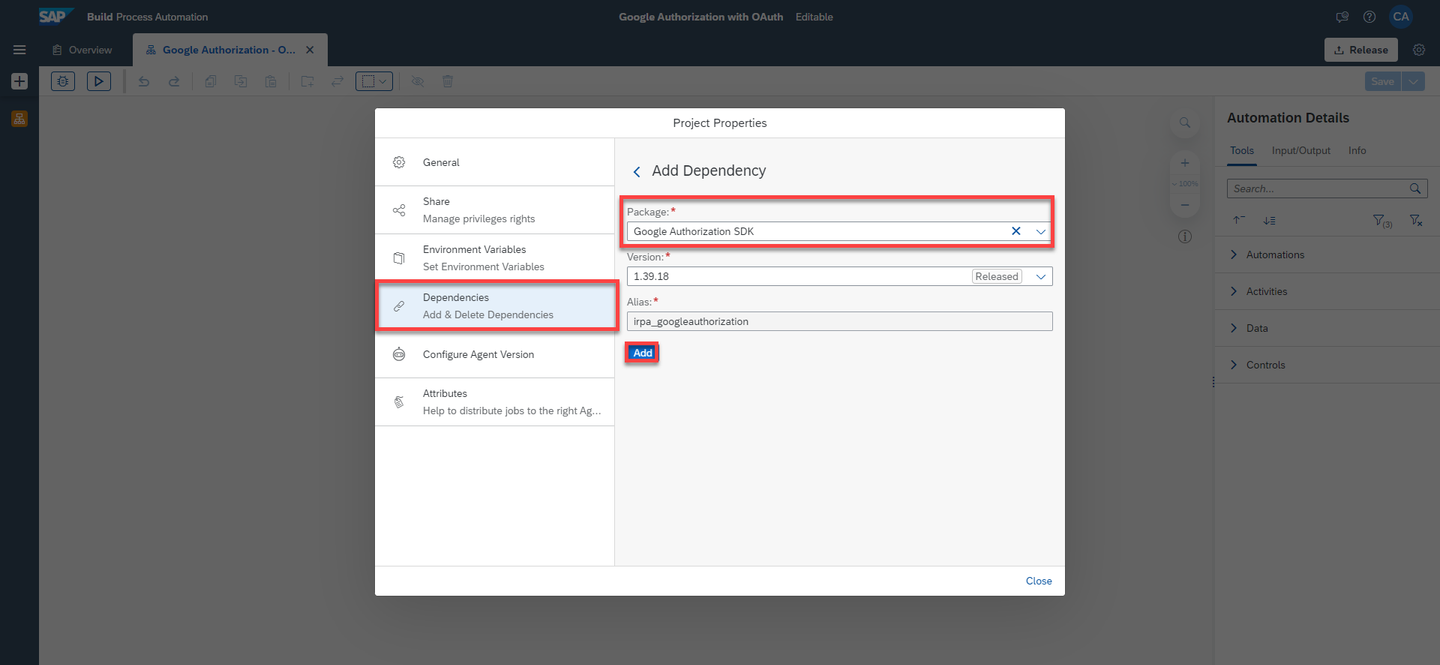

1. In the Project Properties window, select Dependencies>Add Dependency>Add a Business Process project dependency.

2. From the Package drop down, choose Google Authorization SDK.

3. Choose Add.



4. Repeat the same steps to add the Google Workspace SDK.

   The dependencies are successfully added. You may close the Project Properties window.



1. In the Automation Details panel, under Tools, search for Authorize Google (OAuth Client ID).

2. Drag and drop the activity into the workflow.



3. Choose the activity.

4. Under Input Parameters, for clientCredentialFilePath field enter the environment variable E clientCredentialFilePath previously created.



5. Choose the field of the input parameter Scopes and select Create Custom Data.



   Scopes provide a way to limit the amount of access that is granted while authorizing, the corresponding scopes required for the subsequent activities should be selected. The subsequent google activities will fail, if the scopes were not appropriate.

6. Under Scopes List input parameter, choose the + next to List of Google Scopes..Scopes List and select Create Custom Data.



   Select GmailScope as you would be building an automation to send an email.



7. For userEmail field enter the environment variable userEmail previously created.

   userEmail is the user’s email address and it is mandatory because the OAuth Approach is used to perform actions on their resources.



8. For the input parameter storeRefreshToken: the refresh tokens can be configured to be stored, in order to build unattended bots. However, the first bot run will be attended, since the user consent screen will be launched and user has to provide their consent.

9. For the input parameter webBrowser: select the web browser to be launched for completing Google Authorization.

10. Choose Save.



You can test if the Google Authorization has been set up correctly.

1. Choose Test.

2. Fill in the Environment Variables:

   • For userEmail: your user email,
   • For clientCredentialFilePath: the full path to the json file.

3. Choose Test.



   When you run the bot for the first time, the user consent screen with the scopes will be launched on the browser window. Once the user consent is given, the access token and refresh token will be generated. You can configure the activity to store these tokens and use it for subsequent bot runs without user intervention. When the refresh token expires or the scopes change, re-authentication and re-authorization are necessary. Every unique combination of client Id, email ID and scopes requires the user’s consent on each system running the bot for the first time.

4. While running the bot, the browser will be launched for user Authentication. After successful authentication, the consent screen will be prompted with the selected scopes, where you have to verify the scopes and provide consent:



   CAUTION: If you are a free trial user, you will receive the following messages from Google:



   The testing was successful.



   You have set the Authorize (OAuth Client ID) activity and added the Google Workspace SDK to automate Google applications such as Google Drive, Gmail, Google Docs, Google Sheets and Google Slides.

   CAUTION: The Authorize Google (OAuth Client ID) activity must be used before any Google SDK activity. Once you are done building your automation, you must use the Disconnect activity at the end of the automation.

   Please note that all the Google Workspace activities also work with Desktop Agent 2.0.

You will create an environment variable for the list of direct recipients of the email you will send. Please follow step 7 to create a toEmail environment variable.

You will build an automation that will send an email from your gmail account to another recipient. Please follow step 8 to do so.

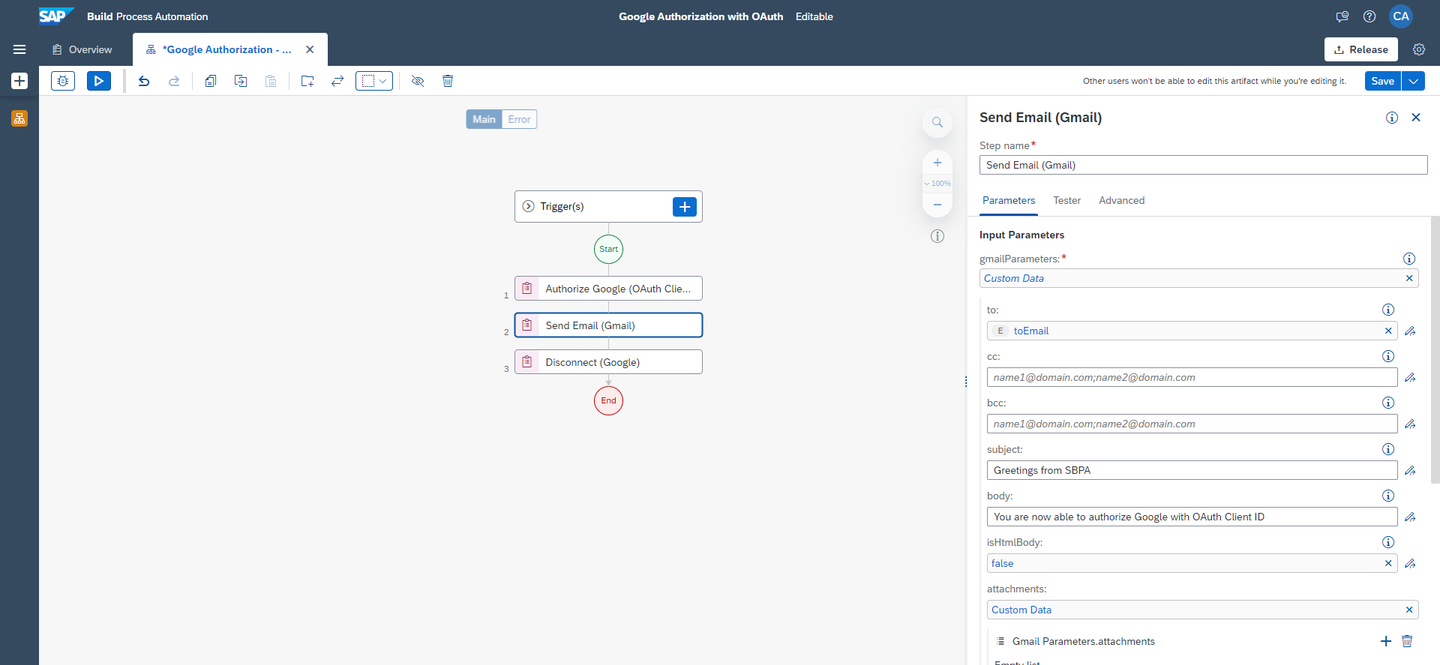

Your automation will look like this:

You may test your automation. The testing was successful.

In the inbox where the email was sent, you will receive the email from Gmail that you configured previously.

You successfully authorized SBPA to automatically send an email from your Gmail account.
