Customize the Jetpack Compose Onboarding Flow

The onboarding flow is comprised of the following UI components:

• End user license agreement (EULA) screen
• Activation screen
• Authentication screen
• Set passcode and verify passcode screens
• Usage consent screen and crash report consent screens.

The visibility and the content of each screen will vary depending on the different application configurations and client code customization.

1. By default, the first screen of the onboarding flow is the EULA screen. This screen allows users to review and agree to the end user license agreement. To exclude this screen, set the value of useDefaultEulaScreen parameter to false for the FlowOptions instance and set this FlowOptions instance for the FlowContext instance to start the onboarding flow.

   Kotlin Copy

   val flowContext = FlowContext(
       appConfig = appConfig,
       flowOptions = FlowOptions(
           useDefaultEulaScreen = false
   )
   FlowUtil.startFlow(activity, flowContext)

   Notice that if the EULA screen is excluded, it will be the responsibility of the client code to handle the end user license agreement.

2. If the AppConfig instance in FlowContext does not provide the authentication info or host for the mobile application, the activation screen will be displayed to get the complete AppConfig from either the Discovery Service, QR code scanning or MDM. By default, the QR code scanning screen will be displayed. The client code can customize the screen to display other activation screens.

   Create a FlowOptions instance and set the value for activationOption parameter, ActivationOption.DS_ONLY value to display the Discovery Service method only, ActivationOption.MDM_ONLY value to display the MDM method only and ActivationOption.DS_OR_QR value to display the activation screen for selecting from both methods. Using the code snippet below, the activation screen will only display the option for Discovery Service.

   Kotlin Copy

   val flowContext = FlowContext(
       appConfig = appConfig,
       flowOptions = FlowOptions(
           activationOption = ActivationOption.DS_ONLY
   )
   FlowUtil.startFlow(activity, flowContext)

   Notice that if the AppConfig instance contains complete information, the onboarding flow will skip the activation screen and go directly to the authentication step.

3. After getting the complete application configuration, the onboarding flow will display different authentication screens based on the authentication type defined for the application. For example, a screen with user input for User Name and Password properties will be displayed if the authentication type is Basic. If the authentication type is SAML, the screen will redirect to a web page for user login. The logic to decide which authentication screen to display is built into the onboarding flow and the client code cannot change it.

4. The set passcode and verify passcode screen will be skipped if a passcode policy is not enabled on the server side. Notice that in multi-user mode, the passcode step cannot be skipped and a default passcode policy will be created if it’s not enabled on the server.

   Also, the usage consent screen will be skipped if usage reporting is not enabled and the crash report screen will be skipped if crash reporting is not enabled. Otherwise, the screens will be displayed in the onboarding flow, and the client code cannot alter this fact. To enable the usage reporting and crash reporting services, the client code needs start them using the SDKInitializer class.

   Kotlin Copy

   val services = mutableListOf<MobileService>()
   services.add(UsageService())
   services.add(CrashService())

   SDKInitializer.start(this, * services.toTypedArray())

5. Besides the options to include or exclude a step, you can set the client code to customize screens using its ScreenSettings, including the title, description, and button text for all screens. For some specific screens, such as the EULA screen, the client code can specify its own URL for the EULA file. See Onboarding Compose Screens in the help documentation for information on the detailed settings for each screen in the onboarding process.

   To have the customized screen settings take effect in the onboarding flow, set the list of ScreenSettings for the FlowContext instance.

   Kotlin Copy

   val customScreenSettings = CustomScreenSettings(
       eulaSettings = EulaScreenSettings(
           eulaUrl = "file:///android_asset/my_eula.html"),
       setPasscodeScreenSettings = SetPasscodeScreenSettings(
           description = R.string.set_passcode_screen_desc)
   )
   val flowContext = FlowContext(
       appConfig = appConfig,
       flowOptions = FlowOptions(
           screenSettings =  customScreenSettings
   )
   FlowUtil.startFlow(activity, flowContext)

In this section, we explain the onboarding-related callbacks in FlowStateListener based on the WizardFlowStateListener class generated by the SAP BTP SDK Wizard for Android.

1. Open the project you previously created using the SAP BTP SDK Wizard for Android.

2. In Android Studio, on Windows, press Ctrl+N, or, on a Mac, press command+O, and type WizardFlowStateListener to open WizardFlowStateListener.kt.

3. On Windows, press Ctrl+F12, or, on a Mac, press command+F12, and type onAppConfigRetrieved to move to the onAppConfigRetrieved method. The event is notified when the AppConfig instance is retrieved from either the Discovery Service or QR code scan. Client code can perform the initialization when the AppConfig is ready.

   !



   Kotlin Copy

   override suspend fun onAppConfigRetrieved(appConfig: AppConfig) {
       logger.debug("onAppConfigRetrieved: {}", appConfig)
       SAPServiceManager.initSAPServiceManager(appConfig)
   }

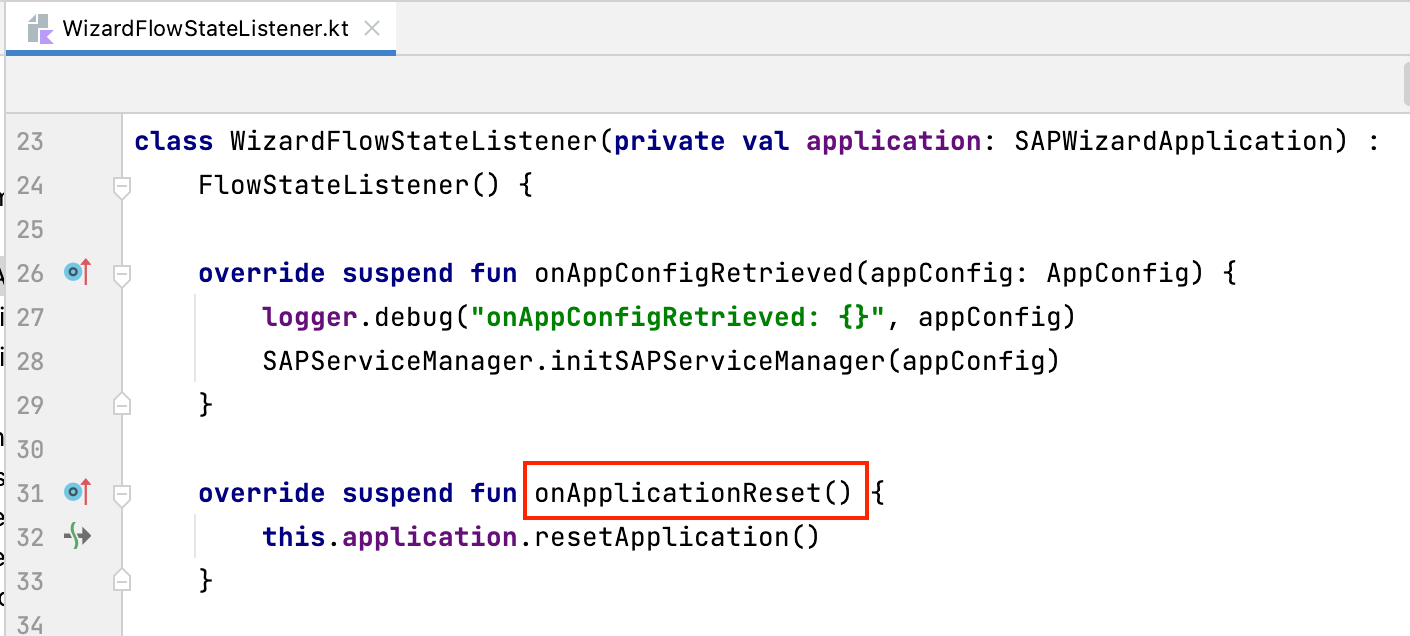

4. On Windows, press Ctrl+F12, or, on a Mac, press command+F12, and type onApplicationReset to move to the onApplicationReset method. The event is notified when reset the application by starting the reset flow.

   !



   Kotlin Copy

   override suspend fun onApplicationReset() {
       this.application.resetApplication()
   }

5. On Windows, press Ctrl+F12, or, on a Mac, press command+F12, and type onClientPolicyRetrieved to move to the onClientPolicyRetrieved method. After authentication is completed, the onboarding flow will get the client policies from the mobile server and then notify this event. The client code can then create the UI to display the settings.

   !



   Kotlin Copy

   override suspend fun onClientPolicyRetrieved(policies: ClientPolicies) {
       policies.logPolicy?.also { logSettings ->
           val preferenceRepository = SharedPreferenceRepository(application)
           val currentSettings =
               preferenceRepository.userPreferencesFlow.first().logSetting

           if (currentSettings.logLevel != logSettings.logLevel) {
               preferenceRepository.updateLogLevel(LogPolicy.getLogLevel(logSettings))

               val logString = when (LogPolicy.getLogLevel(logSettings)) {
                   Level.ALL -> application.getString(R.string.log_level_path)
                   Level.INFO -> application.getString(R.string.log_level_info)
                   Level.WARN -> application.getString(R.string.log_level_warning)
                   Level.ERROR -> application.getString(R.string.log_level_error)
                   Level.OFF -> application.getString(R.string.log_level_none)
                   else -> application.getString(R.string.log_level_debug)
               }

               logger.info(
                   String.format(
                       application.getString(R.string.log_level_changed),
                       logString
                   )
               )

               MainScope().launch {
                   Toast.makeText(
                       application,
                       String.format(
                           application.getString(R.string.log_level_changed),
                           logString
                       ),
                       Toast.LENGTH_SHORT
                   ).show()
               }
           }
       }
   }

   Show all 38 lines Show less

6. On Windows, press Ctrl+F12, or, on a Mac, press command+F12, and type onFlowFinishedWithData to move to the onFlowFinishedWithData method. The flows framework will send this event to the client code when a flow finishes successfully and the flow activity is removed from the back stack. Notice that this callback will only be invoked when the flow is successfully completed. If at any time the flow is canceled, this callback will not be invoked.

   !



   Kotlin Copy

   override suspend fun onFlowFinishedWithData(flowName: String?, data: Intent?) {
       when (flowName) {
           FlowType.Reset.name, FlowType.Logout.name -> launchWelcomeActivity(application)
           FlowType.DeleteRegistration.name -> {
               launchWelcomeActivity(application)
           }
       }
   }

7. Besides the callbacks implemented in the WizardFlowStateListener class, the OkHttpClientReady method is also useful if you want to add an HTTP header into the onOkHttpClient instance. Before authentication, the OkHttpClient instance will be ready and sent to the client code using onOkHttpClientReady. To add your own HTTP header, override the OkHttpClientReady method in your flow state listener.

   Kotlin Copy

   override fun onOkHttpClientReady(httpClient: OkHttpClient) {
       httpClient.addUniqueInterceptor( object: Interceptor {
           override fun intercept(chain: Interceptor.Chain): Response {
               val request: Request = chain.request()
               val newRequest = request.newBuilder()
                   .header("my_header", "my_header_value")
                   .build()
               return chain.proceed(newRequest)
           }
       })
   }

Please see Flows Extension Point and FlowStateListener in the Flows Component of SAP BTP SDK for Android for detailed information on all of the flow states and callbacks. FlowStateListener has the same purpose as that in the view-based flows component and the sequence of the callback functions is also the same. The difference is that every callback function is marked as suspend, so it’s easier for the client code to call other suspend functions.

The FlowActionHandler class allows you to insert your own logic at certain points in the onboarding flow, such as adding your own passcode validation or barcode validation after the default rules are executed, adding an algorithm for user name or email obfuscation when displaying the user information, or adding a parser for barcode content when scanning QR codes, etc.

Similar to the FlowStateListener, you need to extend the FlowActionHandler class to implement the corresponding methods and set your own FlowActionHandler instance for the FlowContext instance using the FlowContext.setFlowStateListener(listener: FlowStateListener) method.

This section provides some sample implementations for the methods in the FlowActionHandler class.

1. The FlowActionHandler provides three methods related to passcode validation:

   open fun isPasscodeDigitOnly(): Boolean

   open fun isLocalizingPasscodeDigitsToLatin(): Boolean

   open fun validatePasscode(code: CharArray): Boolean

   The first two methods allow you to add additional rules for passcode policy and the last method is for you to add your own validation logic in addition to the rules defined in the passcode policy. For example, when the passcode policy allows special characters, you can still add the logic to disable certain special characters. For instance, the sample code below prevents the user from being able to use “@” as one of the possible special characters:

   Kotlin Copy

   override fun validatePasscode(code: CharArray): Boolean {
       if(code.contains('@')) {
           return false
       }
       return super.validatePasscode(code)
   }

2. The FlowActionHandler provides two methods related to the QR code:

   open fun validateBarcode(barcode: String): ServiceResult<Boolean>

   open fun parsingBarcode(barcode: String): AppConfig?

   The first method allows you to add customized validation logic and the second method allows the client code to parse the QR code and construct the AppConfig instance using its own logic.

   For example, you can specify that the QR code must contain some particular properties:

   Kotlin Copy

   override fun validateBarcode(barcode: String): ServiceResult<Boolean> {
       return if (barcode != null && barcode.contains("AppId") && barcode.contains("ClientId")
               && barcode.contains("AuthorizationEndpointUrl")
               && barcode.contains("ServerUrl") && barcode.contains("RedirectUrl")
               && barcode.contains("TokenUrl")) {
           ServiceResult.SUCCESS(true)
       } else {
           ServiceResult.FAILURE("")
       }
   }

3. The FlowActionHandler provides two methods related to handling the certificate:

   open fun getCertificateProvider(): CertificateProvider

   onCertificateSslClientAuthPrepared(): SslClientAuth?

   The first method allows you to provide a customized CertificateProvider for a certificate challenge and the second method allows you to provide your own SslClientAuth for certificate authentication.

   For example, you can create a SslClientAuth instance using a ChooseCertificateProvider instance to pop up a dialog for user to choose a certificate:

   Kotlin Copy

   override fun onCertificateSslClientAuthPrepared(): SslClientAuth {
       val chooseCertificateProvider = ChooseCertificateProvider()
       return SslClientAuth(chooseCertificateProvider)
   }

4. The FlowActionHandler provides two methods for user name and email obfuscation when displaying the information on the sign-in screen:

   open fun obfuscateUserName(name: String): String

   open fun obfuscateEmail(email: String): String

   For example, you can choose to not obfuscate the email but obfuscate the user name by keeping the first two characters and replacing the other characters with several “_” characters:

   Kotlin Copy

   override fun obfuscateEmail(email: String): String {
       return email
   }

   override fun obfuscateUserName(name: String): String {
       if (name.isEmpty()) {
           return name
       }
       return if (name.length > 2) {
           name.substring(0, 2) + "____"
       } else {
           name.substring(0, 1) + "_____"
       }
   }

5. The FlowActionHandler provides a method for the client code to add “back button press” logic when a web view is displayed for authentication. For some authentication types, the onboarding flow will open a web view for authentication. You can add your own logic to specify what action is taken when the Back button of the web view is pressed.

   open fun webViewBackPressHandler(): IBackPress? = null

   The following sample code implements a warning dialog when the Back button is pressed:

   Kotlin Copy

    override fun webViewBackPressHandler() = IBackPress {
       val activity = AppLifecycleCallbackHandler.getInstance().activity
       activity?.let {
           AlertDialog.Builder(activity)
               .setMessage("Are you sure you want to exit onboarding flow?")
               .setPositiveButton("OK") { dialog, _ ->
                   activity.finish()
                   dialog.dismiss()
               }.setNegativeButton("Cancel") { dialog, _ ->
                   dialog.dismiss()
               }.show()
       }
   }

6. The FlowActionHandler provides a method for the client code to add custom steps for the onboarding flow. The client code can add its own steps to the supported insert points.

   open fun getFlowCustomizationSteps(flow: BaseFlow, insertionPoint: CustomStepInsertionPoint)

   Currently, the following insertion points are supported：

   Kotlin Copy

   sealed class CustomStepInsertionPoint {
       object BeforeEula : CustomStepInsertionPoint()
       object BeforeActivation : CustomStepInsertionPoint()
       object BeforeAuthentication : CustomStepInsertionPoint()
       object BeforeSetPasscode : CustomStepInsertionPoint()
       object BeforeConsents : CustomStepInsertionPoint()
       object BeforeOnboardingFinish : CustomStepInsertionPoint()
   }

   The following sample code adds a welcome step before the EULA step for the onboarding flow：

   Kotlin Copy

   override fun getFlowCustomizationSteps(
       flow: BaseFlow,
       insertionPoint: CustomStepInsertionPoint
   ) {
       if (flow.flowName == FlowType.Onboarding.name) {
           when (insertionPoint) {
               CustomStepInsertionPoint.BeforeEula -> {
                   flow.addSingleStep(step_welcome, secure = false) {
                       LaunchScreen(
                           primaryViewClickListener = {
                               flow.flowDone(step_welcome)
                           },
                           secondaryViewClickListener = {
                               flow.terminateFlow(Activity.RESULT_OK)
                           }
                       )
                   }
               }
               else -> Unit
           }
       }
   }

Congratulations! You have learned how to customize a Jetpack Compose onboarding flow!
