Deploy and Run the Incident Management Application in the SAP BTP, Cloud Foundry Runtime with a Mock Server

1. In SAP Business Application Studio, navigate to the Incident Management application folder and add the [production] profile credentials (destination and path) to the settings for API_BUSINESS_PARTNER to the package.json file:

   JSON Copy

     "API_BUSINESS_PARTNER": {
       "kind": "odata",
       "model": "srv/external/API_BUSINESS_PARTNER",
       "[production]": {
         "credentials": {
           "destination": "<destination_name>",
           "path": "odata/v2/api-business-partner"
         }
       }
     }

   Replace <destination_name> with the name of the destination that you created at Step 5: Create a destination to the mock server of Install a Mock Server in the SAP BTP, Cloud Foundry Runtime.

2. In the mta.yaml file, look for the incident-management-srv module’s requires section, and make sure that the line - name: incident-management-destination is added:

   YAML Copy

   - name: incident-management-srv
     type: nodejs
     path: gen/srv
     requires:
     - name: incident-management-auth
     - name: incident-management-db
     - name: incident-management-destination
   ....

3. Log in to your subaccount in SAP BTP:

   Shell Copy

   cf api <API-ENDPOINT>
   cf login
   cf target -o <ORG> -s <SPACE>

   You can find the API endpoint in the Overview section of your subaccount in the SAP BTP cockpit.

4. Run the following commands to build and deploy your project to the SAP BTP, Cloud Foundry runtime:

   Shell Copy

   mbt build
   cf deploy mta_archives/incident-management_1.0.0.mtar

When creating new entries in the Incident Management application, you see all values from the mock server in the value help of the Customer field.

Before you continue with this step, don’t forget to perform the steps from the tutorials Assign the User Roles and Integrate Your Application with SAP Build Work Zone, Standard Edition.

1. Open your SAP Build Work Zone, standard edition site as described in Integrate Your Application with SAP Build Work Zone, Standard Edition.

2. Choose the Incident Management tile.



3. Choose Create to start creating a new incident.

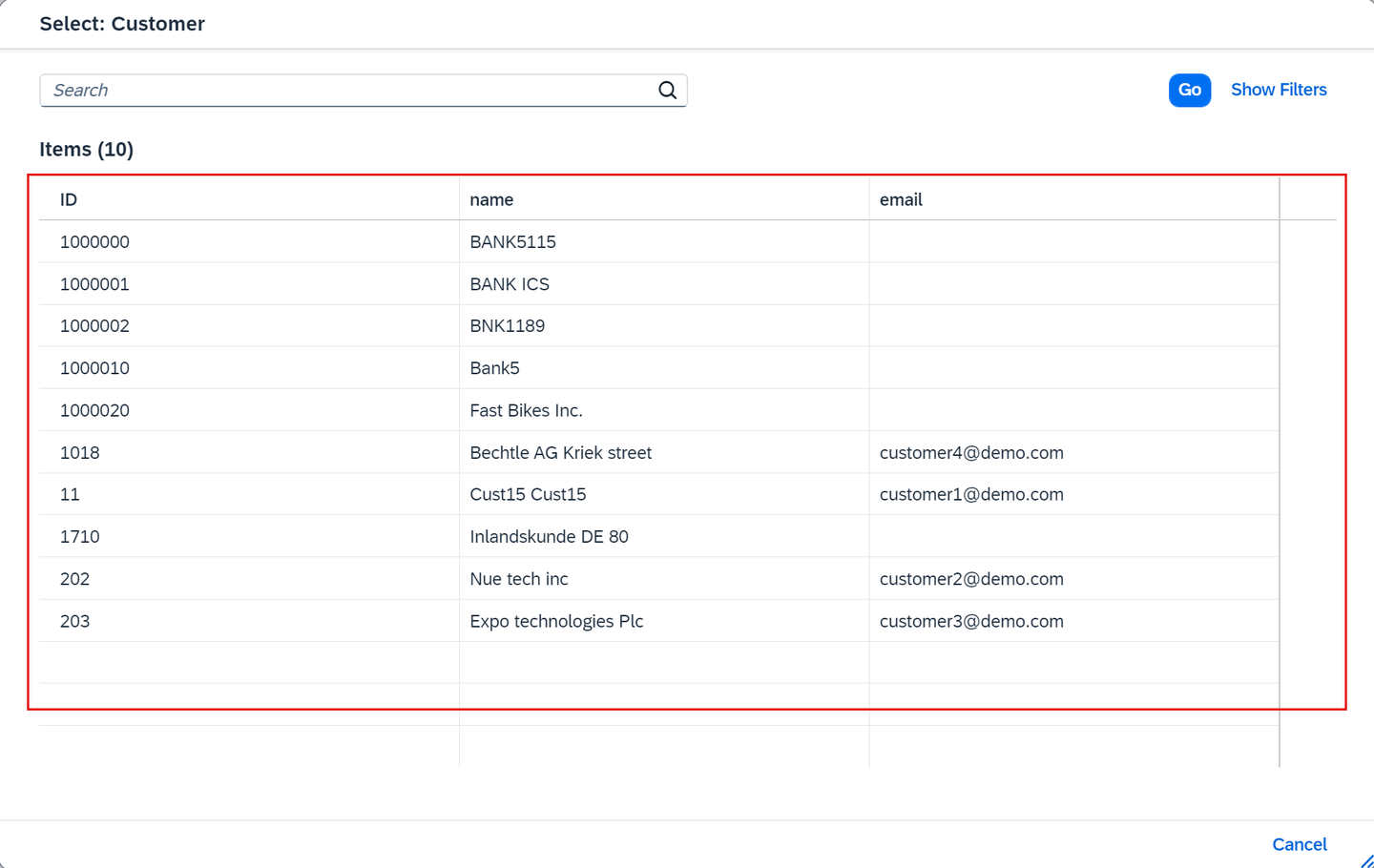

4. Open the value help for the Customer field.



5. Verify that customer data is fetched from the mock server.



Congratulations! You have successfully developed, configured, and deployed the Incident Management application using an external service and a mock server.
