Visualize a Voronoi Cell Using a Scalable Vector Graphic

Your first step is to select edges with the property highway = cycleway in the previously identified area. In addition to the filter highway = cycleway, you need to check if both associated vertices are within the scope of our area of interest. If only one connected vertex is within the scope of your circle, this would mean that you would leave the area of interest by passing this edge (i.e. street). To avoid doing so, execute this statement:

SELECT le.*
FROM LONDON_EDGES le
JOIN LONDON_VERTICES u ON le.SOURCE = u."osmid"
JOIN LONDON_VERTICES v ON le.TARGET = v."osmid"
WHERE u.IN_SCOPE = 1 AND v.IN_SCOPE = 1 AND le."highway" = 'cycleway'

In the results, you will see all cycleways that fit the parameters in this query.

Next, you need to aggregate the cycleways found in the previous query, create a vector graphic (SVC) to then display the structure of the cycleways in the area. You will construct a query that does all these steps in one execution.

One of the output formats for geometries in SAP HANA Cloud is Scalable Vector Graphic (SVG). The appropriate function for generating an SVG representation of a geometry is called ST_AsSVG(*). You can handover optional parameters for custom styling of the SVG.

Before creating the query, you need to make an adjustment in the SAP HANA Database Explorer. Otherwise you would not be able to see and copy the whole SVG output.

1. Click on the cogwheel on the left side of the screen to open the Settings.

2. Select the submenu SQL console and in the section Result Behavior, find the field ‘Byte limit for Large Objects (LOB)’.

3. You can set the value to 0, which will be automatically converted to the highest possible value.



4. Now that this setting has been adjusted, you can start with your query. To perform a spatial union operation and construct one geometry out of the result set of the above query, use the function ST_UnionAggr(*). The following query creates the SVG as a CLOB:

   SQL Copy

SELECT ST_UnionAggr(le.SHAPE).ST_AsSVG(Attribute=>‘stroke=“red” stroke-width=“0.1%”’) FROM LONDON_EDGES le JOIN LONDON_VERTICES u ON le.SOURCE = u.“osmid” JOIN LONDON_VERTICES v ON le.TARGET = v.“osmid” WHERE u.IN_SCOPE = 1 AND v.IN_SCOPE = 1 AND le.“highway” = ‘cycleway’;

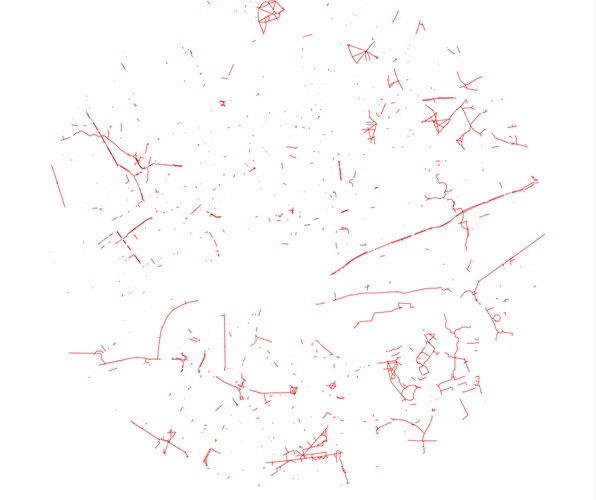

5. To view the SVG, simply copy & paste the output into a file and give it a name with the ending **`.svg`**. You can view the SVG file by opening it with your browser.

    You can find our SVG file here: [Link](https://github.com/SAP-samples/teched2020-DAT260/blob/main/exercises/ex4/images/cycle_ways.svg).

    ![SVG](https://raw.githubusercontent.com/sap-tutorials/Tutorials/master/tutorials/hana-cloud-smart-multi-model-5/ss-02-svg.png)





### Use `Voronoi` cells to determine a suitable cycleway

To evaluate how suitable the area is for bike riding, let's say you want to find bicycle repair stations and their catchment area next. To do that, you will **select all bicycle repair stations and determine their catchment area using a [`Voronoi`(*)](https://en.wikipedia.org/wiki/Voronoi_diagram) cell**.

You can easily find all stations since the field **amenity** carries the value **`bicycle_repair_station`** for such POI's. You can access this information using a select statement with a WHERE filter:

```SQL
SELECT *
FROM LONDON_POI
WHERE "amenity" = 'bicycle_repair_station';

Next, you will use a Voronoi cell (also known as Thiessen polygon) to determine which is the closest bicycle repair station to any location in the city. A Voronoi cell of a POI covers the area that is closer to the POI than to any other POI in the list. The spatial windows function ST_VoronoiCell(*) lets you create Voronoi cells on the database level using this statement:

SELECT
	"osmid" ,
    SHAPE,
	ST_VoronoiCell(SHAPE, 10.0) OVER () AS CATCHMENT_AREA
FROM LONDON_POI
WHERE "amenity" LIKE 'bicycle_repair_station';

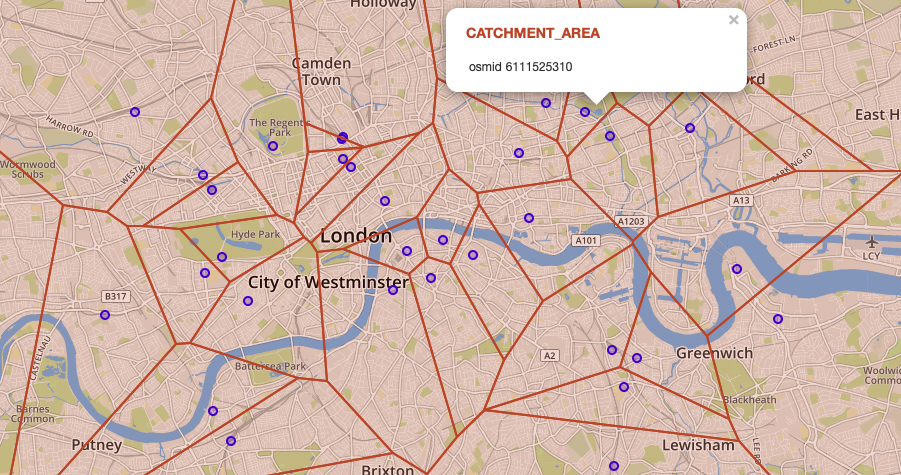

Here you can see the resulting Voronoi cells on the map:

And now you know how you can check areas for certain attributes by visualizing certain edges based on a filter and using Voronoi cells. To determine the suitability of the area for bike rides, you have visualized the coverage with cycle ways as well as bicycle repair stations.

In the next tutorial, learn how to enhance your tables to hold Voronoi cells, centroids, and node references, which will then allow you to calculate shortest paths between POI’s.
