Consume SOAP Web Services in SAP Cloud Application Programming Model (CAP)

You may have realized that most modern cloud applications are built to interact with other external solutions via OData and/or REST APIs (and you may have already done it yourself in several opportunities). But, there are some solutions that still do not offer 100% of services as OData or REST, providing some interfaces via SOAP web services – this is the case, for example, of S/4HANA Cloud which exposes a variety of OData services but, for same cases, still sticks with SOAP web services.

If you started programming in the last 5 years, you might not even know what I’m talking about – or if you know, it’s the fault of some legacy system you have to deal with.

SOAP, or Simple Object Access Protocol (not to be confused with SOA), is a protocol for creating distributed and decentralized web services – the famous web services – which allow the exchange of information between systems, using the XML format. The latest version is from 2007 (1.2) and was the most popular way of connecting systems in the first decade of the 2000s, before the emergence of the REST protocol that encouraged web APIs with JSON and, later, microservices – lighter ways to exchange information between systems over the web.

As previously mentioned almost all the latest web and mobile technologies offer native (or close to) support for handling REST Web APIs, but little is said about SOAP connections. The purpose of this tutorial is precisely to help those who need to deal with Node.js CAP applications on the client and SOAP on the server.

You are going to build a simple CAP application that reads Business Users from S/4HANA Cloud (which are exposed exclusively via a SOAP web service).

You can view the application architecture bellow:

Before you move forward with the instructions, first get prepared for development by completing the following two basic steps:

1. Set up a destination to your S/4HANA Cloud system using a communication user (NOT a business user). You can name your destination S4HC just to be compatible with the further instructions in the tutorial. If you have trouble creating your destination just follow this tutorial on SAP Developers.
2. Jump start a new CAP project in SAP Business Application Studio: after opening your dev space, open a new terminal window, move to the “projects” directory and initialize a new blank project with cds init business-users. Open the newly created project in a workspace to get ready for development.

The first thing you need to do is to get the web service definition which is described in WSDL (Web Services Description Language).

WSDL is an XML notation for describing a web service. A WSDL definition tells a client how to compose a web service request and describes the interface that is provided by the web service provider.

You can get such definition from SAP API Business Hub, so access https://api.sap.com.

In the home page, first make sure to (1) login to API Business Hub.

NOTE: you must login for the download process to work properly.

Then, after login, (2) click on the S/4HANA Cloud tile.

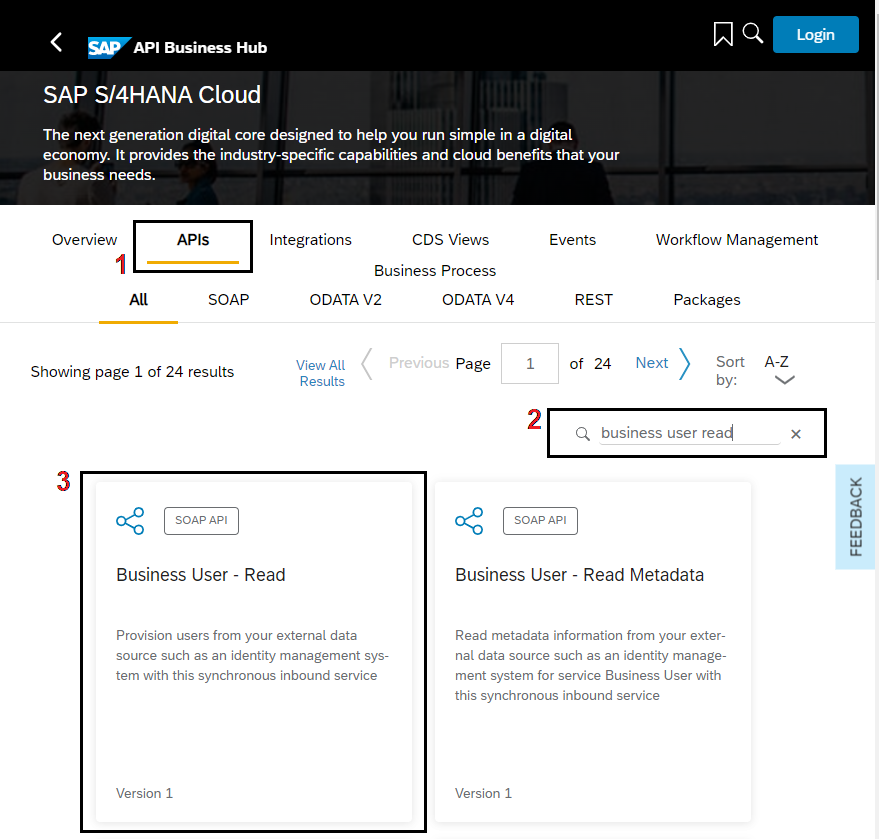

In the next page, (1) click on the APIs tab, then, (2) in the find box, type “business user read” and press enter. Finally, (3) click on the Business User – Read tile.

In the next page, click on API Specification.

NOTE: make sure your communication user (set up in your destination) has access to communication scenario SAP_COM_0193 or SAP_COM_0093, via some communication arrangement, as indicated below:

Click on the down arrow next to WSDL and save the QUERYBUSINESSUSERIN.wsdl file in your local computer.

Now, go to your CAP project in Business Application Studio and create a folder named “external” under the srv folder, then drag & drop the recently downloaded QUERYBUSINESSUSERIN.wsdl file into it like demonstrated below:

This definition will be used later upon creation of the web service client.

The next step is to reference the web service in the project’s package,json file. So, open it up and insert the following code snippet right before the last curly bracket:

,
  "cds": {
    "requires": {
      "UserRead": {
        "kind": "SOAP",
        "credentials": {
          "destination": "S4HC",
          "path": "/sap/bc/srt/scs_ext/sap/querybusinessuserin"
        }
      }
    }
  }

After the insertion, your package.json file should look like the screenshot below:

Notice that the reference is pointing to the destination that has been previously created in BTP with the path to the actual service location.

Although the destination already points to the S/HANA Cloud host, as the WSDL file has been downloaded from SAP API Business Hub (not directly from a communication arrangement in the actual S4/HANA Cloud tenant), the service location within it is “generic”, meaning it’s just a “placeholder” in the format of https://host:port/<service path>.

Therefore, you still need to replace such placeholder with the actual S/4HANA Cloud tenant host, but the code snippets in this tutorial have been developed to dynamically set the service endpoint at runtime using the setEndpoint method from the soap node package. So, it’s not necessary to do such replacement directly in the WSDL file, although it can be done if you desire, like in the screenshot below:

Now, the project is fully set up to communicate with the web service via the application code.

Before moving on to binding the services to your project, make sure to login to Cloud Foundry either via the BAS command palette (View > Find Command) or command line interface (CLI) in the terminal.

After login, create the destination and XSUAA service instances using the command lines below:

• cf create-service destination lite busers-dest
• cf create-service xsuaa application busers-xsuaa

Upon successful creation of the service instances, on the left-hand pane of BAS (1) click on the Cloud Foundry icon (small light bulb), then (2) on the refresh button at the top right of the pane.

The newly created instances should be displayed (3) at end of the list, like demonstrated below:

Right click on the busers-dest service instance and select “Bind service to a locally run project” and, then, in the dialog, make sure the business-users folder is selected and click on the “Select folder for .env file” button.

Now, repeat the same procedure for the busers-xsuaa service instance.

Click again on the Explorer icon in the left-hand pane and, then, (1) on the refresh button at the right of the project name. (2) You should see the .env file that has been created like demonstrated below:

Now, you need to (1) rename that file to default-env.json and (2) transform its contents into JSON format (as it’s just defining a regular environment variable called VCAP_SERVICES which is not in the expected JSON format), like demonstrated below:

To facilitate the creation of SOAP clients and avoid to much effort preparing a SOAP envelope in XML format to invoke the web service’s methods via HTTP request, you can use a pre-built Node.js SOAP client manager from the “soap” package available on npm (in Java there’s already native support for SOAP web services in frameworks such as Spring).

Also, to create an asynchronous http client and easily fetch destination data from BTP, you will utilize the “http-client” and “connectivity” node packages from the SAP Cloud SDK respectively.

So, install those dependencies by running the following commands:

• npm install soap
• npm install @sap-cloud-sdk/http-client
• npm install @sap-cloud-sdk/connectivity

NOTE: if you intend to deploy your application to Cloud Foundry later, you must also install the “passport” package, as the latest CDS version is enforcing security on bootstrap when deployed to production.

And, finally, to install the other dependencies from the original jump-started package.json you just run:

• npm install

And with that, you are now fully ready to start the development!

In a productive scenario, you usually would have more than one web service being manipulated throughout the application code, so it’s convenient to create a module with a function that facilitates the creation and handling of SOAP clients and can be largely reused.

Under the srv folder create a folder named lib and, in that folder, create a file named soap-service.js like demonstrated below:

Open-up that file and paste the following code snippet into it:

const soap = require('soap');
const client = require('@sap-cloud-sdk/http-client');
const connectivity = require('@sap-cloud-sdk/connectivity');

// Helper to create a soap service through the BTP destination service
async function getSoapService(service, wsdl, endpoint) {
    // Get the service reference
    var definition = cds.env.requires[service];
    // Get the destination data from BTP
    const dest = await connectivity.getDestination({ destinationName: definition.credentials.destination });
    // Get service endpoint
    const url = (dest.url.substr(dest.url.length-1,1) === '/') ? dest.url.substr(0,dest.url.length-1) : dest.url;
    endpoint.url = url + definition.credentials.path;

    // Create an httpClient which connects over the BTP destination
    var httpClient = {
        request: async function (url, data, callback, exheaders, exoptions) {
            client.executeHttpRequest(dest, {
                method: 'POST',
                url: url,
                data: data,
                headers: exheaders
            }, {...exoptions, fetchCsrfToken: false}).then((result) => {
                callback(null, result, result.data);
            }).catch((e) => {
                callback(e);
            });
        }
    }

    // Instantiate the service using that http client
    return soap.createClientAsync(wsdl, { httpClient: httpClient });
}

module.exports = {
    getSoapService
}

The code is quite simple: the getSoapService function receives the service name (defined in package.json) and the WSDL file location with the service description, then fetches the destination data from BTP and uses it to get the service endpoint and create an HTTP client, which is then passed to the createClientAsync function from the soap package, that returns a promise to get the actual SOAP client later in the application code.

Now, you must create a handler function which will invoke the web service method that returns the business users from S/4HANA Cloud as response.

In the lib folder, create a file named handlers.js like demonstrated below:

Open-up that file and paste the following code snippet into it:

const { getSoapService } = require('./soap-service');

let userReadServicePromise = null;
let userReadServiceEndpoint = { url: null };

(async function () {
    // Connect to external S/4HC SOAP service
    userReadServicePromise = getSoapService('UserRead', './srv/external/QUERYBUSINESSUSERIN.wsdl', userReadServiceEndpoint);
})();

/*** HANDLERS ***/

async function readBusinessUser(req) {
    try {
        // Get the SOAP client for the UserRead service
        const userReadService = await userReadServicePromise;
        userReadService.setEndpoint(userReadServiceEndpoint.url);

        // Set the parameters for the QueryBusinessUserIn method of the sevice
        const param = {
            BusinessUser: {
                PersonIDInterval: {
                    IntervalBoundaryTypeCode: 9,
                    LowerBoundaryPersonID: "0000000000"
                },
                BusinessPartnerRoleCodeInterval: {
                    IntervalBoundaryTypeCode: 9,
                    LowerBoundaryBusinessPartnerRoleCode: "000000"
                }
            },
            QueryProcessingConditions: {
                QueryHitsUnlimitedIndicator: true
            }
        };

        // Invoke QueryBusinessUserIn method asynchronously and wait for the response
        const resp = await userReadService.QueryBusinessUserInAsync(param);

        // Prepare the actual service response
        const busUsers = [];
        if (resp && resp[0] && resp[0].BusinessUser) {
            resp[0].BusinessUser.forEach(busUser => {
                busUsers.push({
                    ID: ((busUser.User) ? busUser.User.UserID : busUser.PersonID),
                    FirstName: busUser.PersonalInformation.FirstName,
                    LastName: busUser.PersonalInformation.LastName,
                    PersonFullName: busUser.PersonalInformation.PersonFullName,
                    BusinessPartnerRoleCode: busUser.BusinessPartnerRoleCode,
                    HasUser: ((busUser.User) ? true : false)
                });
            });
        }

        return busUsers;
    } catch (err) {
        req.error(err.code, err.message);
    }
}

module.exports = {
    readBusinessUser
}

Upon module loading, a promise to the service is created by the getSoapService function, which is, then, used in the readBusinessUser handler to get the actual SOAP client for the UserRead service referenced in package.json. The QueryBusinessUserIn method of the service is invoked asynchronously, passing a few required parameters (basically filters and query processing definitions), and the response is finally formatted into the expected CAP service response.

Now that you have the complete business logic of the application, you can create the CAP service definition to expose the data fetched from S4/HANA Cloud via a service entity and attach the handler function to its READ event.

In the srv folder, create a file named busers-service.cds like demonstrated below:

Open-up that file and paste the following code snippet into it:

namespace sap.extensions.soap.busers;

service BusinessUsers @(path : '/bussiness-users') {
    entity BusinessUser {
        ID : String(12);
        FirstName : String(128);
        LastName : String(128);
        PersonFullName : String(258);
        BusinessPartnerRoleCode : String(6);
        HasUser : Boolean;
    }
}
