Transport an SAP Fiori Application using SAP Continuous Integration and Delivery and SAP Cloud Transport Management

In this tutorial, you work with the following entities:

• SAP BTP global account and subaccounts: You have a source (DEV), and a test (trial) subaccount, as well as a central administrative (Central Services) subaccount.
• Git repository on GitHub: It contains the SAP Fiori application (Bookshop app) that you want to transport. You clone the repository to SAP Business Application Studio, and connect it to SAP Continuous Integration and Delivery service.
• SAP Business Application Studio (DEV Subaccount): Your development environment, connected to the Git repository. You use it to push source code changes to the repository.
• SAP Continuous Integration and Delivery service (Central Services subaccount): Monitors the Git repository for source code changes. When changes are detected, it automatically runs the configured pipeline, which builds an MTAR file from the source code and exports it to SAP Cloud Transport Management service.
• SAP Cloud Transport Management service (Central Services subaccount): Deploys a transport request available in the import queue of trial.

You’ll complete the following tasks:

1. Prepare your environment: Create a new subaccount, assign entitlements, subscribe to SAP Business Application Studio and SAP Continuous Integration and Delivery, configure required roles, set up a destination for SAP Cloud Transport Management, and fork the Bookshop sample Git repository containing the SAP Fiori application source code.
2. Set up the CI/CD and transport infrastructure: Configure a CI/CD pipeline and a transport landscape.
3. Develop and deploy changes: Make development changes in SAP Business Application Studio, push them to the Git repository, automatically trigger the CI/CD pipeline, and generate a transport request. Deploy the changes to your target trial subaccount.

In this step, you create a new DEV subaccount in the SAP BTP Trial global account, enable Cloud Foundry, and create a space.

If you work in SAP BTP Trial, use the DEV subaccount as the development subaccount, and the default trial subaccount as the target subaccount. The following steps show the creation of the DEV subaccount.

1. In the Account Explorer of your SAP BTP Trial global account, choose Create > Subaccount.



2. In the Create Subaccount dialog, enter a name, here DEV (1), select a region, here US East (2), and choose Create (3).



3. Open the new subaccount and choose Enable Cloud Foundry.



4. In the Enable Cloud Foundry dialog, choose Create.



5. Create a space in the Cloud Foundry org. Choose Create Space.



6. In the Create Space dialog, enter a space name, here DEV (1), and choose Create (2).



   If you want to create another subaccount, for example, a PRD subaccount, you can proceed accordingly. However, this is not possible in SAP BTP trial. The trial subaccount is the only subaccount that can be used to deploy the app.

   The result looks as follows: You have a Central Services subaccount where you’ve subscribed to SAP Cloud Transport Management service, and where you will subscribe to the Continuous Integration and Delivery service. Additionally, you have the DEV subaccount for app development and the trial subaccount for deploying and testing the app.



More information: Managing Subaccounts Using the Cockpit

In this step, you entitle the DEV subaccount to use SAP Business Application Studio and subscribe to it.

1. In the DEV subaccount, go to Entitlements (1). Filter for Business to verify that there’s no entitlement for SAP Business Application Studio (2). Choose Edit (3).



2. Choose Add Service Plans.



3. In the Add Service Plans dialog, enter SAP Business to filter the entries (1). Select SAP Business Application Studio (2). Select the trial (Application) plan (3), and choose Add 1 Service Plan (4).



4. The entitlement for SAP Business Application Studio is now added to the subaccount. Choose Save.



5. The entitlement is saved.



6. To subscribe to the service, go to Services > Service Marketplace (1). Find SAP Business Application Studio, and choose Create from its context menu (2).



7. In the New Instance or Subscription dialog, the service and plan are pre-selected. Choose Create.



8. When the subscription is finished, SAP Business Application Studio shows the status Subscribed.



In general, to use the service, you need to grant the required user permissions Business_Application_Studio_Developer to your user as described in Manage Authorizations and Roles. If you run the tutorial in SAP BTP trial, however, the subaccount administrator role in DEV is sufficient for the purpose of the tutorial.

More information: Set Up SAP Business Application Studio

In this step, you subscribe to SAP Continuous Integration and Delivery in the Central Services subaccount. If you are using SAP BTP trial, the trial subaccount is entitled for SAP Continuous Integration and Delivery by default. You first need to move the entitlement from trial to Central Services.

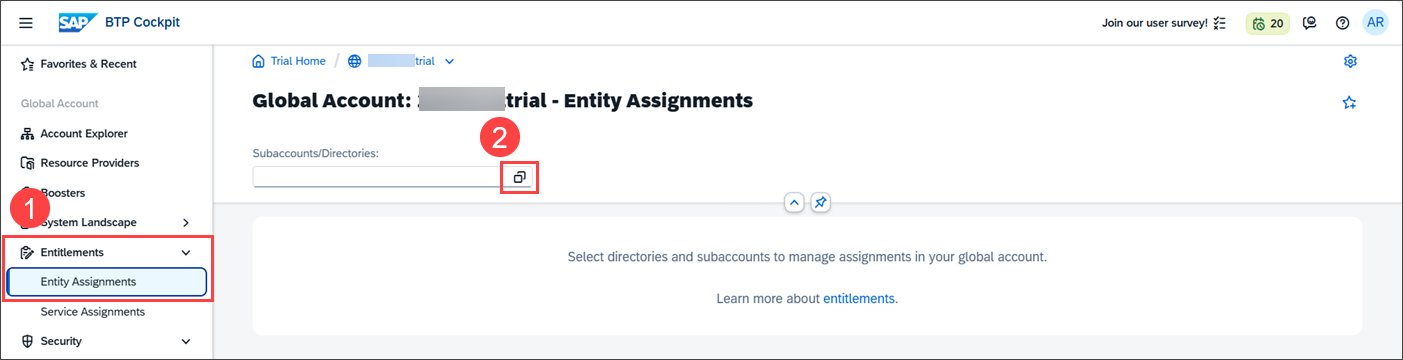

1. In the global account, choose Entitlements > Entity Assignments (1). Choose the subaccounts selector icon (2).



2. In the Select Subaccounts and Directories dialog, select the Central Services and trial subaccounts (1). Choose Select (2).

   It’s sufficient to select only Central Services and trial. However, the following screenshots show all three subaccounts selected.



3. In the Entity Assignments view, filter for continuous in both subaccounts (1) to verify that there’s an entitlement to Continuous Integration & Delivery service in the trial subaccount. Choose Edit for trial (2).



4. To remove the Continuous Integration & Delivery service plan assignment, choose the × in the Actions column.



5. Choose Save to confirm the removal of the entitlement from the trial subaccount.

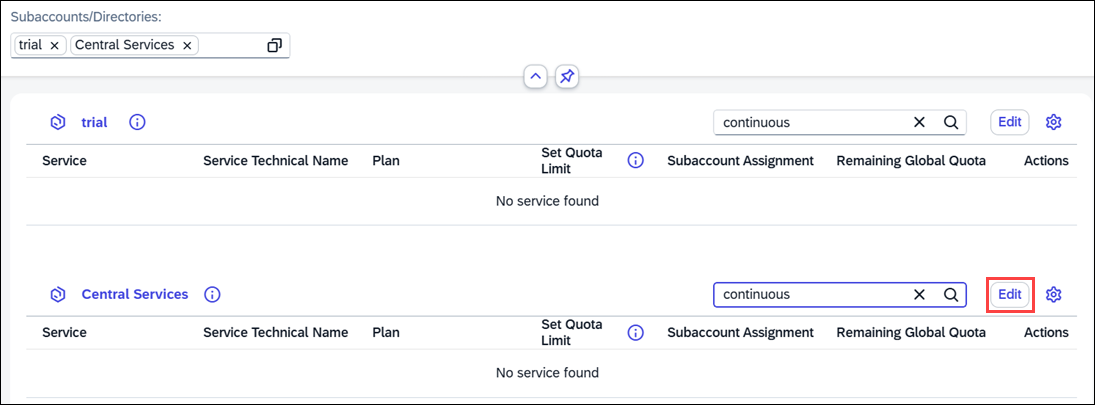

6. Now assign the entitlement to the Central Services subaccount. Choose Edit for Central Services (1).

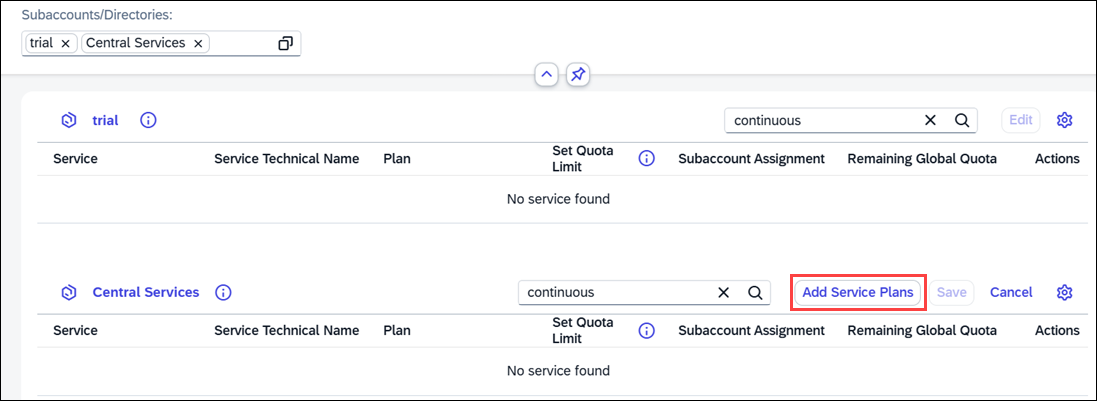

7. Choose Add Service Plans.

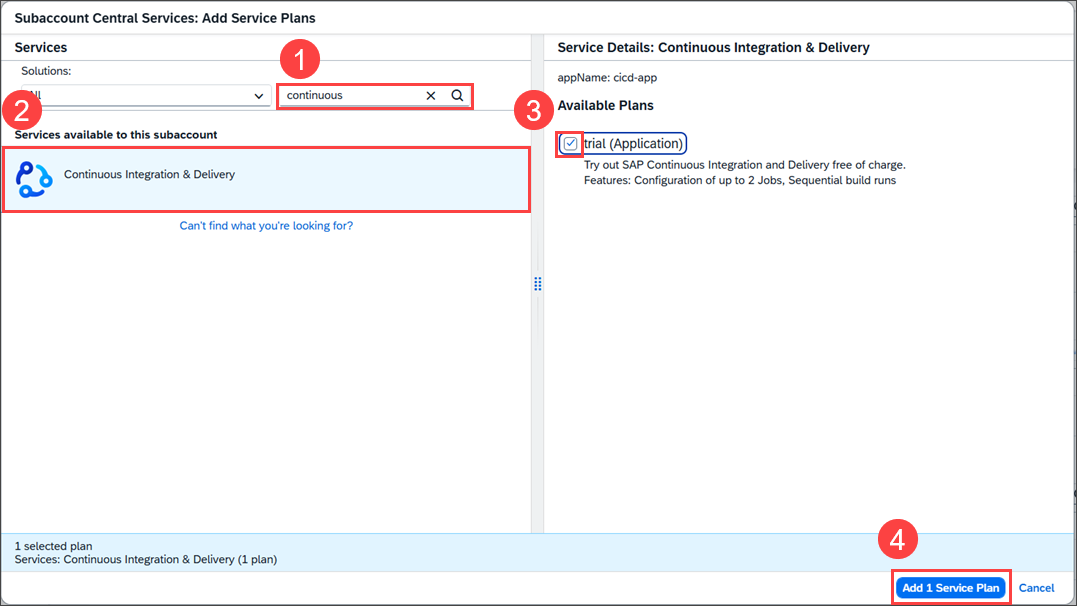

8. In the Add Service Plans dialog, enter continuous (1). Select Continuous Integration & Delivery from the list (2). Select the trial (Application) plan (3), and choose Add 1 Service Plan (4).



9. Choose Save to confirm adding the entitlement to the Central Services subaccount.



   You can now subscribe to SAP Continuous Integration and Delivery.

10. In the Central Services subaccount, choose Services > Service Marketplace (1). In the Search field, enter Continuous (2). From the context menu on the tile, choose Create (3).



11. In the New Instance or Subscription dialog, keep the trial plan selected, and choose Create.



    You are now subscribed to SAP Continuous Integration and Delivery.



Before you proceed to the UI of the service, assign the required role collections to your user and the users who will work with it.

More information: Enabling the Service

In this step, you assign the required role collections to your user so that you can access SAP Continuous Integration and Delivery.

1. From the navigation pane, choose Security > Users (1). Choose your user name (2). In the details view of your user, select the Role Collections tab (3). Choose Assign Role Collection (4).



2. From the role collection list, select CICD Service Administrator and CICD Service Developer (1). Confirm your choice with Assign Role Collection (2).



More information: Assigning Roles and Permissions

You’ve completed the configuration steps for SAP Continuous Integration and Delivery. In the next step, you prepare the source code repository that you will use for the app development. Afterwards, you will go to SAP Continuous Integration and Delivery service to add this repository and create a pipeline.

In this step, you fork the GitHub Bookshop Sample Repository so that it is available for cloning in SAP Business Application Studio in a later step.

1. Log in to your GitHub account and go to the Bookshop Sample Repository on GitHub. On the main page of this repository, choose Fork on the top right.



2. Select an Owner that matches the GitHub account that you want to use for this tutorial (1). You can leave all other information unchanged. Select Create fork (2).



More information: Working with forks

In this step, you add the forked GitHub repository to SAP Continuous Integration and Delivery to prepare it for pipeline setup.

1. In your Central Services subaccount, go to Services > Instances and Subscriptions (1). To open the service’s user interface, select Continuous Integration & Delivery in the Subscriptions overview (2).



2. The user interface opens on the Jobs tab, which is initially empty. Select the Repositories tab. No repositories are connected. To connect the SAP Continuous Integration and Delivery service with the forked repository, choose the + (Add repository) button.



3. Before you continue adding the repository in SAP Continuous Integration and Delivery, go to the forked Bookshop repository on GitHub, and copy the clone URL that you will need in the next step. Choose <> Code (1) and the Copy URL to Clipboard button (2).



4. Back in the Add Repository dialog in SAP Continuous Integration and Delivery service, enter a Name for the repository, here BookshopSample, and paste the Clone URL you just copied.



   Don’t close the dialog yet. In the next step, you’ll add a GitHub webhook credential.

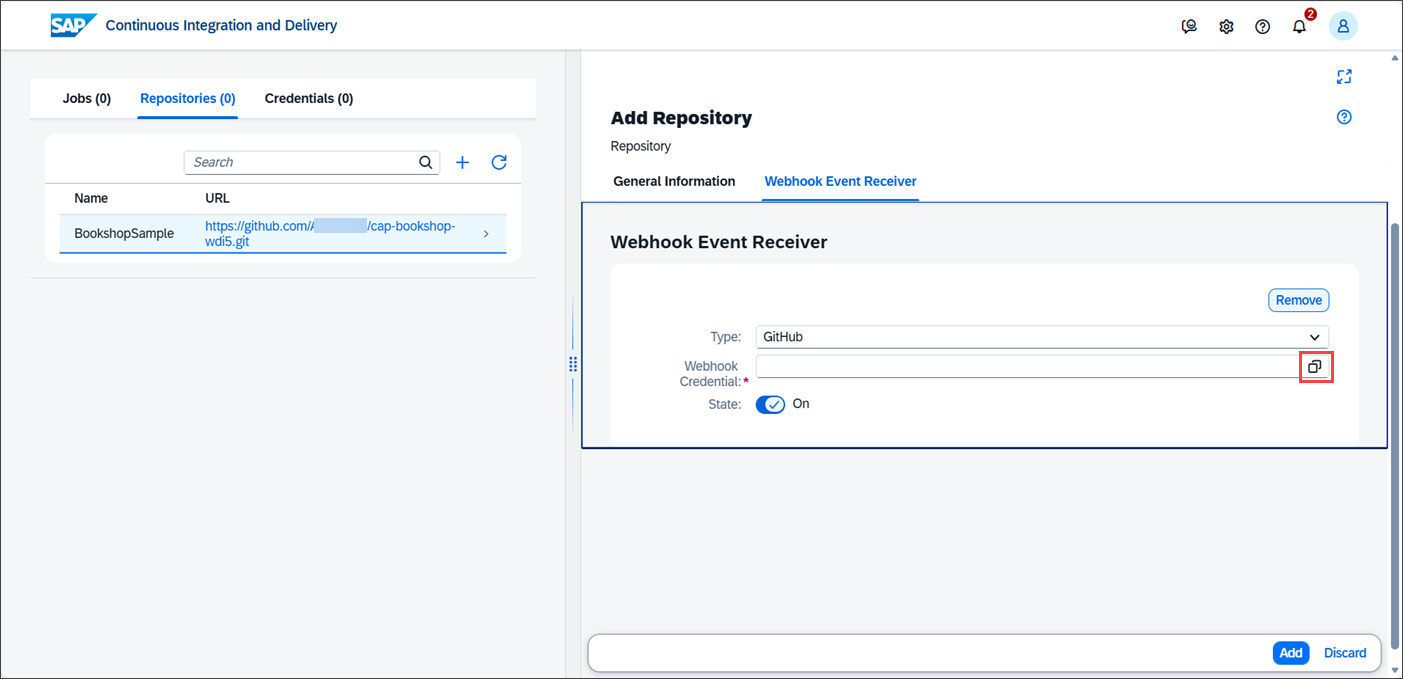

5. To create a webhook credential, in the Webhook Event Receiver section, choose the multiselect button.



6. The Select Credentials dialog opens. Choose + (Create credentials).

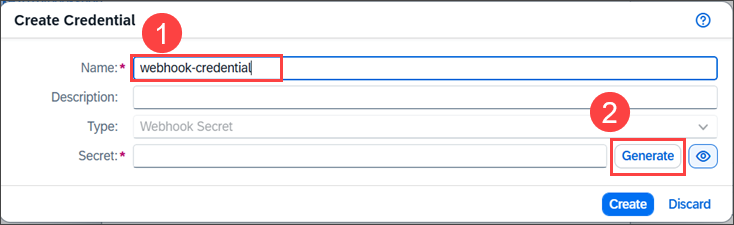

7. In the Create Credentials dialog, enter a name for the webhook credential, here webhook-credential (1). To create a secret, choose Generate (2).

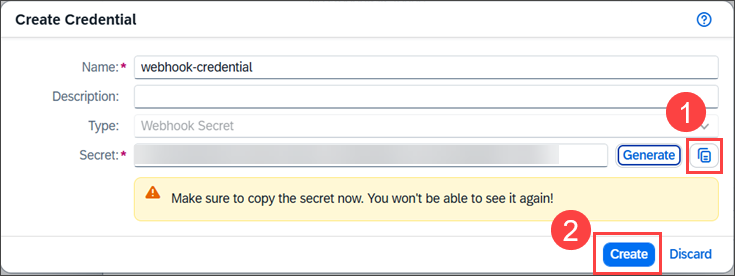

8. Use the button to copy the secret (1). Note down the secret, as it will not be shown again. Choose Create (2).



   A toast message confirms that the credential was created.

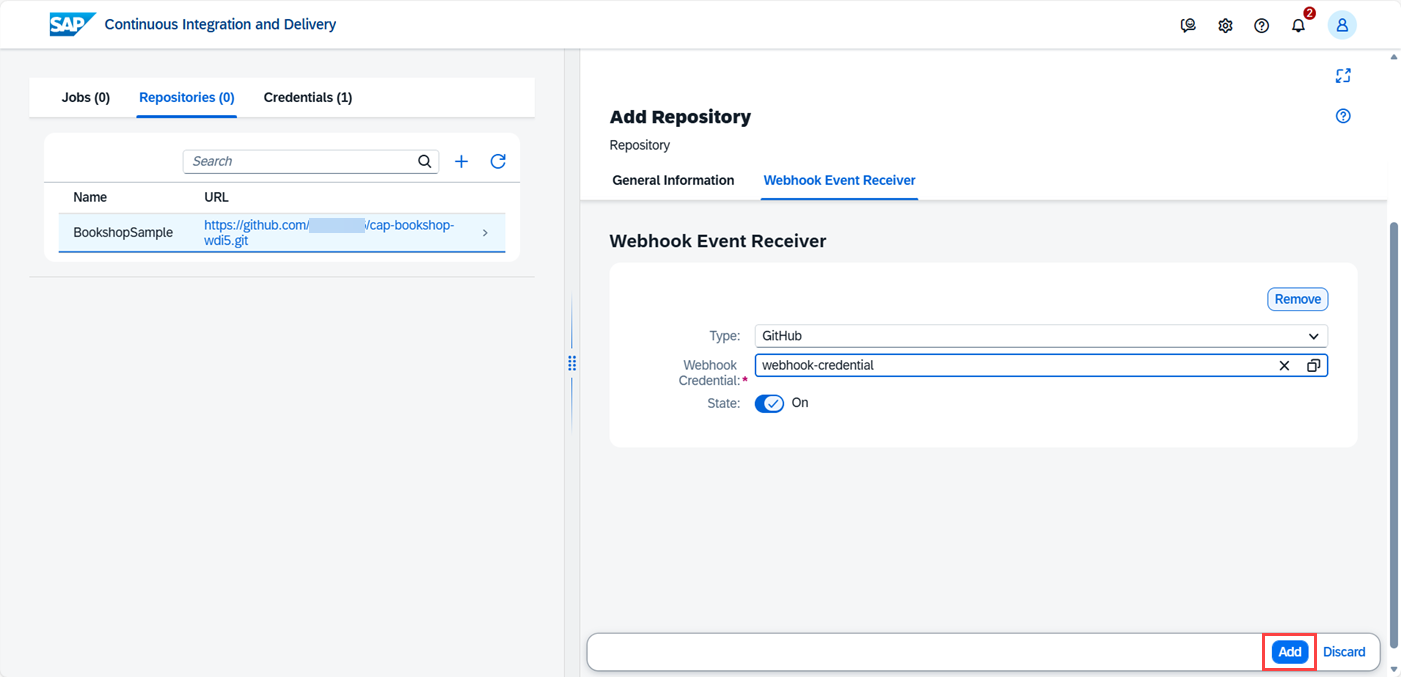

9. To add the repository, choose Add.



10. The repository was added to the service and appears in the repositories overview. Copy the Payload URL in the Webhook Data section and note it down.



More information: Add a Repository

In this step, you add a webhook to your GitHub repository that automatically triggers deployments upon changes.

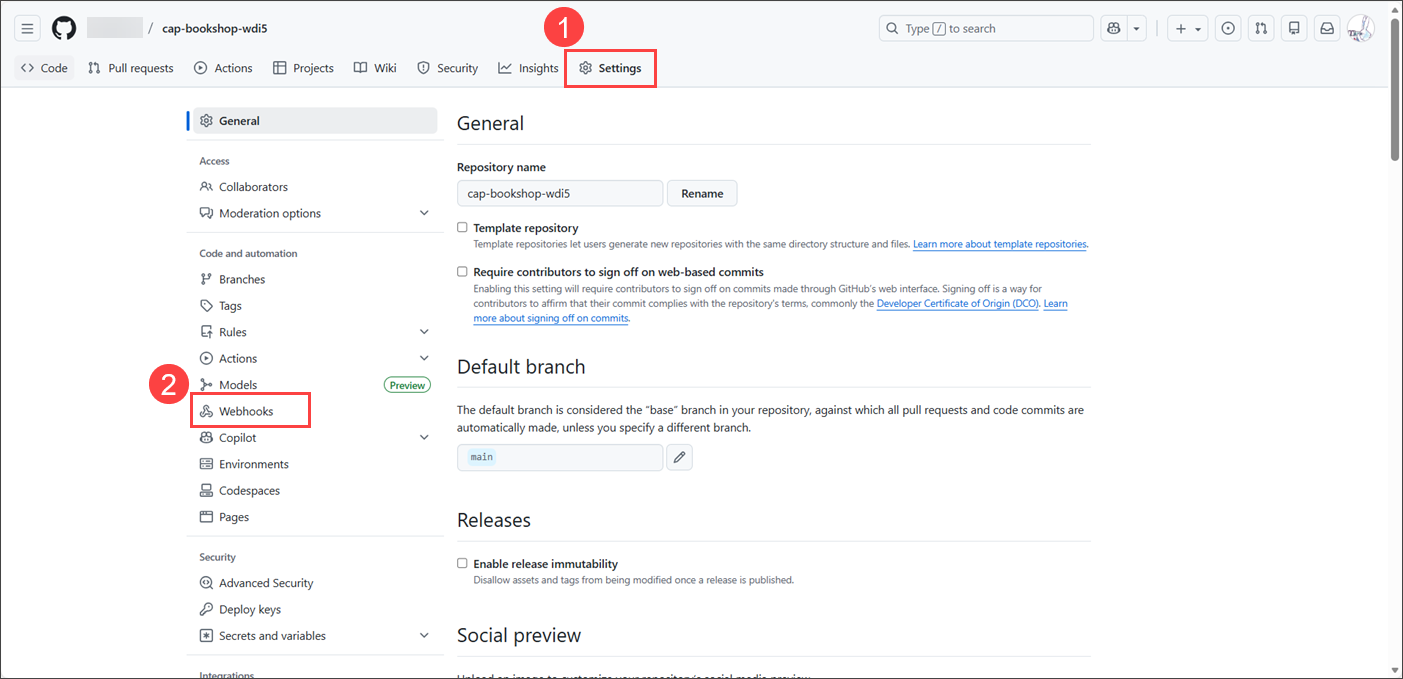

1. In your repository in GitHub, go to the Settings tab (1). Choose Webhooks (2).

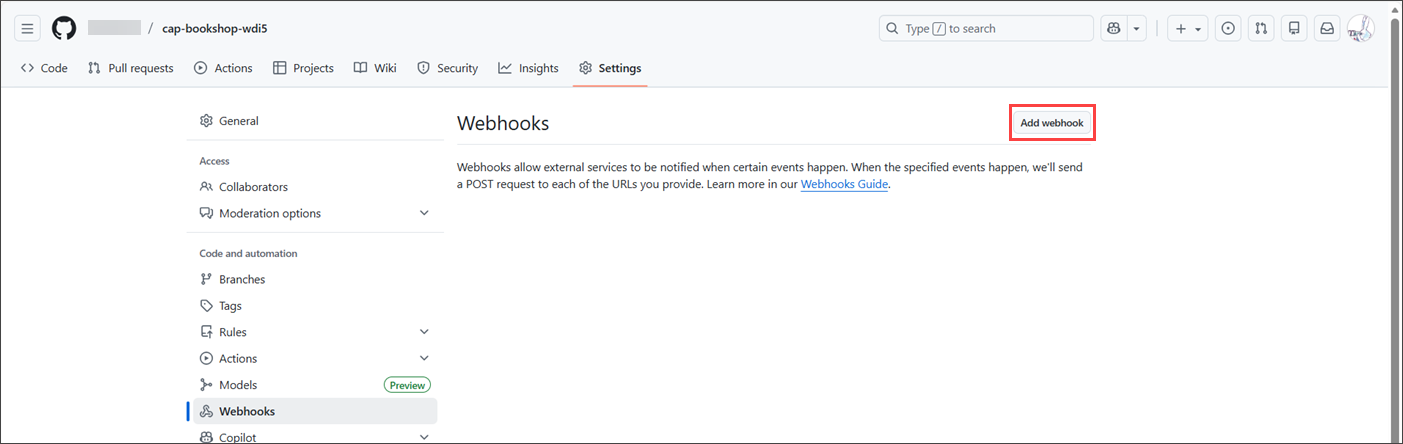

2. Choose Add webhook.



3. Enter the Payload URL you copied from the service (1). Select the Content type as application/json (2). Enter the Secret you copied from the Webhook Data in SAP Continuous Integration and Delivery (3). Leave all other settings at their default values. Choose Add webhook (4).

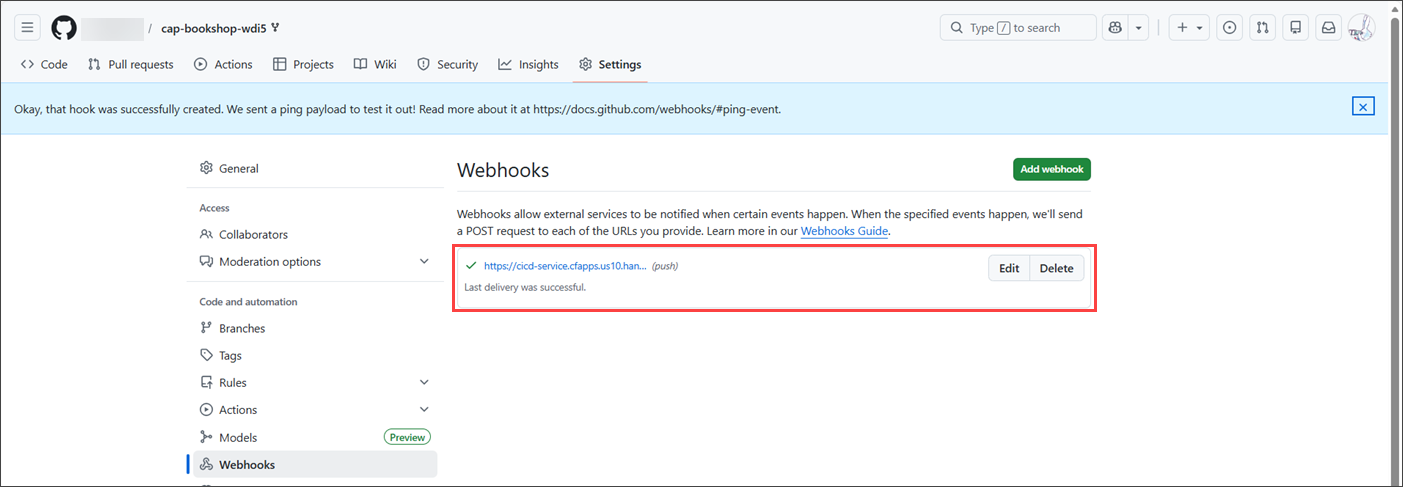

   The result should show the message Last delivery was successful.



More information: Creating Webhooks

In this step, you create a pipeline job in SAP Continuous Integration and Delivery and integrate Cloud Transport Management into that job.

Create a Pipeline Job

1. In SAP Continuous Integration and Delivery, go to the Jobs tab and choose + (Create job).



2. In the General Information section of the Create Job pane, enter the following values:

   Field	Value
   Name	Choose a unique name for your job. We recommend using a name that contains both your GitHub repository name and branch, for example bookshop-main-job.
   Repository	Select the repository you just created (if not already selected).
   Branch	Enter main.
   Pipeline	Keep the default Cloud Foundry Environment selected.



You can keep all values in the Build stage unchanged. Don’t close the dialog yet. In the next step, you’ll integrate SAP Cloud Transport Management into the job.

Integrate Cloud Transport Management into the Job

To integrate Cloud Transport Management into your job, in the Release stage of your job, you need to provide the following information:

• Name of the transport node that’s used for the upload to SAP Cloud Transport Management
• Service key of Cloud Transport Management for authentication

1. Scroll down to the Release stage in your job details. Choose the + button next to Cloud Transport Management to open the section.



2. Enter DEV as the name of the initial transport node that you will create later in SAP Cloud Transport Management service (1). To add the service key, choose the value help button (2).



3. As a result, the Select Credentials window opens. Choose the + button, which opens the Create Credential dialog.



4. In another browser window, in the Central Services subaccount, go to Services > Instances and Subscriptions (1). In the Instances area, find the Service Key of the Cloud Transport Management instance. Choose the 1 key link (2).



5. Choose Copy JSON to copy the entire service key.



6. Return to the Create Credential dialog in SAP Continuous Integration and Delivery service. Enter a name for the service key, for example ctms-servicekey (1), paste the copied service key into the Service Key text box (2), and choose Create (3).



7. To create the job, choose Create.



   You’ve successfully created your first CI/CD job with the Build and Release stages enabled.



Changes committed to your GitHub repository will be automatically picked up by your delivery pipeline, built and put into the import queue of SAP Cloud Transport Management service. However, before a transport request can be received by SAP Cloud Transport Management service, you need to create your transport landscape in the next step.

More information: Configuring Jobs and Integrate Cloud Transport Management into Your Job

You’ve already set up SAP Cloud Transport Management service in the Central Services subaccount as part of the prerequisite tutorial Get Started with SAP Cloud Transport Management. In this step, you create a destination in the Central Services subaccount that SAP Cloud Transport Management uses to deploy content to the trial subaccount. You will reference it in your trial node when you create the transport landscape in SAP Cloud Transport Management service in the next step.

1. Go to the Central Services subaccount.

2. In the navigation area, choose Connectivity > Destinations (1). Choose Create (2).



3. In the Create New Destination dialog, choose From Scratch (1), and Create (2).



4. Before filling in the destination form, open the trial subaccount in another browser window. In the subaccount overview, choose the Cloud Foundry Environment tab. Note down the following values, as you will need them to construct the destination URL:

   Value	How to use it
   API Endpoint	Remove https://api.cf. — the remainder is the <domain> placeholder used in the URL and Token Service URL fields.
   Org Name	Use as the <myorg> placeholder in the URL field.
   Space Name	Use as the <myspace> placeholder in the URL field.



5. Back in the Create Destination dialog in the Central Services subaccount, select or enter the following data (1), and choose Create (2):

   Field	Value
   Name	Enter any name, here Deploy-to-trial.
   Type	HTTP
   Proxy Type	Internet
   URL	Specify the URL to the SAP Cloud Deployment service in the trial subaccount. Use this pattern, replacing the placeholders with the values from the previous step: https://deploy-service.cf.<domain>/slprot/<myorg>/<myspace>/slp
   Authentication	Select OAuth2Password.
   Client ID	Enter cf.
   Client Secret	Select the Set empty checkbox.
   Token Service URL	Enter the URL to the Cloud Foundry UAA (CF UAA) authentication service. Use this pattern, replacing the placeholder with the domain value from the previous step: https://login.cf.<domain>
   User	Enter an email address of the user that is used for the deployment. For the tutorial, you can use your email address.
   Password	Enter your password.



   The destination is created. Select the destination to see its details.

6. Choose Check Connection.



7. The destination check is expected to be successful. Note that this doesn’t mean that the deployment will succeed. You’ll need to run a test transport in a later step.



More information: Creating Destinations Using SAP Cloud Deployment Service with OAuth2Password Authentication

In this step, you configure the transport landscape in SAP Cloud Transport Management by creating two transport nodes and a route to connect them.

1. Open the UI of SAP Cloud Transport Management Service in the Central Services subaccount where you have subscribed to the service, and open the Instances and Subscriptions view (1). In the Subscriptions area, choose the Cloud Transport Management link (2).



2. The overview page of SAP Cloud Transport Management opens. Go to the Landscape Visualization.

   You will now create a new transport landscape. This includes the creation of two transport nodes (DEV and trial) and a transport route to connect them. To create the first (DEV) node, choose the + (Create a Node) button.



3. In the Create Node dialog, select or enter the following data (1), and choose OK (2).

   Field	Value
   Name	Enter any name, here DEV.
   Allow Upload to Node	Select the checkbox.
   Forward Mode	Keep the default Pre-Import selected.
   Virtual Node	Select the checkbox, since this is the first node.



4. To create the second (trial) node, choose the + button again.

5. In the Create Node dialog, select or enter the following data (1), and choose OK (2).

   Field	Value
   Name	Enter any name, here trial.
   Allow Upload to Node	Do not select the checkbox.
   Content Type	Select Multi-Target Application.
   Destination	Select Deploy-to-trial.



6. To create routes between the transport nodes, select DEV as the source node, and choose the connector icon from the context menu.



7. In the Create Route dialog, enter or select the following data (1), and choose OK (2).

   Field	Value
   Name	Enter any name, here DEV-to-trial.
   Source Node	Keep DEV selected.
   Target Node	Select trial.



   The result should look as follows:



You’ve set up the transport landscape in SAP Cloud Transport Management.

More information: Configuring the Landscape

In this step, you open SAP Business Application Studio, clone the Bookshop sample repository, make small code changes, and release them to your Git repository.

1. In the DEV subaccount, go to Services > Instances and Subscriptions (1). To open SAP Business Application Studio, select the link (2).



2. If this is the first time you open SAP Business Application Studio, you need to create a development space first. Choose Create Dev Space.



3. Enter a name for the new dev space, here Dev (1). Choose Full Stack Cloud Application (2). Choose Create Dev Space (3).



4. It takes a while until the dev space is created. During this time, you see that it’s starting. When it’s created, the status changes to Running. Select the Dev link to start it.



5. Choose Clone from Git.



6. Enter the clone URL of your forked repository. Press Enter.



7. Confirm that you want to open the cloned repository.



8. Now that your workspace was created, you can start development.



9. You will add additional sample data to your application. In your CAP-BOOKSHOP-WDI5 workspace, go to db > data > sap.capire.bookshop-Books.csv.



10. Add the following entries (1).

    Text Copy

    275;The Phoenix Project;"The Phoenix Project: A Novel About IT, DevOps, and Helping Your Business Win is a business novel by Gene Kim, Kevin Behr, and George Spafford. It presents a fictional case study of a troubled IT organization and its journey towards DevOps, emphasizing the importance of collaboration, automation, and continuous improvement.";180;33;14.99;USD;19
    276;Italian Journey;"Italian Journey, a travelogue written by Johann Wolfgang von Goethe, recounts his travels through Italy between 1786 and 1788. The work is notable for its detailed descriptions of the Italian landscape, culture, and art, providing a valuable historical perspective.";190;44;11.50;EUR;13
    277;Life 3.0;"Life 3.0: Being Human in the Age of Artificial Intelligence is a non-fiction book by Swedish-American physicist and cosmologist Max Tegmark. The book explores the implications of artificial intelligence and discusses potential scenarios of advanced AI impacting human society.";200;55;19.99;USD;16
    278;A Transport Wizard's Tale;"A Transport Wizard's Tale: A tribute to the players who walked every street, spun every PokéStop, and caught every Pokémon. In memory of harry2ndstreet, whose adventures ended way too early.";42;10;0.00;USD;0

    To release them to your Git repository, open the Source Control on the side panel (2).




11. Stage your changes.



12. To commit your changes, enter a commit message, here new book entries (1), and choose Commit (2).



13. To push the changes to remote, choose Sync Changes.



14. Confirm the push to the main branch.



15. Choose the button to copy the verification code and open GitHub.



16. On the GitHub Device Activation page, choose Continue.



17. On the Authorize your device page, paste the verification code you copied in the step 16 (1) and choose Continue (2).



18. On the Authorize SAP Business Application Studio page, choose Authorize SAP.



    GitHub confirms that your device is now connected.



19. Go back to SAP Business Application Studio, and choose one of the options to save your credentials.



20. When SAP Business Application Studio asks you whether you want to regularly fetch changes from remote, you can answer with No.

    Afterwards, your code changes are added to your Git Repository.

21. Go to your repository on GitHub and verify that the changes were added.



You have now created a development project in SAP Business Application Studio. You’ve made code changes, and released them to GitHub.

In the next step, you check that this release triggered your pipeline and created a new transport request in SAP Cloud Transport Management service.

More information: SAP Business Application Studio: Developer Guide

In this step, you verify that the pipeline job ran successfully in SAP Continuous Integration and Delivery and that a transport request was created in SAP Cloud Transport Management.

1. In SAP Continuous Integration and Delivery, on the Jobs tab, check that there’s a success status in the Latest Build column. Choose the row to open the job details.

   If there’s no success status, it’s possible that the job is still running. You can still choose the row to open the log.



2. Choose the finished build result to check the execution log.



3. Browse through the different stages and choose the Release stage.



4. In the log file, search for createdTransportRequestId.



   This transport will be available in SAP Cloud Transport Management.

5. Open SAP Cloud Transport Management, and go to Transport Nodes (1). To open the import queue of trial, click on the arrow (2).



6. Make sure that the transport request number corresponds to the one that you saw in the log of the pipeline job, here 481. The request is in status Initial.



You’ve now verified the pipeline and release steps. The transport is available in SAP Cloud Transport Management for your delivery to trial.

More information: Running and Monitoring CI/CD Jobs

In this step, you import the transport request from the import queue of the trial node into the target subaccount.

1. In SAP Cloud Transport Management, open the import queue of the trial node. The transport request created by the pipeline is in the import queue with the status Initial. Choose Import All.



2. Confirm the import.



3. The import is running. The status of the transport request shows that the import is in progress.



4. When the import finishes, the transport request status changes to Succeeded. To review the import log, choose the log icon.



5. The log of the transport request shows the Export to Node and Import to Node actions, including the destination details and the entity that was deployed.



6. When you scroll down, you see that the bookshop application was deployed successfully. The final entry confirms that the import ended with status Success.



7. To verify the deployment, go to the trial subaccount in SAP BTP cockpit (1). In the navigation area, choose Cloud Foundry > Spaces (2). The dev space shows 1 started application. Choose the tile to open the dev space. (3).



8. The bookshop-srv application is available under Applications in the dev space, ready to be tested.



More information: Import Transport Requests

⚡🌋 Congratulations ⚡🌴! You’ve successfully completed the tutorial Transport an SAP Fiori Application with SAP Continuous Integration and Delivery Service and SAP Cloud Transport Management.
