Consume SAP BTP Services from Any Hyperscaler

To configure the access to your Kubernetes cluster, you have to set the KUBECONFIG environment variable to point to the location where the KUBECONFIG file you have downloaded from your Kubernetes cluster. To do that, open a command line prompt on your computer and type in the following command:

Replace <KUBECONFIG_FILE_PATH> with the file path of the KUBECONFIG file you have downloaded, including the file name and extension.

Open a command line prompt on your computer. In the command line screen, type in the following:

export KUBECONFIG=<KUBECONFIG_FILE_PATH>

export KUBECONFIG=<KUBECONFIG_FILE_PATH>

$ENV:KUBECONFIG="<KUBECONFIG_FILE_PATH>"

set KUBECONFIG="<KUBECONFIG_FILE_PATH>"

Test the configuration by running this command:

kubectl config get-contexts

This should return a context from the kubeconfig file.

Cert-manager is used to set up the certificates needed for internal communication between the Kubernetes API server and the deployment of the SAP BTP service operator in your cluster. For more information about cert-manager, see cert-manager documentation.

Open a command line prompt on your computer and type in the following command:

kubectl apply -f https://github.com/jetstack/cert-manager/releases/download/v1.5.3/cert-manager.yaml

Consume services from a global account and a subaccount in SAP BTP.

As subaccounts are bound to specific regions, choose or create a subaccount located close to your Kubernetes cluster to prevent latency drawbacks.

SAP BTP service operator allows you to provision and manage service instances and service bindings of SAP BTP services so that your Kubernetes-native applications can access and use SAP BTP services from the cluster.

1. Go to https://account.hanatrial.ondemand.com or https://account.hana.ondemand.com and log in to the SAP BTP cockpit.

2. Choose your global account and then in the Account Explorer page, choose the tile of your subaccount.



3. Choose Services > Service Marketplace, and in the Service Marketplace page, choose the Service Manager service tile.

4. From the Service Manager page, choose Create and follow the steps in the wizard to create a service instance.



5. On the Basic Info step:

   • In the Service dropdown menu, select Service Manager

   • In the Plan dropdown menu, select service-operator-access

     If you can’t see this service plan, you need to entitle your subaccount to use the Service Manager service. For more information about how to entitle a service to a subaccount, see: Configure Entitlements and Quotas for Subaccounts.

   • In the Runtime Environment dropdown menu, select Other

   • In the Instance Name field, enter btpserviceoperator

6. Choose Create.



7. Choose View Instance



8. To create a binding for the btpserviceoperator service instance, choose Create.



9. In the Binding Name field enter operatorbinding and choose Create.



10. Choose View Credentials.



11. Copy the credential information by choosing Download or Copy JSON.



    This is an example of the binding object created with the default credentials type:

    JSON Copy

     {
        "clientid": "xxxxxxx",
        "clientsecret": "xxxxxxx",
        "url": "https://mysubaccount.authentication.xxx.hana.ondemand.com",
        "xsappname": "<name>",
        "sm_url": "<service_manager_URL>"
     }

12. Deploy the SAP BTP service operator in the cluster using the obtained access credentials.

helm upgrade --install sap-btp-operator https://github.com/SAP/sap-btp-service-operator/releases/download/<release>/sap-btp-operator-<release>.tgz \
--create-namespace \
--namespace=sap-btp-operator \
--set manager.secret.clientid='<clientid>' \
--set manager.secret.clientsecret='<clientsecret>' \
--set manager.secret.url='<sm_url>' \
--set manager.secret.tokenurl='<url>'

helm upgrade --install sap-btp-operator https://github.com/SAP/sap-btp-service-operator/releases/download/<release>/sap-btp-operator-<release>.tgz \
--create-namespace \
--namespace=sap-btp-operator \
--set manager.secret.clientid='<clientid>' \
--set manager.secret.clientsecret='<clientsecret>' \
--set manager.secret.url='<sm_url>' \
--set manager.secret.tokenurl='<url>'

helm upgrade --install sap-btp-operator https://github.com/SAP/sap-btp-service-operator/releases/download/<release>/sap-btp-operator-<release>.tgz --create-namespace --namespace=sap-btp-operator --set manager.secret.clientid="<clientid>" --set manager.secret.clientsecret="<clientsecret>" --set manager.secret.url="<sm_url>" --set manager.secret.tokenurl="<url>"

helm upgrade --install sap-btp-operator https://github.com/SAP/sap-btp-service-operator/releases/download/<release>/sap-btp-operator-<release>.tgz \
--create-namespace \
--namespace=sap-btp-operator \
--set manager.secret.clientid='<clientid>' \
--set manager.secret.clientsecret='<clientsecret>' \
--set manager.secret.url='<sm_url>' \
--set manager.secret.tokenurl='<url>'

Replace the release version of SAP BTP service operator, clientid, clientsecret, sm_url, url with the credentials you have copied from the service binding.

For the list of the available SAP BTP service operator releases, see Available Releases. To know more about SAP BTP service operator, see Consuming SAP BTP Services in Kubernetes with SAP BTP Service Operator.

Test the configuration by running this command

kubectl get pods -n sap-btp-operator

This should return the status of sap-btp-operator configuration.

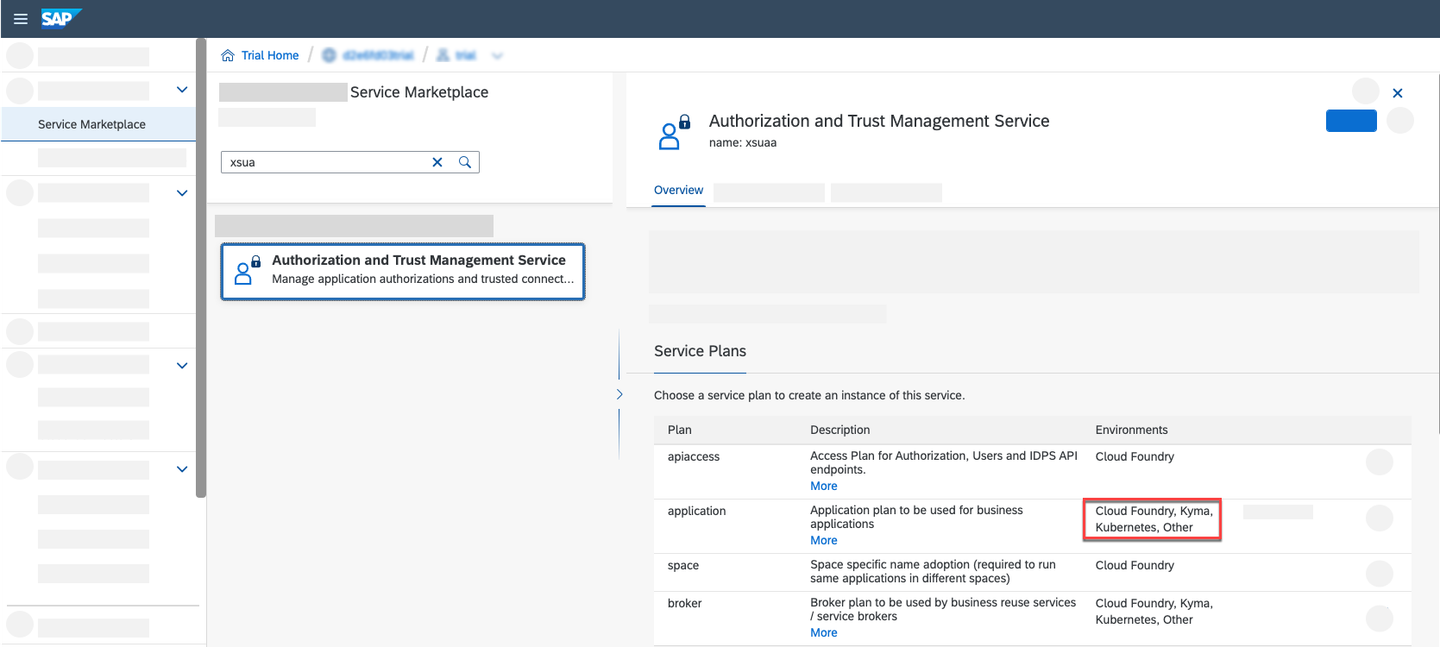

In the fioriapp sample application, the Destination and the SAP Authorization & Trust Management services will be consumed using the SAP BTP service operator. To use these SAP BTP services you have to create the respective service instances and service bindings. Use the createservice.yaml which will create the destination service instance with plan lite and the xsuaa service instance with plan application.

1. The hyperscaler applications can be found in the [btp-hyperscaler-extension] (https://github.com/SAP-samples/btp-hyperscaler-extension) repository. Within the repo you can find each of their Deployment files within the respective folder.

2. Download the code by choosing the green Code button and then choosing one of the options to download the code locally.

   You can instead run the following command within your CLI at your desired folder location:

   Shell/Bash Copy

   git clone https://github.com/SAP-samples/btp-hyperscaler-extension

3. Create your own sapfiori namespace in your Kubernetes cluster.

   Shell/Bash Copy

   kubectl create namespace sapfiori

4. create the destination service instance with plan lite and the xsuaa service instance with plan application by running the below command.

   Shell/Bash Copy

   kubectl apply -n sapfiori -f https://raw.githubusercontent.com/SAP-samples/btp-hyperscaler-extension/master/k8s/createservice.yaml

   The create service file is represented as declarative YAML object which describes what you want to run inside your namespace. You can find the file at /btp-hyperscaler-extension/master/k8s/createservice.yaml.

5. Check that the status of the service instance in your cluster by using the following command:

   Shell/Bash Copy

   kubectl get serviceinstances -n sapfiori

   This should return the status of created service instances.

   NAME	OFFERING	PLAN	STATUS	READY	AGE
   destination-instance-fiori	destination	lite	Created	True	##
   xsuaa-instance-fiori	xsuaa	application	Created	True	##

   To know more about consuming services using SAP BTP service operator Working with SAP BTP Service Operator.

To build and deploy the fioriapp sample application in your cluster, you have to create a pod, which encapsulates the container and ensures that a specified quorum of running instances is fulfilled. To do that, use the deployment.yaml.

1. Build the docker image of the fioriapp.

   • cd btp-hyperscaler-extension/basicfioriapp

   • docker build . -t <docker-username>/fioriapp -f Dockerfile

   Replace <docker-username> with your username

2. Push the docker image of the fioriapp to your Container Image Library.

   • docker push <docker-username>/fioriapp

   Replace <docker-username> with your username

3. Update the docker image in the ./btp-hyperscaler-extension/k8s/deployment.yaml file. Line no 21

   • Replace <docker-username> with your username

4. Execute the below command to deploy the application into hyperscaler.

   Shell/Bash Copy

   kubectl apply -n sapfiori -f https://raw.githubusercontent.com/SAP-samples/btp-hyperscaler-extension/master/k8s/deployment.yaml

   The deployment file is represented as declarative YAML object which describes what you want to run inside your namespace. You can find the file at /btp-hyperscaler-extension/master/k8s/deployment.yaml.

5. Execute the following command to check the deployed application pod status

   Shell/Bash Copy

   kubectl get pods -n sapfiori

   This should return the status of deployed application.

   NAME	READY	STATUS	RESTART	AGE
   fioriapp-##-##	1/1	Running	##	##

Congratulations! You have successfully completed the tutorial.
