Use Pre-Trained Tensorflow Models with a GPU in SAP AI Core

Create a resource group with ID tf-demo. You may use any existing resource group or even create multiple resource groups with different IDs.

response = ai_core_client.resource_groups.create("tf-demo")

List all the resource groups IDs to confirm creation.

response = ai_core_client.resource_groups.query()

for rg in response.resources:
    print(rg.resource_group_id)

1. Install the AWS CLI client. Download here.

2. Login to AWS using your AWS CLI.

   Enter your AWS credentials. You can leave the Default output format entry blank. Press enter.

   Shell Copy

   aws configure



3. Download and save the following model files in your local system.

   These files are generated locally. They contain embeddings and other settings of the Tensorflow model which you will deploy.

   File	Download
   model.h5	LINK to ZIP
   max_pad_len.txt	LINK
   label_endcoded_classes.npy	LINK
   tokens.json	LINK to ZIP

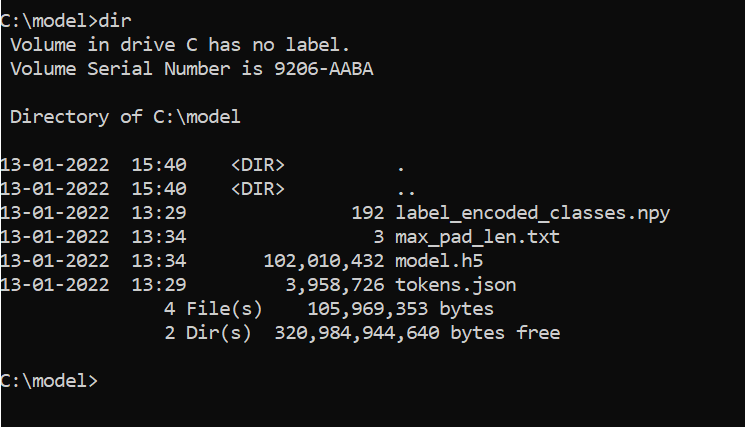

   After download, your directory should look like the following:



4. Upload all model files to your AWS S3 bucket. Edit and run the following commands.

   BASH[1-4] Copy

   aws s3 cp model.h5 s3://<YOUR_BUCKET_ID>/movie-clf/model/
   aws s3 cp max_pad_len.txt s3://<YOUR_BUCKET_ID>/movie-clf/model/
   aws s3 cp label_encoded_classes.npy s3://<YOUR_BUCKET_ID>/movie-clf/model/
   aws s3 cp tokens.json s3://<YOUR_BUCKET_ID>/movie-clf/model/



5. Verify your AWS S3 files upload.

   BASH[1] Copy

   aws s3 ls s3://<YOUR_BUCKET_ID>/movie-clf/model/

   It should look like the following:



Create an object store secret to connect your AWS S3 bucket to SAP AI Core. You can create multiple object store secrets.

Replace the following with your credentials and execute.

Note that the parameter path_prefix should point to the parent folder of the folder where your model is located in AWS S3. Hence the value movie-clf.

response = ai_core_client.object_store_secrets.create(
    resource_group = 'tf-demo',
    type = "S3",
    name = "my-s3-secret1",
    path_prefix = "movie-clf",
    endpoint = "s3-eu-central-1.amazonaws.com", # Change this
    bucket = "asd-11111111-2222-3333-4444-55555555555", # Change this
    region = "eu-central-1", # Change this
    data = {
        "AWS_ACCESS_KEY_ID": "ASDFASDFASDFASDF", # Change this
        "AWS_SECRET_ACCESS_KEY": "asdfASDFqwerQWERasdfQWER" # Change this
    }
)

print(response.__dict__)

You should see the following response:

Note that depending on your region, your AWS endpoint syntax may differ from the example above. In the event of an error, try this step again with alternative syntax. For available syntaxes, please see the AWS documentation

Save the following executable file in your local system:

In the executable, ensure the following.

1. Ensure that your resourcePlan is set to infer.s. This will enable the GPU node in deployment. Find all the available resource plans here.

2. Replace docker-registry-secret with the name of your docker registry secret. You can create and use multiple docker secrets in SAP AI Core. See how to create docker registry secret.

3. Set your docker image URL.

Save your executable.

You will create a folder in your GitHub repository connected SAP AI Core, where you will store the workflow (executable). You will then register this folder as an Application in SAP AI Core to enable syncing of the workflow as an executable.

You can create multiple Applications in SAP AI Core for syncing multiple folders. This helps you organize separate folders for storing workflows YAML files for separate use cases.

1. Create a folder named tutorial-tf-text-clf in your GitHub repository connected to SAP AI Core. Place the following workflows inside it:

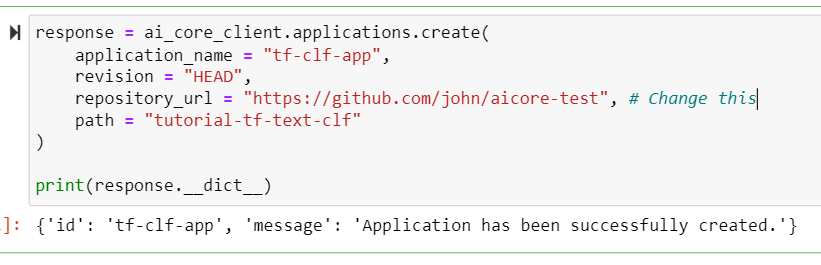

2. Edit and execute the code below to create an Application and sync the folder tutorial-tf-text-clf.

   PYTHON[4] Copy

   response = ai_core_client.applications.create(
   application_name = "tf-clf-app",
   revision = "HEAD",
   repository_url = "https://github.com/YOUR_GITHUB_USERNAME/YOUR_REPO_NAME", # Change this
   path = "tutorial-tf-text-clf"
   )

   print(response.__dict__)

You should then see:

![img](https://raw.githubusercontent.com/sap-tutorials/Tutorials/master/tutorials/ai-core-tensorflow-byod/img/acs/6_2.png)

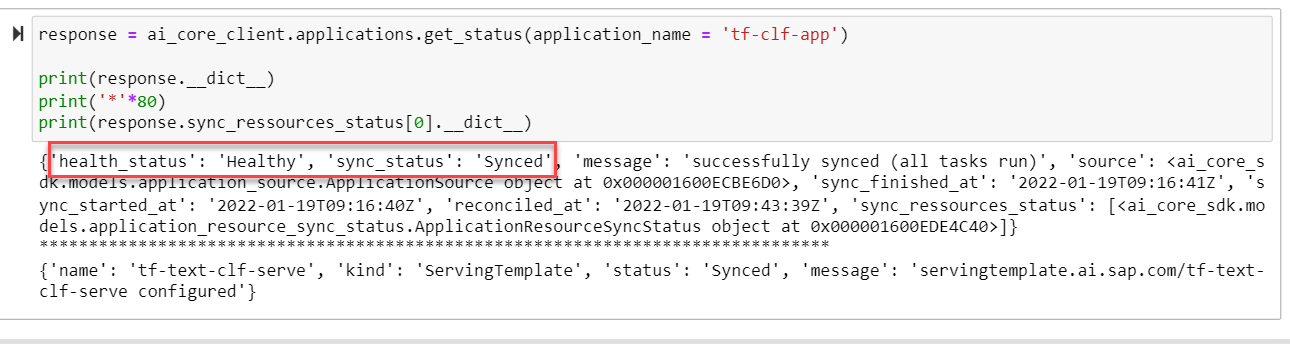

3. Verify your workflow sync status, using the following code:

   Python Copy

   response = ai_core_client.applications.get_status(application_name = 'tf-clf-app')

   print(response.__dict__)
   print('*'*80)
   print(response.sync_ressources_status[0].__dict__)

You should then see:

![img](https://raw.githubusercontent.com/sap-tutorials/Tutorials/master/tutorials/ai-core-tensorflow-byod/img/acs/6_3.png)

After your workflows are synced, your Scenario will be automatically created in SAP AI Core. The name and ID of the scenario will be same as the one mentioned in your workflows. After The syncing, your workflow will be recognized as an executable.

An artifact is a reference to your model files located in AWS S3.

Use the object store secret created in the previous step in the URL field. The URL takes the form ai://YOUR_OBJECT_STORE_SECERT_NAME/path/to/files. The YOUR_OBJECT_STORE_SECERT_NAME value will be replaced by the path_prefix you had used in that object store secret.

The value of scenario_id should not already exist in SAP AI Core at this step, but the following code will not create any errors.

Execute the following:

from ai_core_sdk.models import Artifact

response = ai_core_client.artifact.create(
    resource_group = 'tf-demo',
    name = "tf-txt-clf-model",
    kind = Artifact.Kind.MODEL,
    url = "ai://my-s3-secret1/model",
    scenario_id = "tf-text-clf",
    description = "Review Classification Model"
)

print(response.__dict__)

You should see the following response:

Important: Make a note of the ID. This ID uniquely identifies your artifact.

Download and save each of the following files to your local computer. These are the code files that you will upload as a docker image and use later for deployment in SAP AI Core.

After download your local directory should look like following:

A few important parts of the code are discussed here, which will help your understanding.

• To enable GPU usage by Tensorflow, your Dockerfile must contain following line. This will set all the required dependencies for the GPU. Read more on Tensorflow docker images

  Code Copy

  FROM tensorflow/tensorflow:latest-gpu



• To verify GPU availability, your code must contain the following lines. The output will appear in the logs of SAP AI Core during deployment.

import tensorflow as tf
import logging
logging.info(f"Num GPUs Available: {len(tf.config.list_physical_devices('GPU'))}")

![img](https://raw.githubusercontent.com/sap-tutorials/Tutorials/master/tutorials/ai-core-tensorflow-byod/img/enable-gpu-2.png)

Follow the steps to upload the files downloaded in step two as a docker image.

1. Login to your docker account using your terminal. If you incur an error, ensure your Docker Desktop is installed and running.

   BASH[1] Copy

   docker login <YOUR_DOCKER_REGISTRY> -u <YOUR_DOCKER_USERNAME>

   Type your password, it may not be visible but continue to type and press the Enter key.



2. Navigate to your downloaded files location and build docker the image using the code files that you downloaded.

   BASH[1] Copy

   docker build -t <YOUR_DOCKER_REGISTRY>/<YOUR_DOCKER_USERNAME>/movie-review-clf-serve:0.0.1 .

   Don’t forget the period (.) at the end of the command, this denotes that the location of the Dockerfile is the curent directory.

   WARNING The build process will require approximately 3 GBs of storage space.



3. Upload your docker image to the docker cloud.

   BASH[1] Copy

   docker push <YOUR_DOCKER_REGISTRY>/<YOUR_DOCKER_USERNAME>/movie-review-clf-serve:0.0.1



Here are the important pieces of your configuration:

• The scenario_id should contain the same value as in your executable.



• The executable_id is the name key of your executable.



• The artifact_id uses the value that was generated after you registered model files as artifacts.

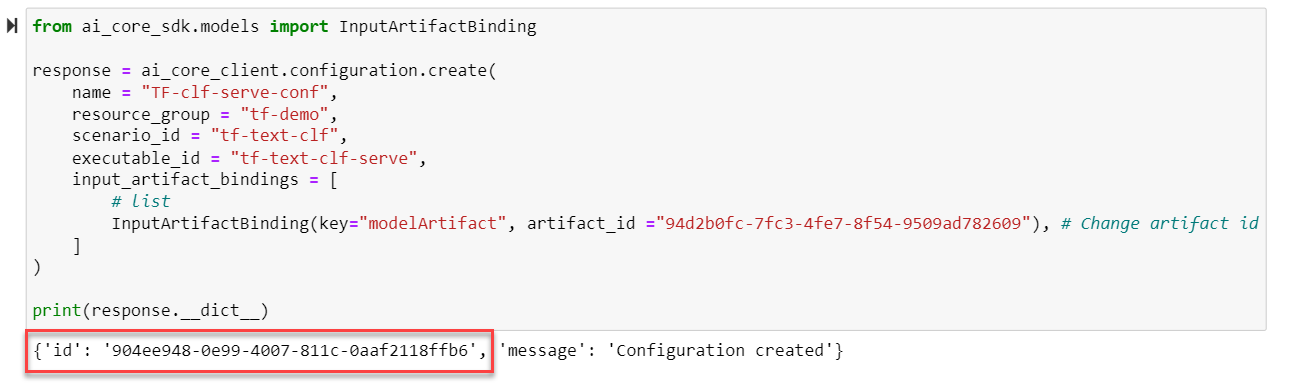

Copy the code below, and replace the artifact_id field value with your own ID, then execute the code.

from ai_core_sdk.models import InputArtifactBinding

response = ai_core_client.configuration.create(
    name = "TF-clf-serve-conf",
    resource_group = "tf-demo",
    scenario_id = "tf-text-clf",
    executable_id = "tf-text-clf-serve",
    input_artifact_bindings = [
        # list
        InputArtifactBinding(key="modelArtifact", artifact_id ="94d2b0fc-7fc3-4fe7-8f54-9509ad782609"), # Change artifact id
    ]
)

print(response.__dict__)

You should then see:

Important: Note down the ID generated. This is your unique configuration identification.

Replace the configuration_id field value with the ID from the previous step. Execute the code.

response = ai_core_client.deployment.create(
    resource_group = "tf-demo",
    configuration_id = "904ee948-0e99-4007-811c-0aaf2118ffb6" # change this
)
print(response.__dict__)

You should then see:

Important: Note the unique ID generated of your deployment. You may create multiple deployments using the same configuration ID, each of which will have s unique endpoint.

Replace with the deployment_id field value with the ID from previous step and execute your code.

response = ai_core_client.deployment.get(
    resource_group = "tf-demo",
    deployment_id = "d9dc9250d05f7df8" # Change this
)

print("Status: ", response.status)
print('*'*80)
print(response.__dict__)

This may take 2-3 minutes to change state from UNKNOWN > PENDING > RUNNING.

You should then see:

Replace the deployment_id field value with your deployment ID and execute the code.

The custom_endpoint is generated by the code pieces inside of the docker image. This is customizable and you can add multiple routes for different purposes.

query_text = "The story after the interval had predictable twist-turns."
deployment_id = "d9dc9250d05f7df8" # Change this

custom_endpoint = "/v1/predict"

prediction = ai_core_client.rest_client.post(
    resource_group = "tf-demo",
    path = "/inference/deployments/" + deployment_id + custom_endpoint,
    body = {
        "text": query_text
    }
)

print(prediction)

You should then see something like:

Your prediction will be either a positive or negative along with a confidence value between 0 and 1. This prediction return structure is dependent of the code in docker the image. You can change this as per your requirement.

In the preceding steps, you saw that your docker code has the following lines, which will log the number of GPUs that the Tensorflow package recognizes during deployment.

Now query the deployment logs to view its output. Replace with the deployment_id field value with your own ID, and execute.

response = ai_core_client.deployment.query_logs(
    resource_group = "tf-demo",
    deployment_id = "d9dc9250d05f7df8"
)

for log in response.data.result:
    print(log.msg)
    print("---")

The output will contain the log message on the number of GPUs available.

A running deployment incurs costs.

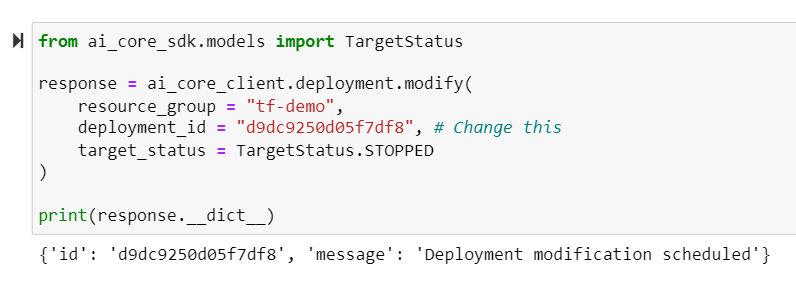

Replace with the deployment_id field value with your ID, and execute the code, to stop the deployment.

from ai_core_sdk.models import TargetStatus

response = ai_core_client.deployment.modify(
    resource_group = "tf-demo",
    deployment_id = "d9dc9250d05f7df8", # Change this
    target_status = TargetStatus.STOPPED
)

print(response.__dict__)

You should then see:
